Sky RC Multifunction LCD Program Box Module
Enhance Your RC Experience with the SkyRC Program Box

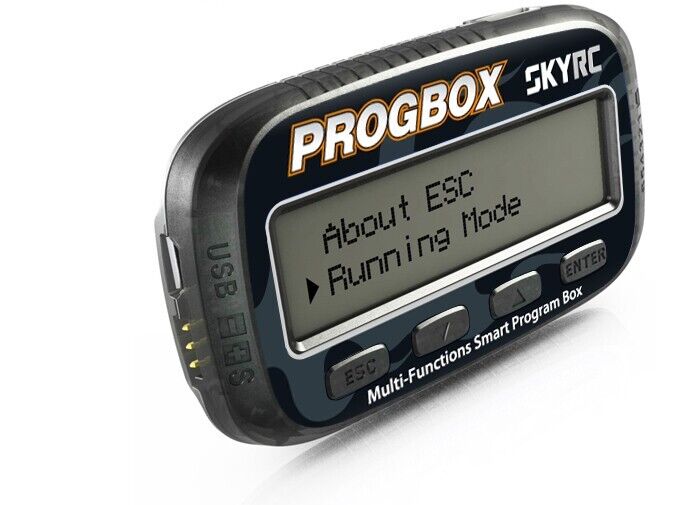

The SkyRC Program Box is a cutting-edge electronic device, driven by a high-performance microprocessor, designed to simplify the precise programming of your ESC. Compact and intuitive, this device boasts a 16-character, 2-line LCD screen and a user-friendly interface.
Key Features:
Easy to Operate: With four front-panel keys, programming your ESC becomes a breeze.

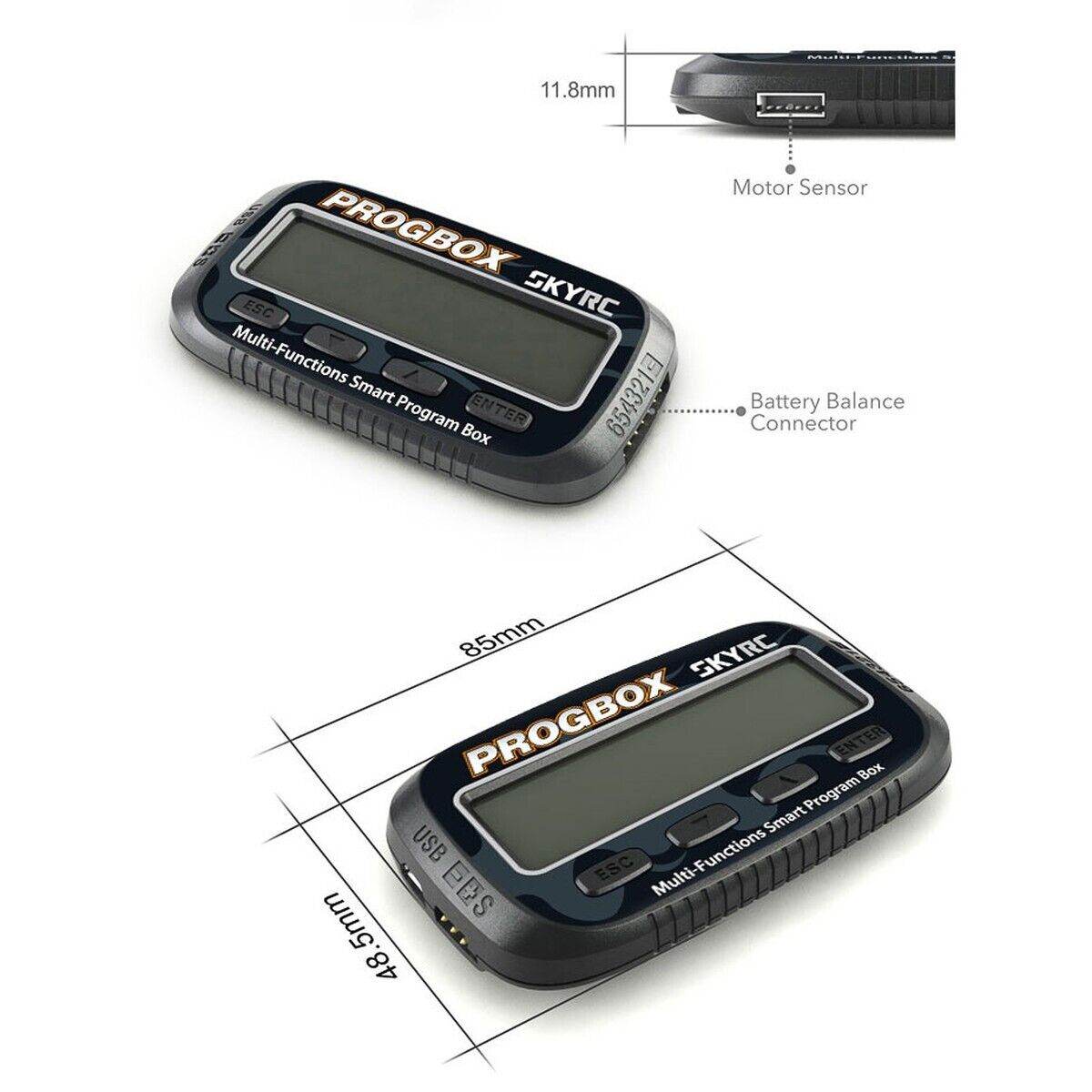

Versatile Ports: Equipped with motor sensor, USB, I/O connector, and battery balance connector ports.
On-the-Go Convenience: Say goodbye to lugging your PC or laptop around. Use this Program Box on-the-go to set ESC parameters with unparalleled precision.
SkyLINK Compatibility: It doubles as a SkyLINK USB adapter for easy PC ESC firmware updates and programming using SkyLINK software.
PPM Signal Monitor: Check receiver output voltage, radio PPM signal width, and frequency with ease.
Efficient Servo Testing: Verify servo function without powering on your transmitter. Gain insight into input voltage, servo position, and peak current.
Motor Info at Your Fingertips: Connect your motor, input settings, and instantly access data on motor KV, RPM, and input voltage.
Battery Health Check: Conveniently assess your LiPo battery's status, including total cell count, voltage per cell, and voltage disparities.
Specification:
Material: Plastic
Colour: Black
Input Voltage (ESC Setting): 6-10VDC
Input Current (ESC Setting): 500mA
Idle Current (ESC Setting): <20mA
Operating Temperature: 0-40ºC
Storage Temperature: -10 — 60 ºC
Operating Humidity: 10 - 90%RH
Storage Humidity: 20 - 75%RH
Protection Class: IP20
Weight: 40g
Includes:
SkyRC Program Box (1 pc)
