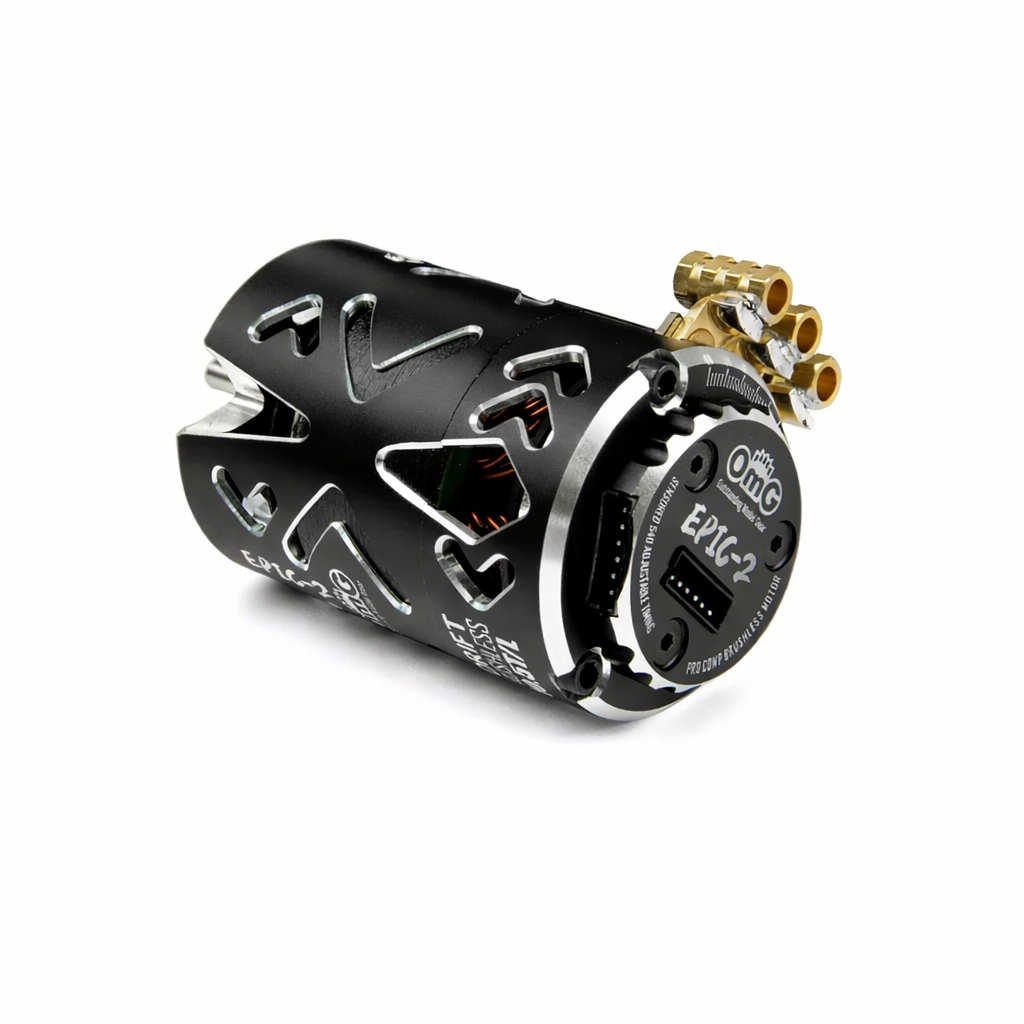

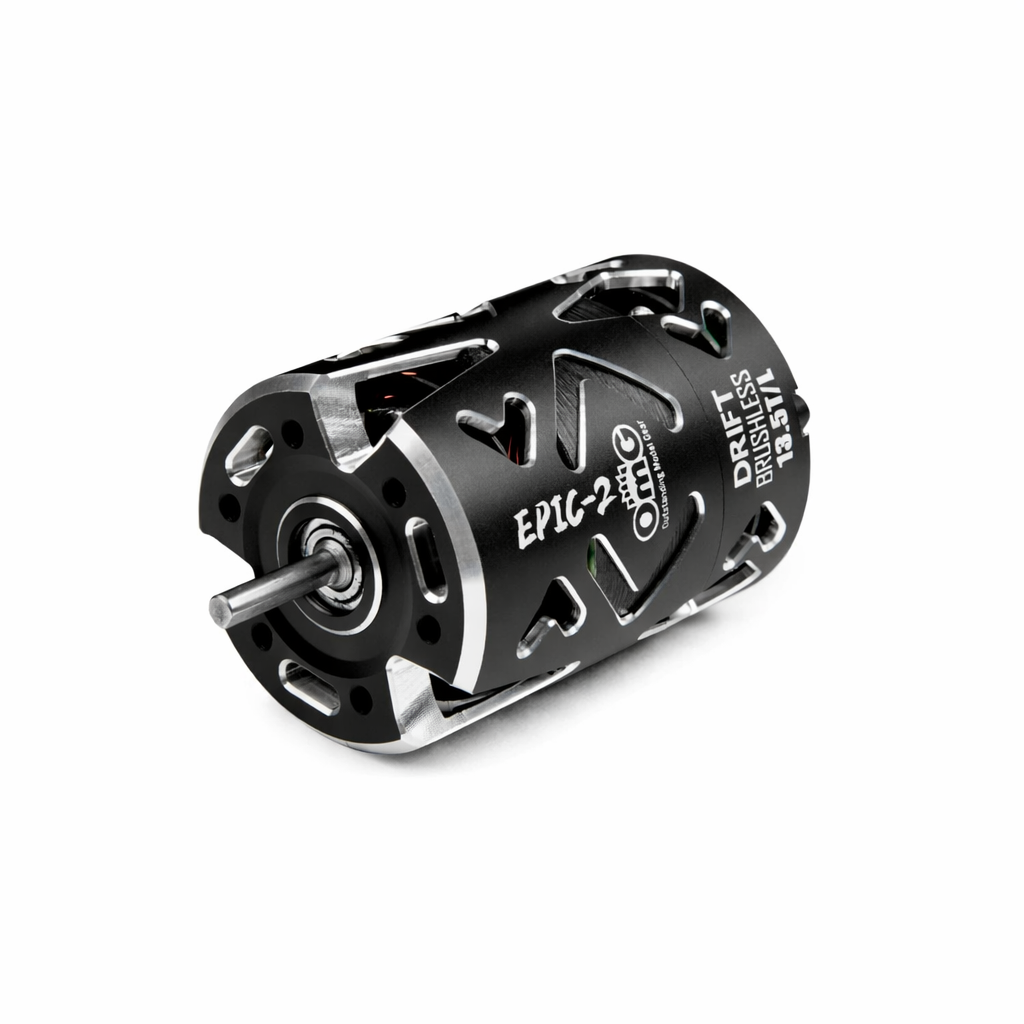

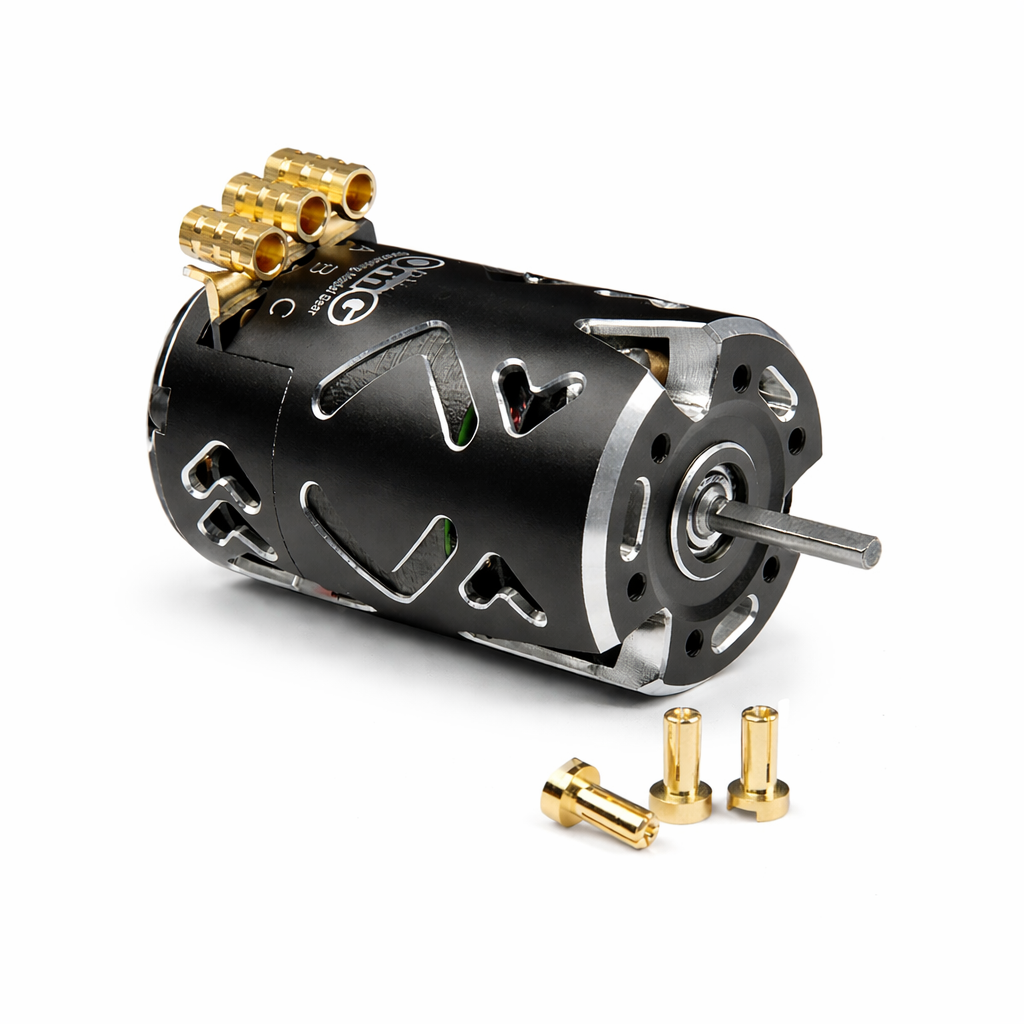

OMG Epic V2 13.5T Sensored Brushless Motor - Black

OMG Epic V2 13.5T Sensored Brushless Motor - Black

OMG EPIC-2 Is The Latest Sensored Brushless Timing-Adjustable Motor For 1/10 RC Drift Cars Produced By RC OMG.

Features:

• 0.2mm silicon steel stator laminations
• N38UH Neodymium magnet as rotor material
• Japan imported heat resistant ball bearings by NMB
• Special designed internal mounted fan
• Precise hall sensors
• High Purity copper windings
• 2pcs Sensor Ports

Product Specs:

• KV(RPM/Volt): 2955
• Motor Turns: 13.5T
• Applicable voltage (V): 7.4-11.1V (2-3S)
• No-load current: 1.1A
• Resistance: 0.0252
• Continuous current(A): 50A
• Continuous power(W): MAX420
• Efficiency (%): 93
• Poles: 2

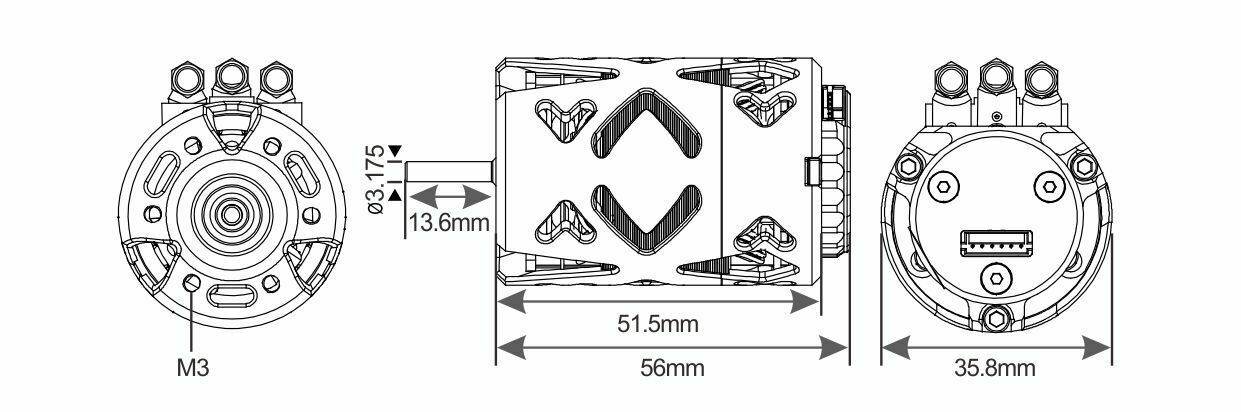

• Mounting hole depth: <5mm
• Rotor: 12.3x7.2x24.2mm
• Length of extend shaft: 14mm
• Diameter length(mm): 35.8x54.8mm
• Operational temperature: <150℃
• Shaft diameter(mm): 3.175
• Weight: 172g
