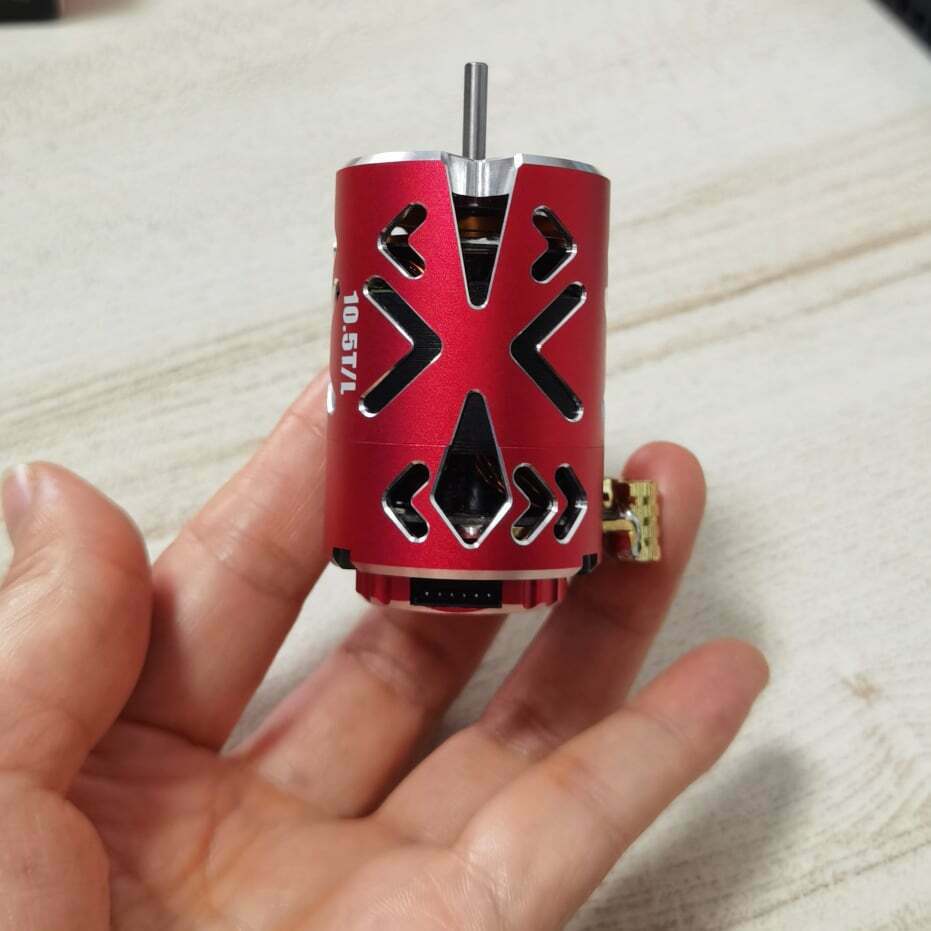

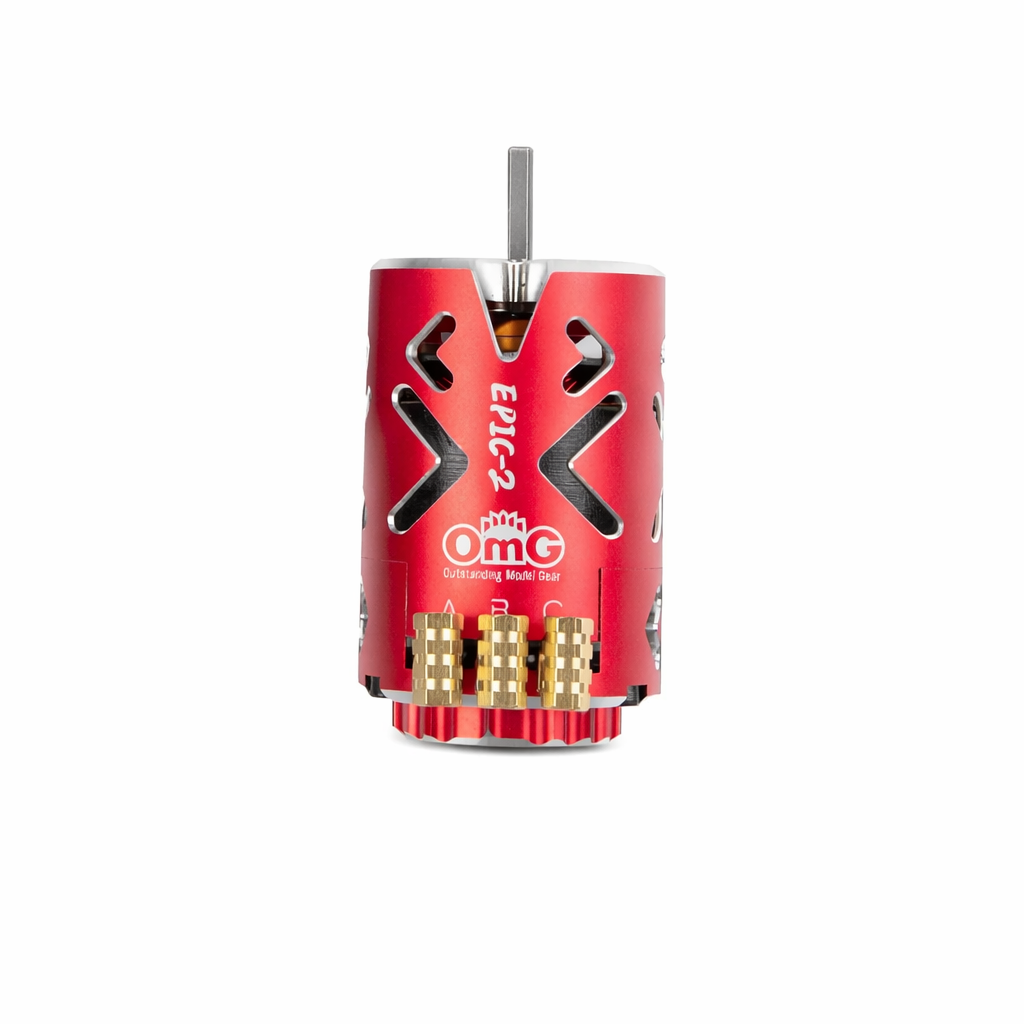

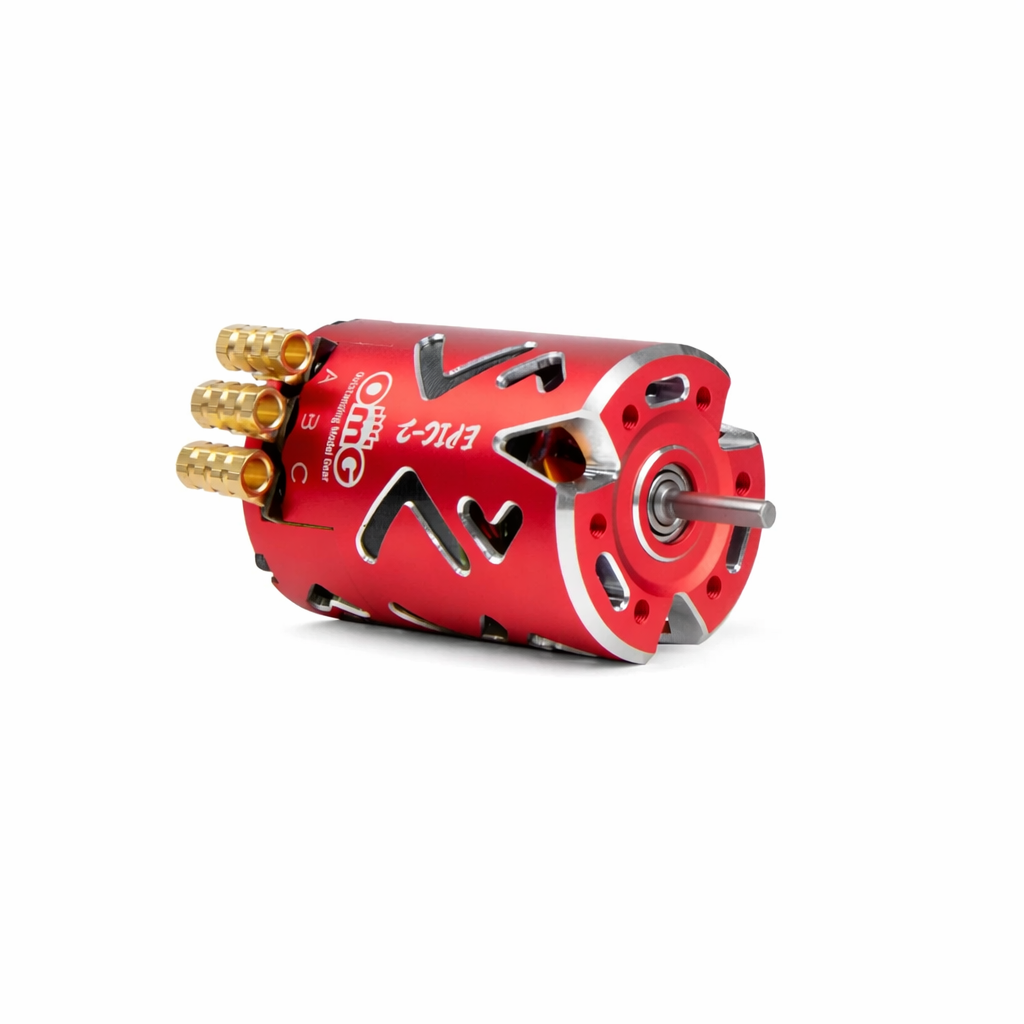

Upgrade your RC drift car with the RC OmG Epic V2 Brushless Motor, the latest in precision engineered, high performance motors. Designed for 1/10 scale RC drift cars, this 10.5T sensored motor delivers smooth, reliable power and features adjustable timing for optimal customization. Built with top tier components, this brushless RC Motor ensures maximum efficiency, durability, and performance on the track.
Features:
Colour: Red
0.2mm silicon steel stator laminations
N38UH Neodymium magnet as rotor material
Japan imported heat resistant ball bearings by NMB
Special designed internal mounted fan
Precise hall sensors
High Purity copper windings

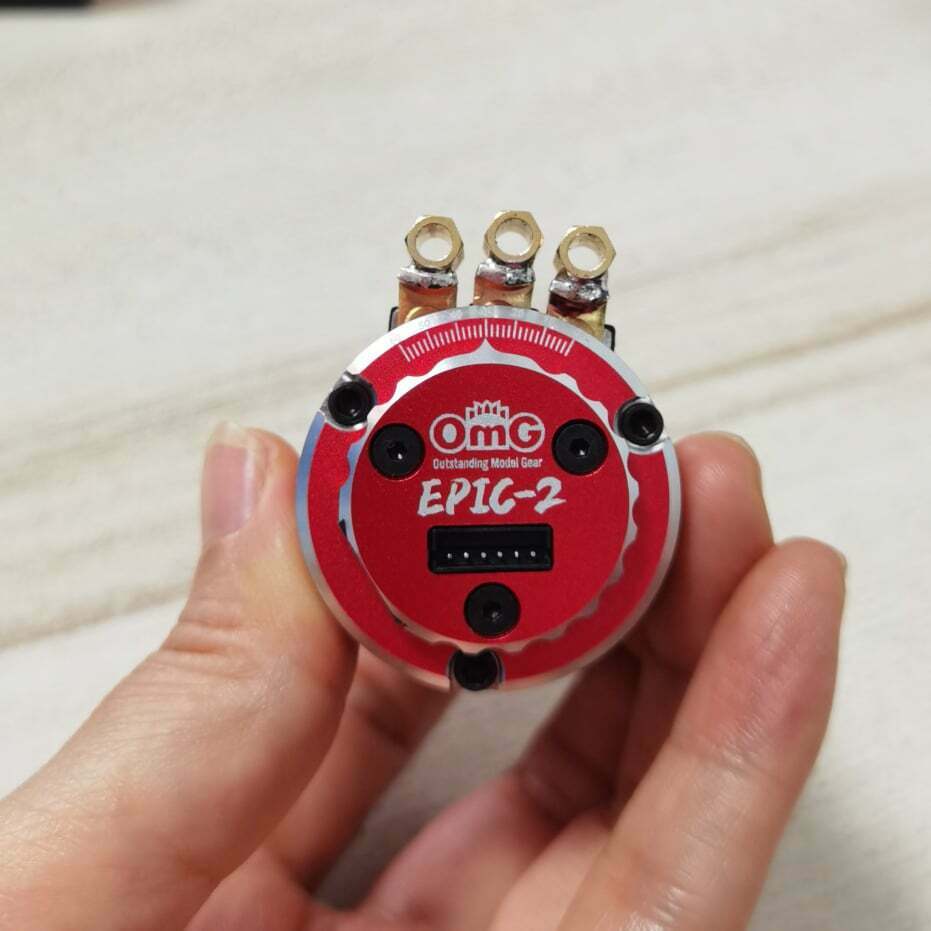

2pcs Sensor Ports
Product Specs:
KV(RPM/Volt): 3750 - 10.5Turn
Applicable voltage (V): 7.4-11.1V (2-3S)
No load current: 1.5A / Resistance: 0.0155
Continuous current(A): 65A
Continuous power(W): MAX550
Efficiency (%): 93 / Poles: 2
Mounting hole depth: <5mm

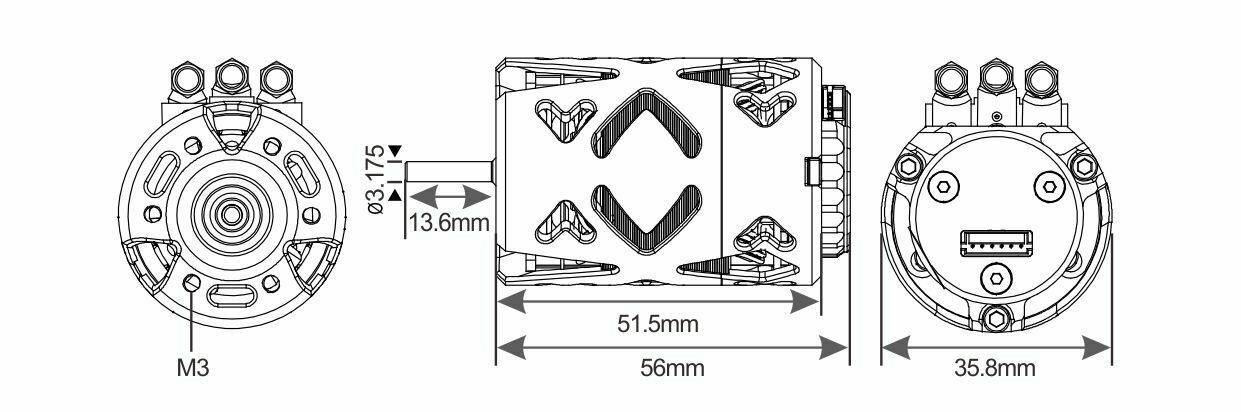

Rotor: 12.3x7.2x24.2mm
Length of extend shaft: 14mm
Diameter length(mm): 35.8x54.8mm
Operational temperature: <150℃
Shaft diameter(mm): 3.175
Weight: 172g

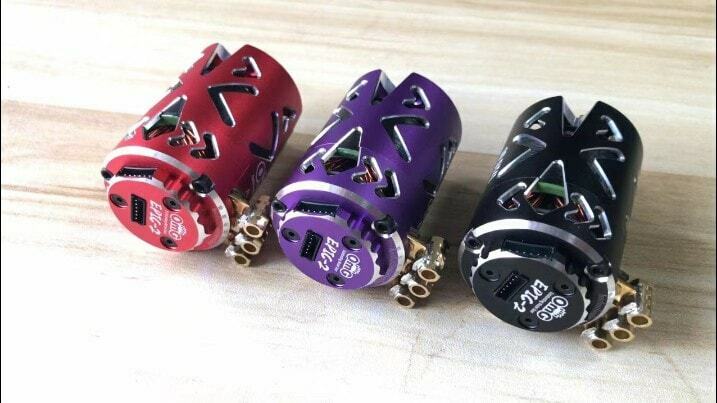

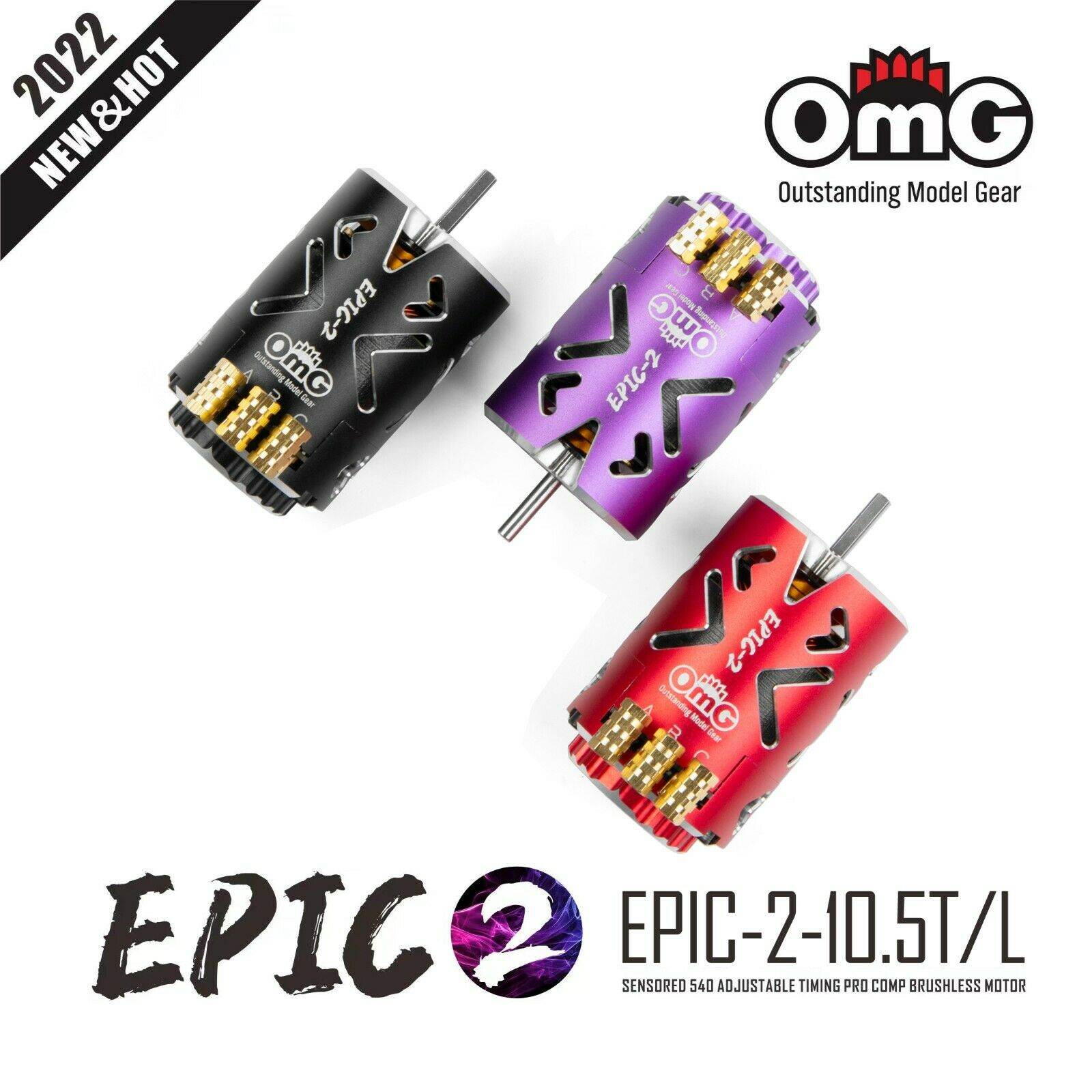

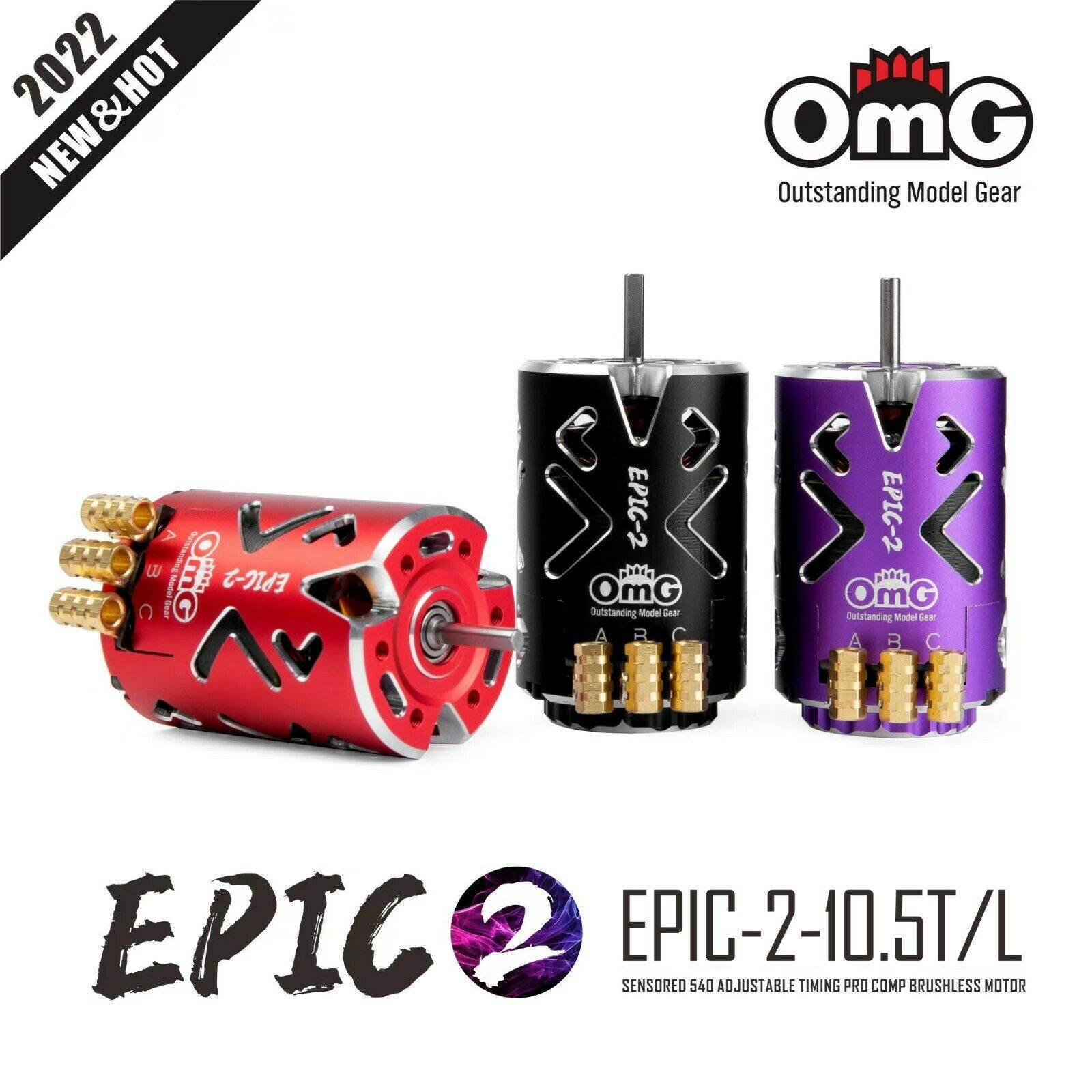

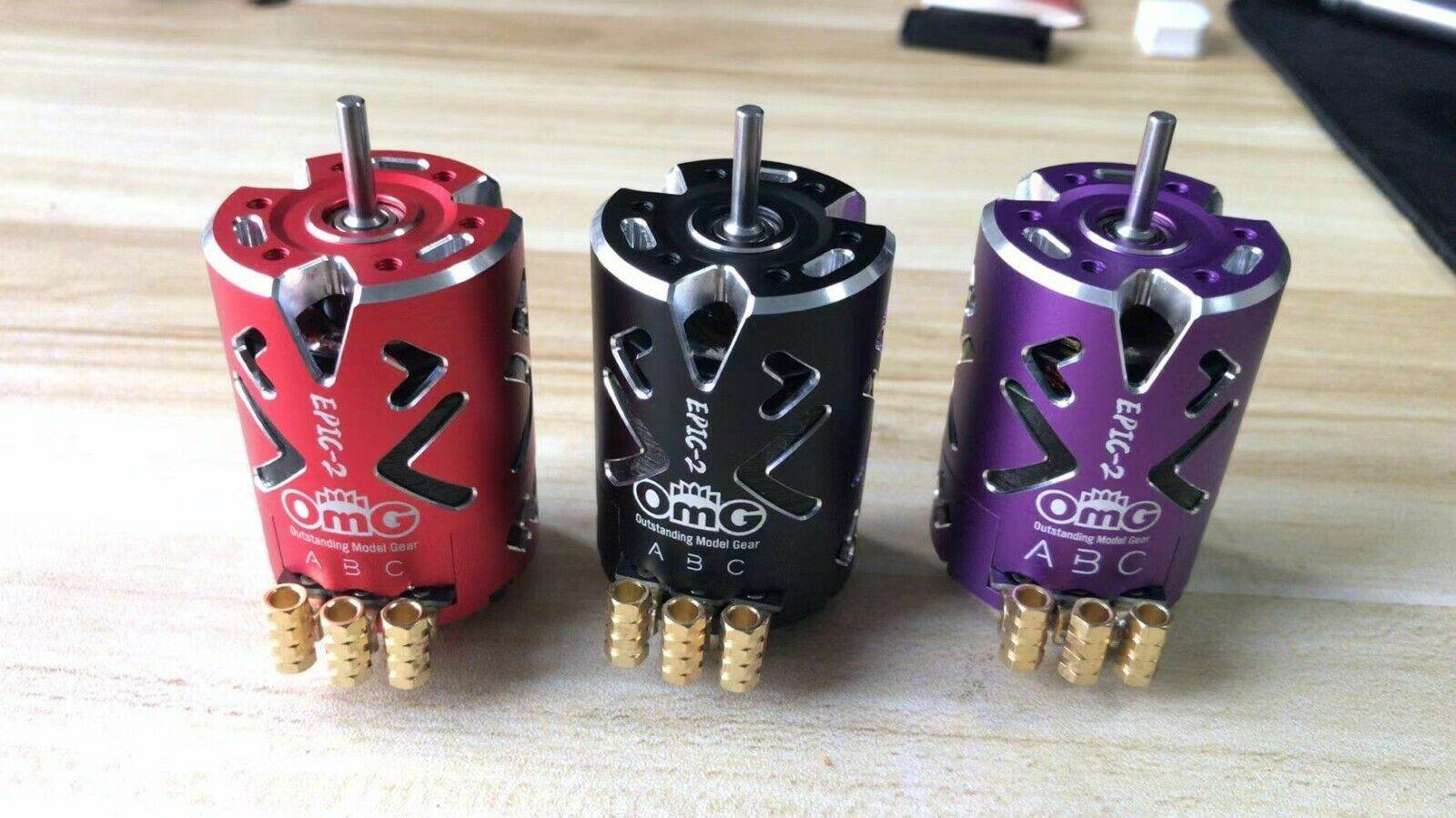

Please Note We Also Have These Available In Black & Purple.
