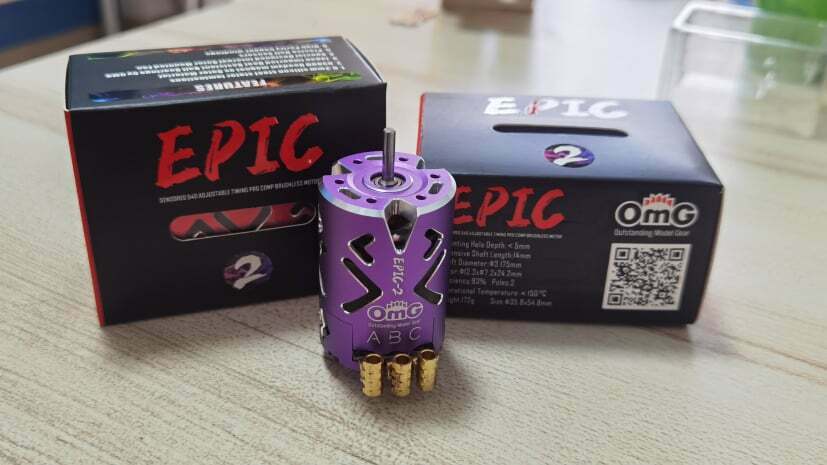

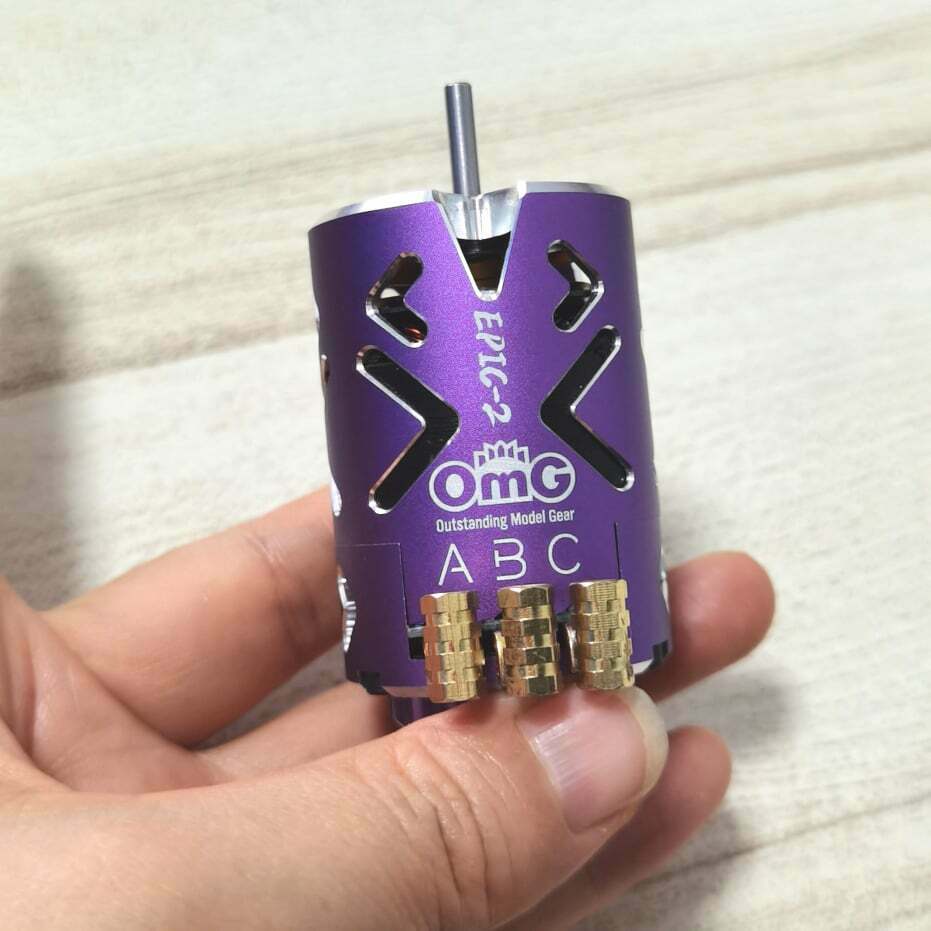

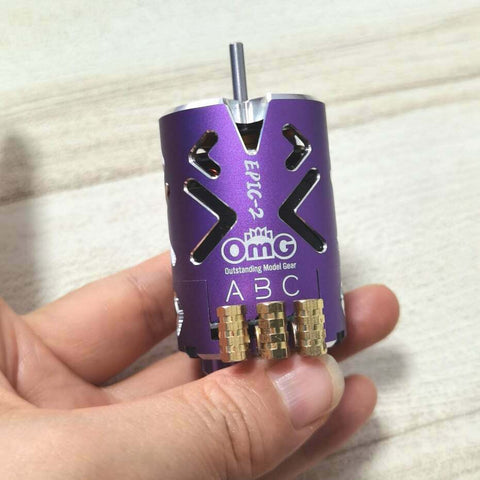

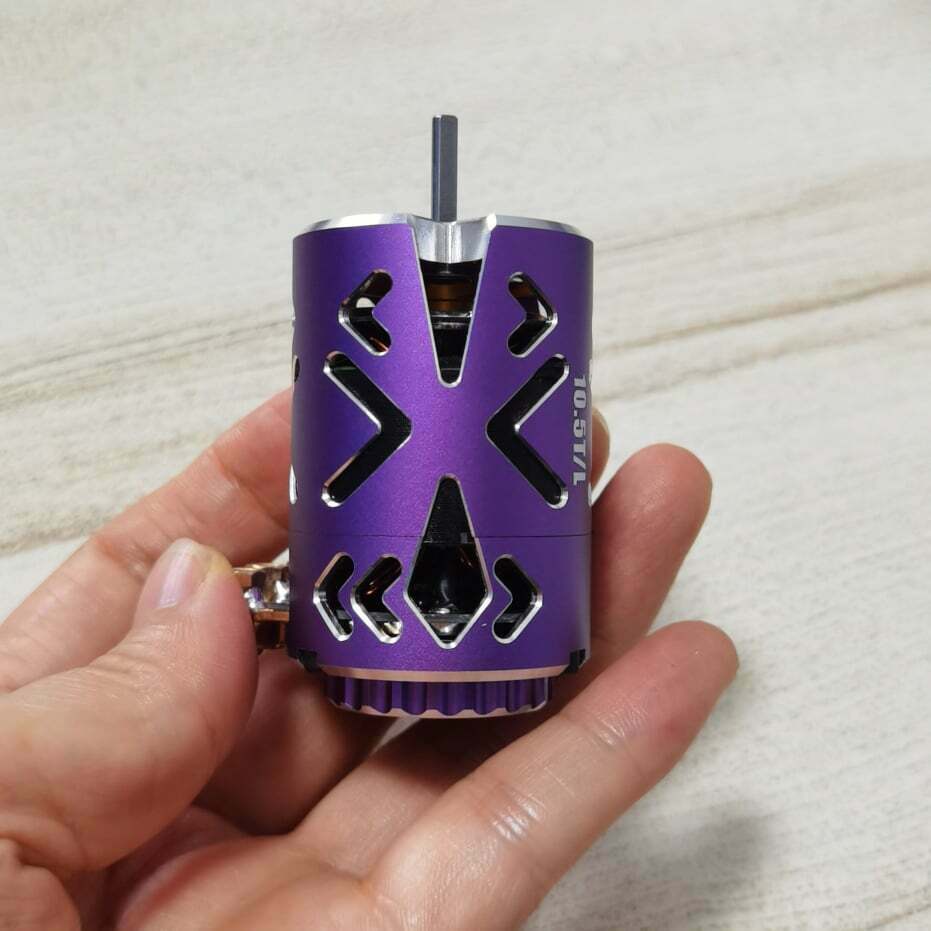

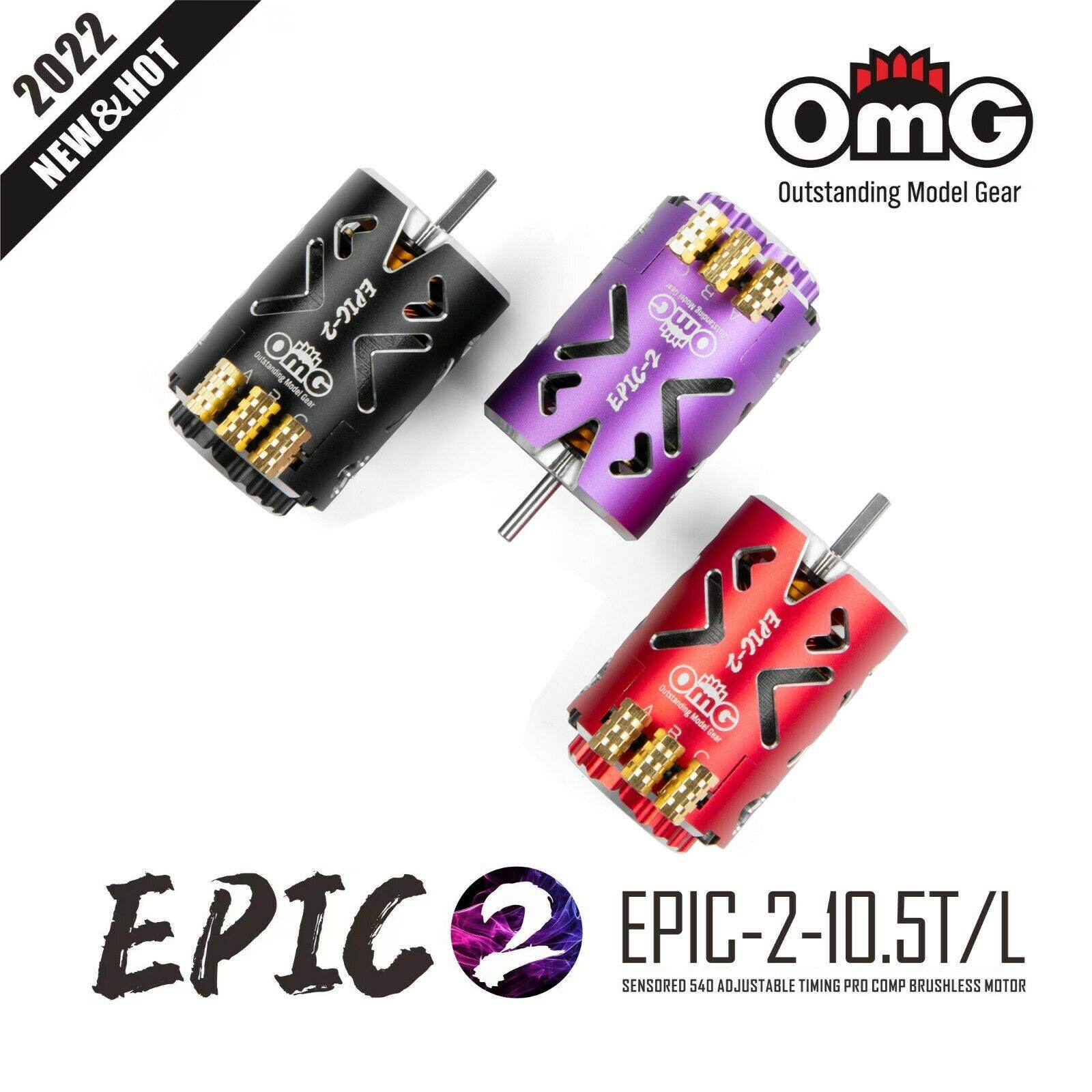

OMG Epic V2 10.5T Brushless Sensored Motor
OMG EPIC-2 Is The Latest Sensored Brushless Timing-Adjustable Motor For 1/10 RC Drift Cars Produced By RC OMG.
Features:
- Colour: Purple
- 0.2mm silicon steel stator laminations
- N38UH Neodymium magnet as rotor material
- Japan imported heat resistant ball bearings by NMB
- Special designed internal mounted fan
- Precise hall sensors
- High Purity copper windings

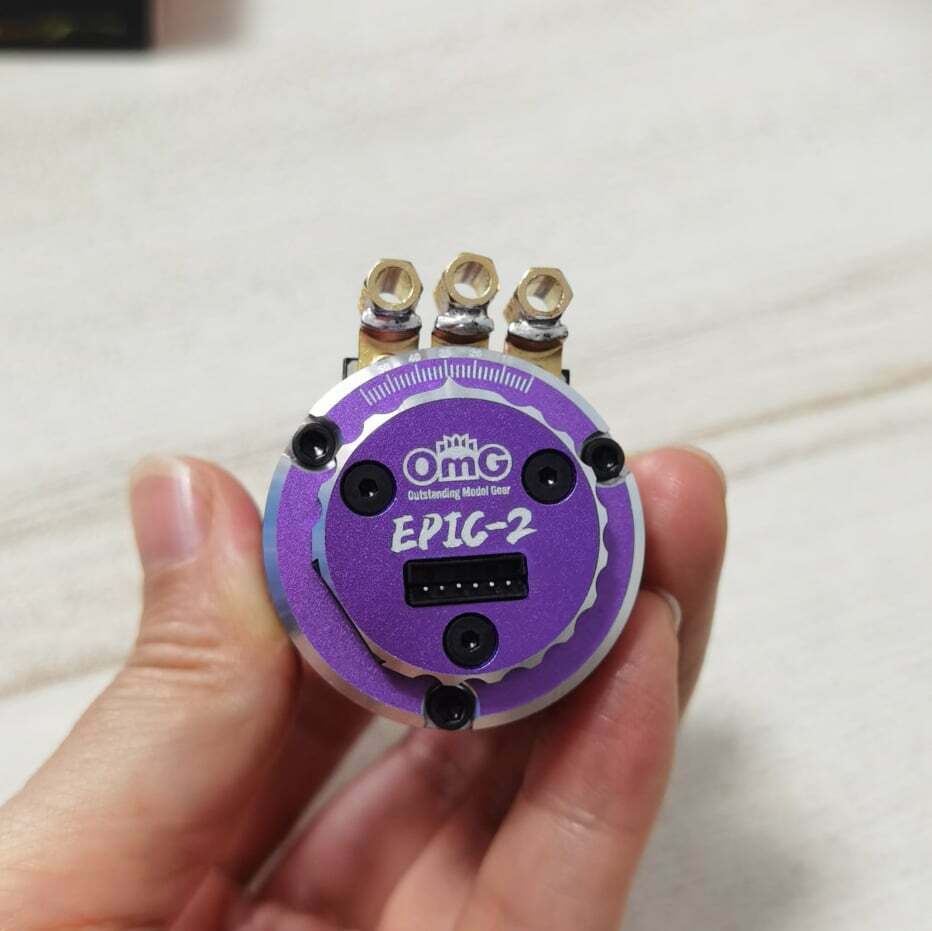

- 2pcs Sensor Ports
Product Specs:
- KV(RPM/Volt): 3750 - 10.5Turn
- Applicable voltage (V): 7.4-11.1V (2-3S)
- No-load current: 1.5A / Resistance:0.0155
- Continuous current(A): 65A
- Continuous power(W): MAX550
- Efficiency (%): 93 / Poles: 2
- Mounting hole depth: <5mm

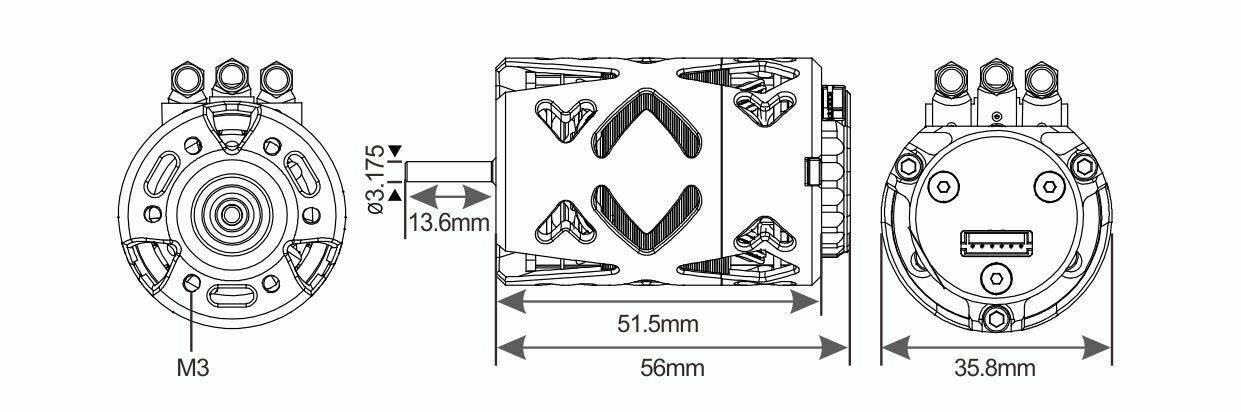

- Rotor: 12.3x7.2x24.2mm
- Length of extend shaft: 14mm
- Diameter length(mm): 35.8x54.8mm
- Operational temperature: <150℃
- Shaft diameter(mm): 3.175
- Weight: 172g

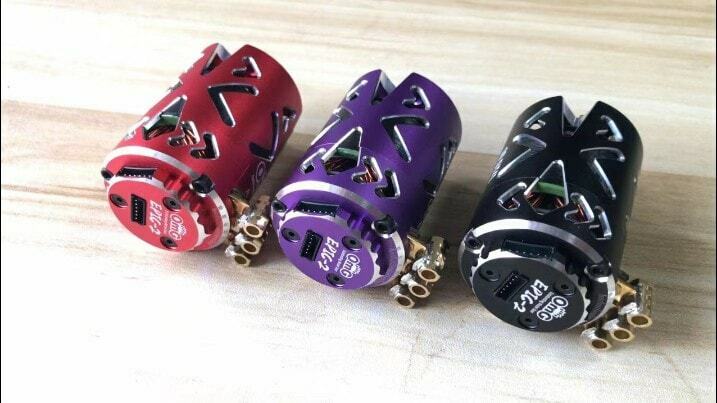

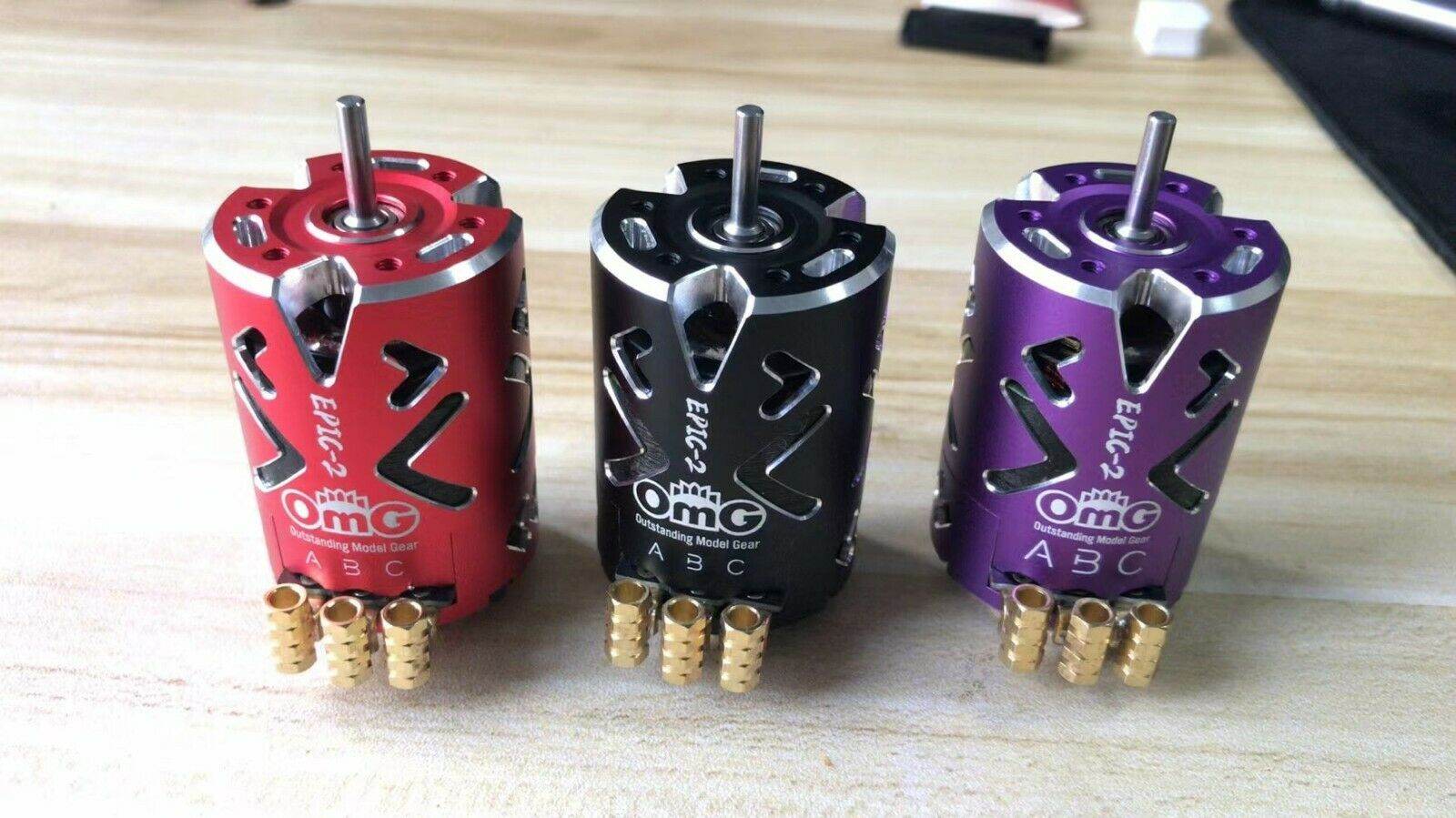

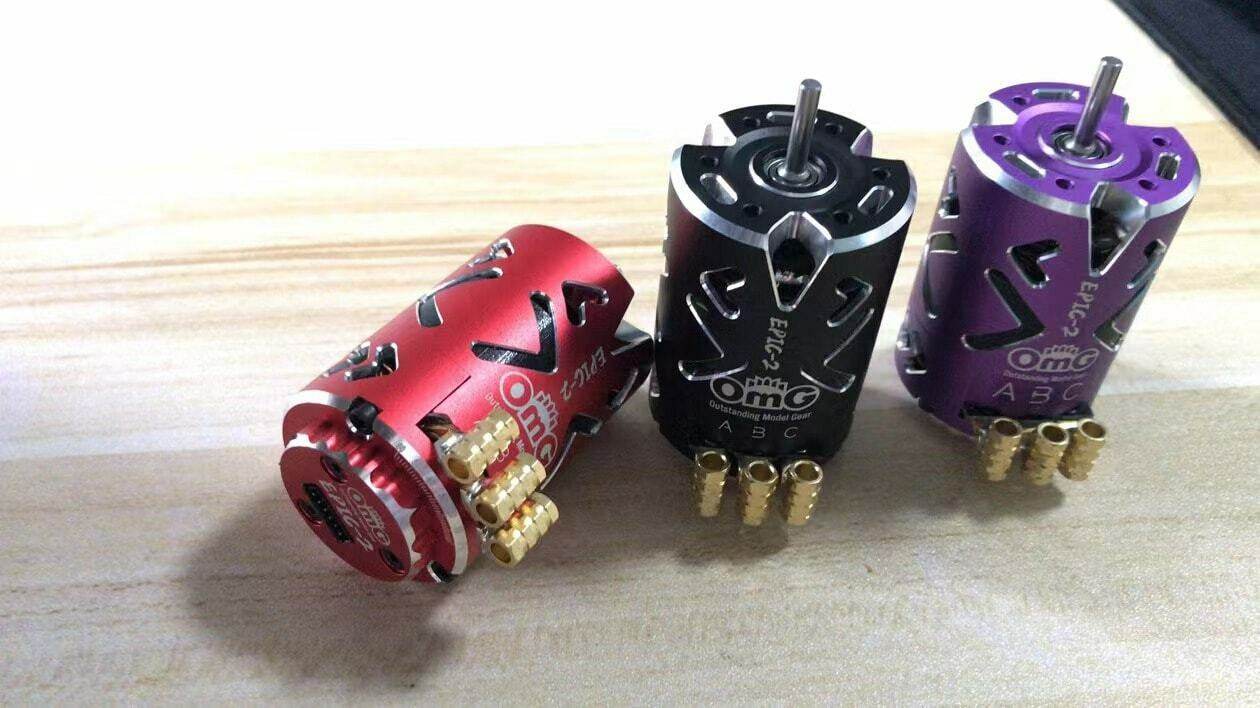

Please Note We Also Have These Available In Black & Red.
