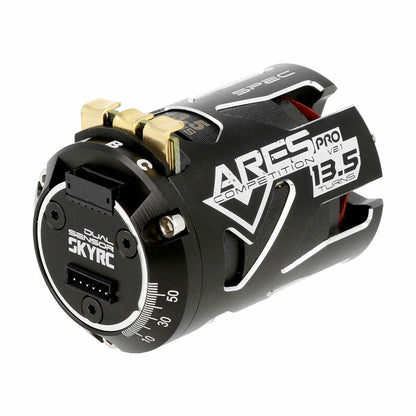

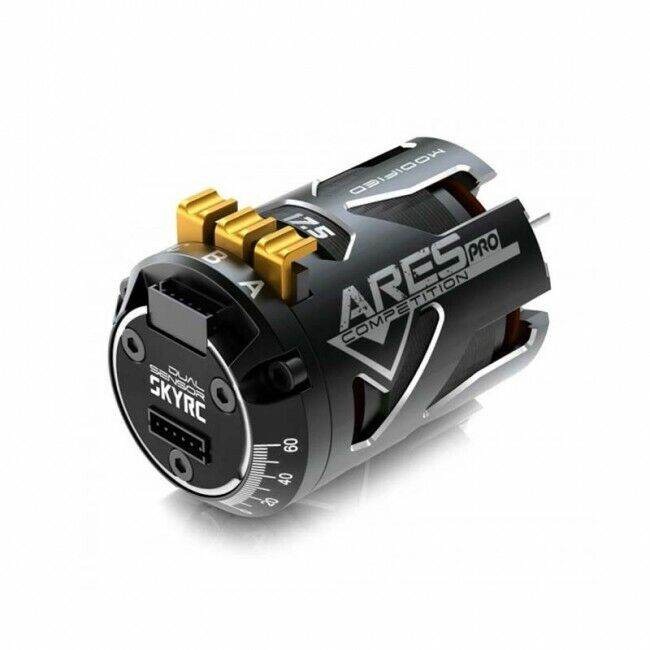

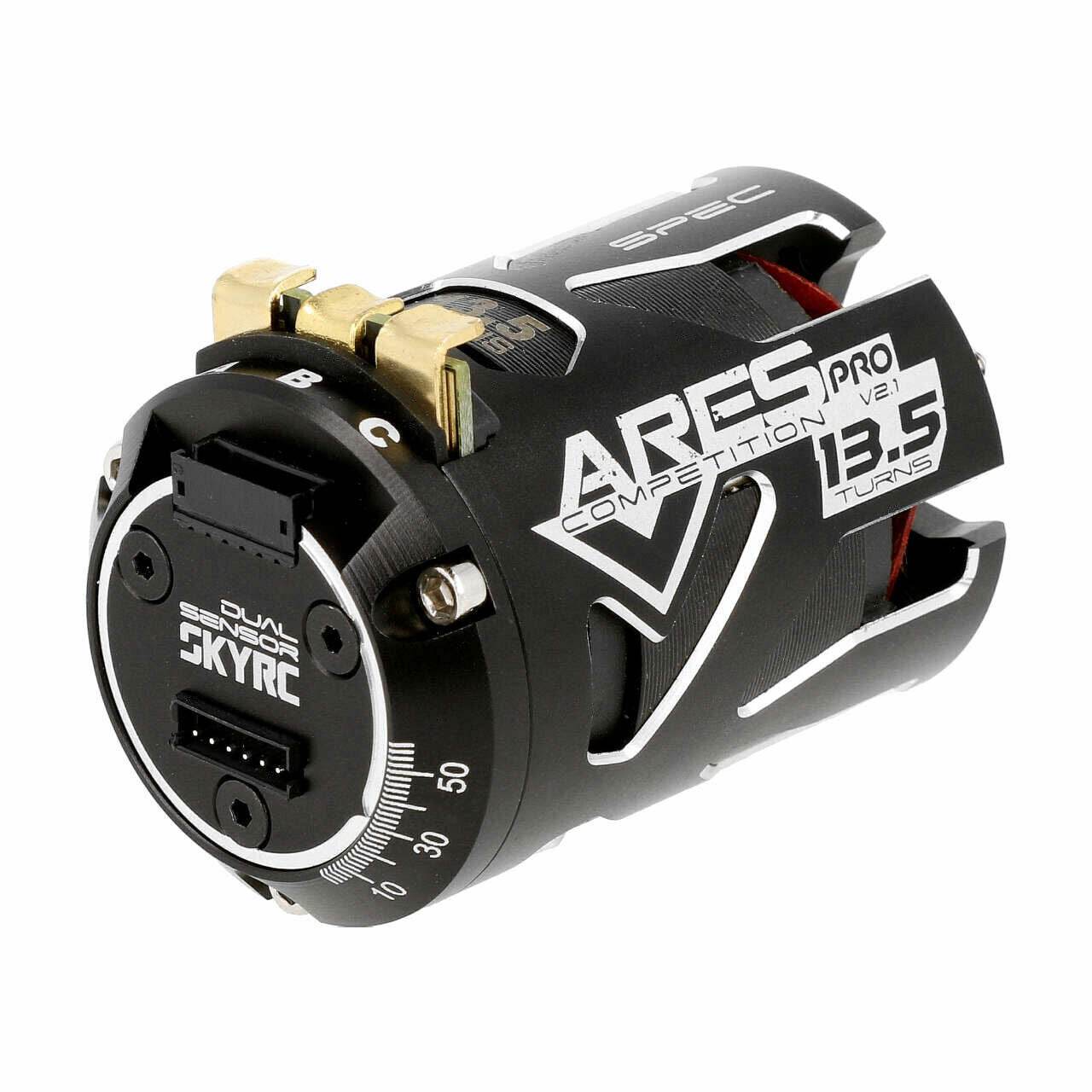

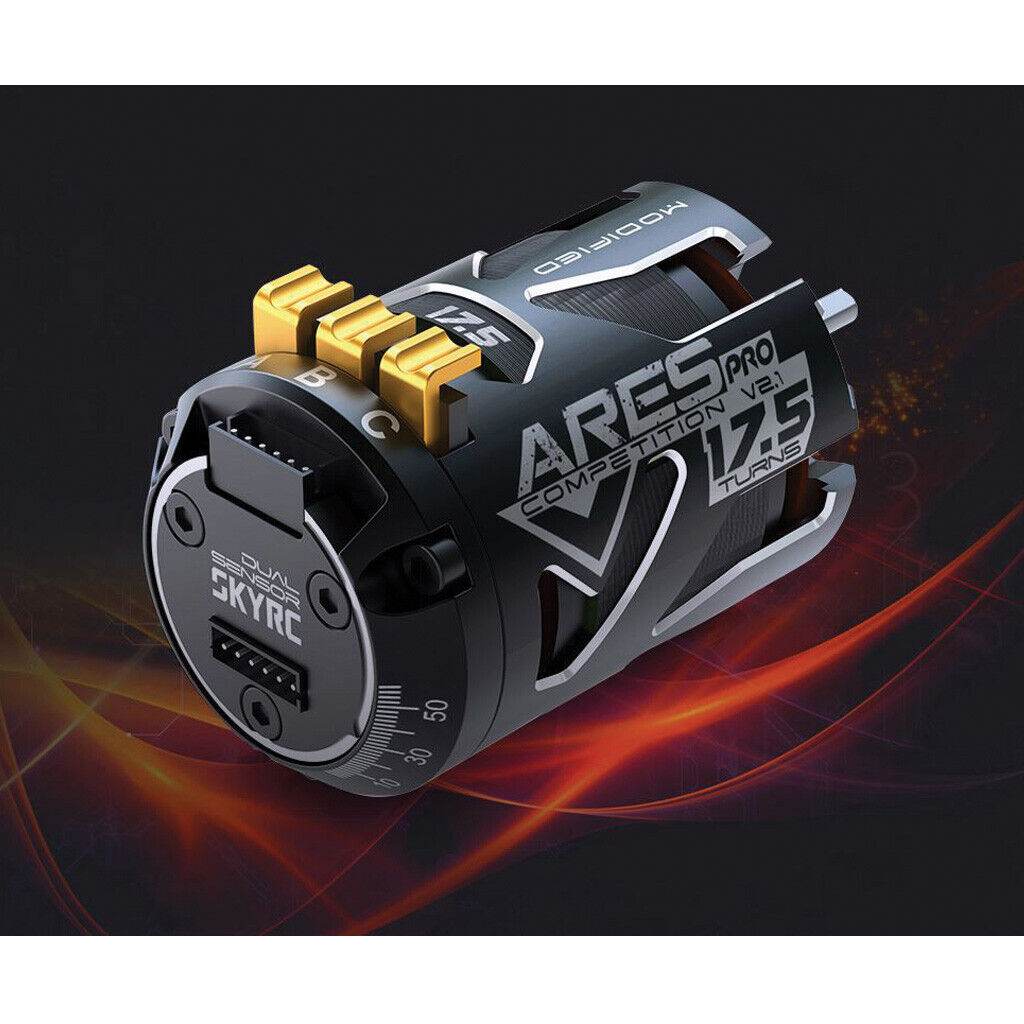

SkyRC Aries V2 Brushless 10.5T Dual Sensored Motor
- BRCA Approved.
- Effective ventilation.
- Extreme performance.
In a more dazzling shape featuring multiple cooling engraved fins for added heat-dissipating surface area, the motor is implementing a thermal silicone insulator between the end bell and stator to conduct the internal heat to the case with the temperate reduced efficiently, and power output multiplied!
Features
- Aluminium Shell with CNC Forming Process
- Pure Copper Coil with High Conductivity
- High Power Welding Pieces
- Replaceable Rotor
- Powerful Sintered Neodymium Magnet
- Dual Sensor Port
- Adjustable Timing
- Compatible with Any Sensored/Sensorless ESC

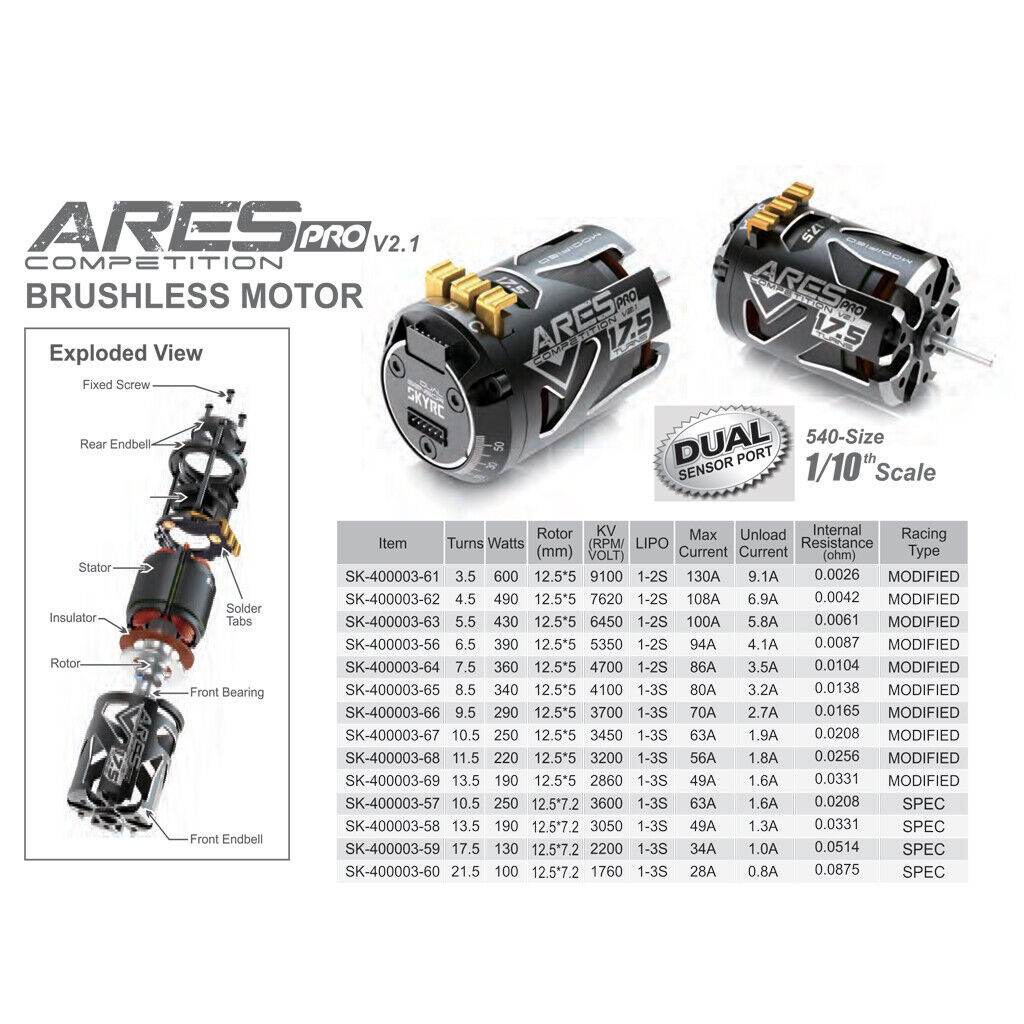

- Separable Structure
The daily cleaning and maintenance is a breeze thanks to the motor being designed in a separable structure. Consequently, the motor’s life is prolonged with the efficiency Improved. Working in parallel with a dynamically balanced high-precision rotor the built-in hall effect sensor ensures super motor linearity with hobbyists staying in total control of the racing car.
Adjustable Timing
By loosening three screws on the end bell and rotating the end bell counter to align timing marks on the end bell, timing can be adjusted to get the most out of the motor! (Do remember to tighten the screws on the end bell after that.) In this way, torque and efficiency can be changed to reach the best performance Increasing timing increases rpm and motor temps but decreases torque, efficiency, and runtime.
Works with mainstream models in the market
The ARES PRO V2 motor is compatible with TS120, TS150, TS160, TS50, and other ESCs. It has a wide range of vehicle compatibility and provides enough power for racing cars. The overall performance can be reached by using the motor in parallel with ESC providing accurate reliable and precise operability.
