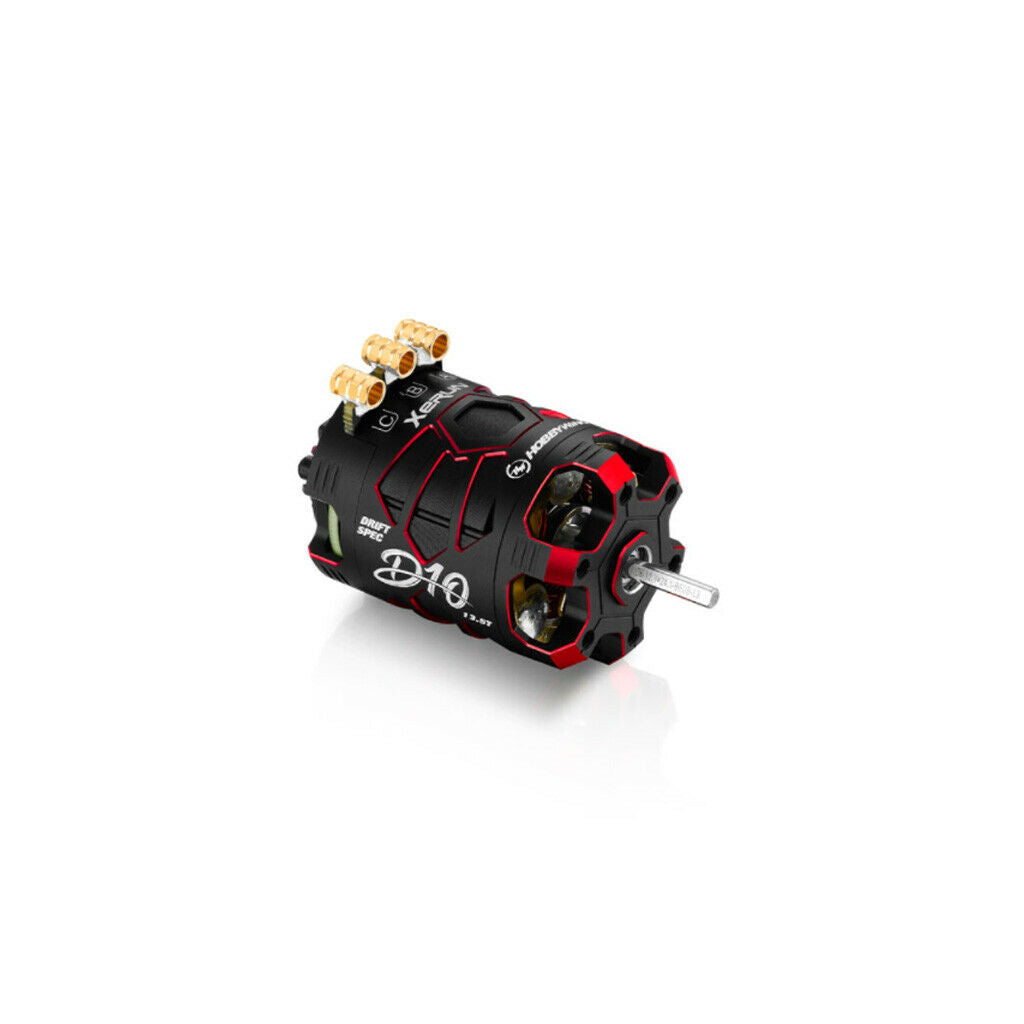

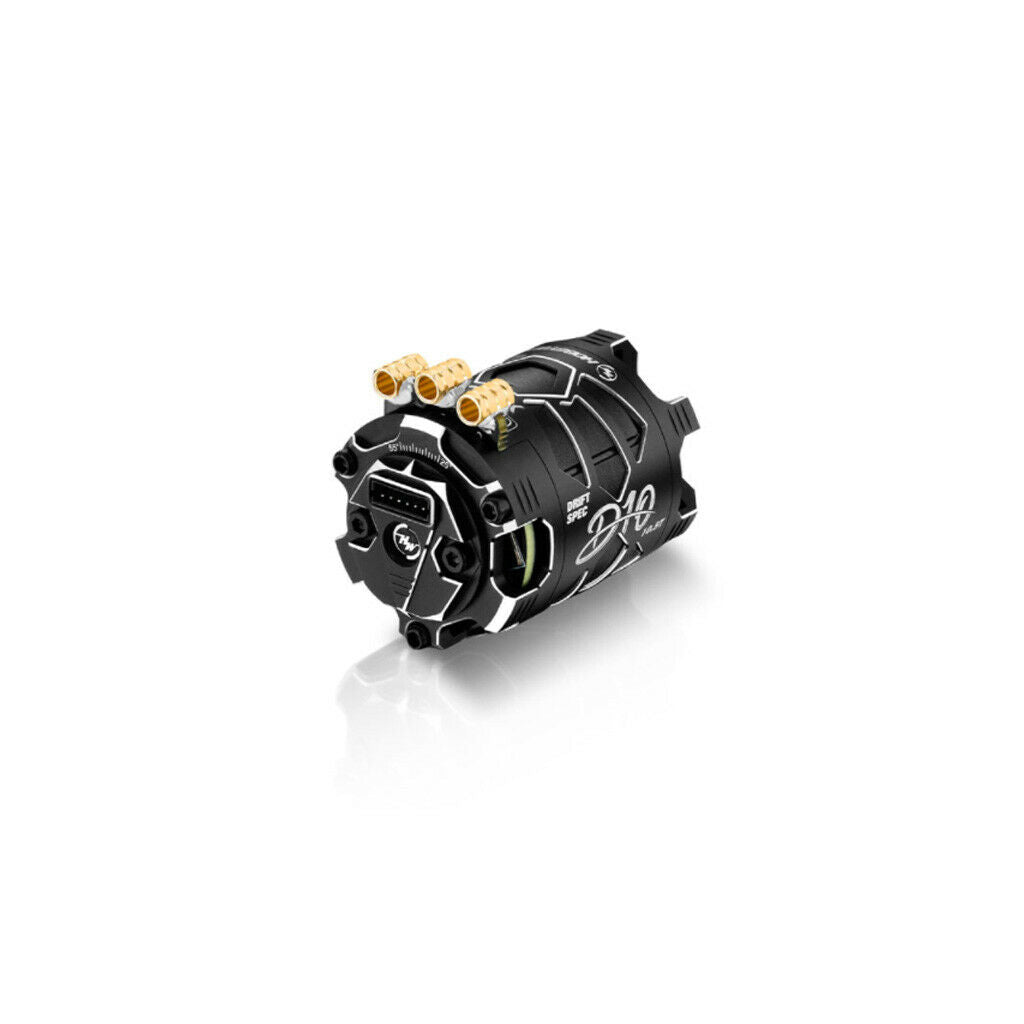

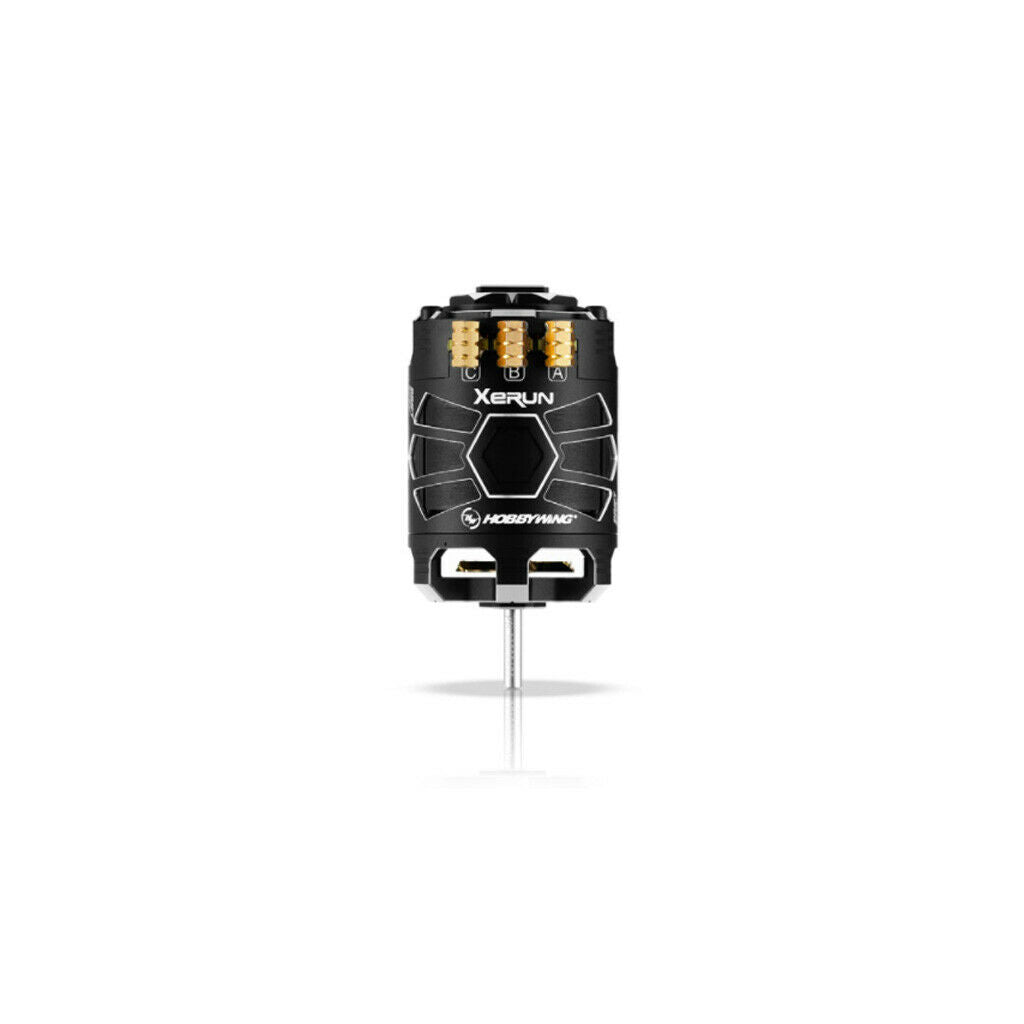

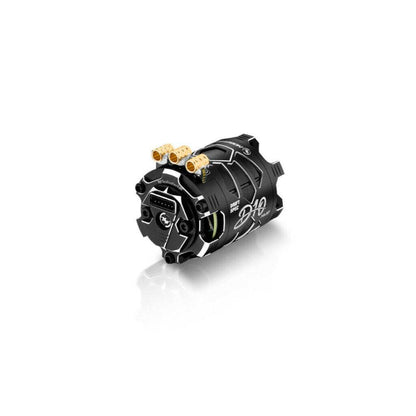

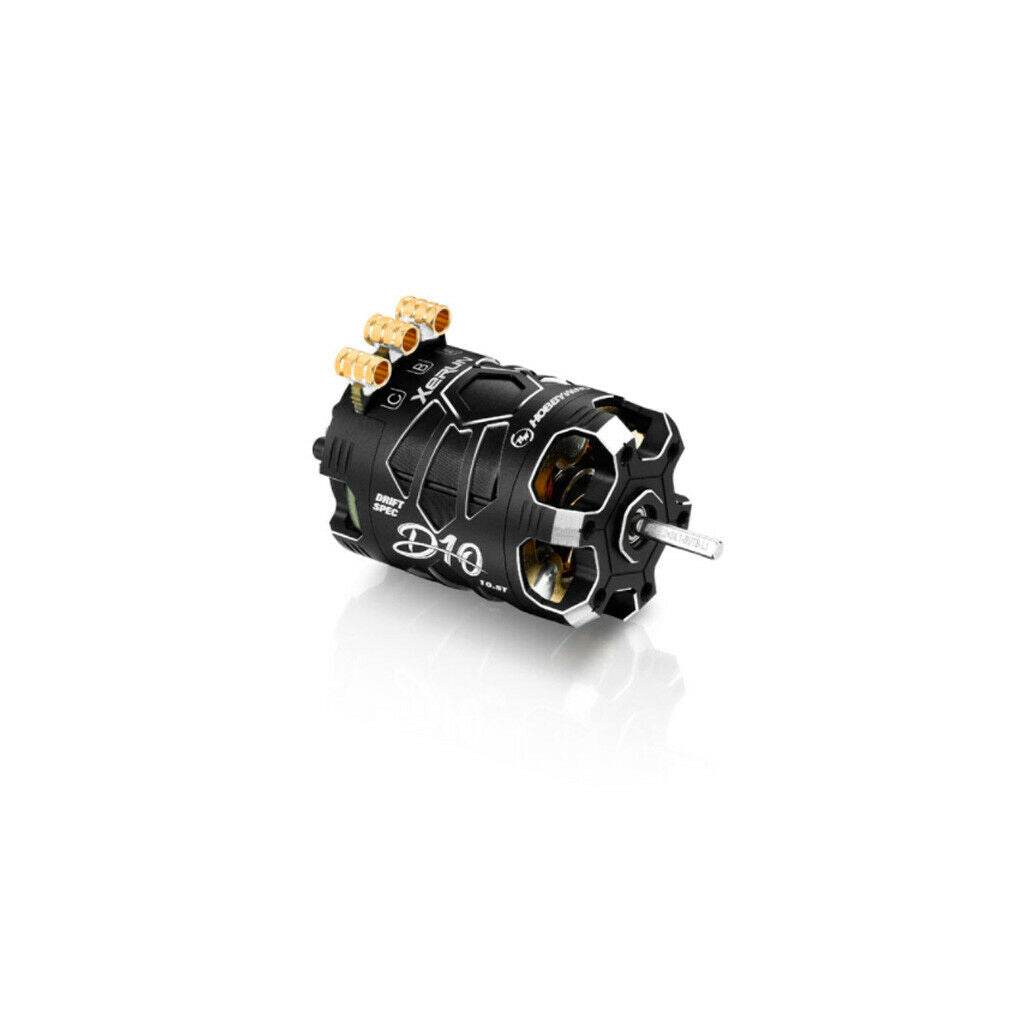

Hobbywing Xerun D10 10.5T Brushless Sensored 540 Motor

The Hobbywing Xerun D10 Brushless 10.5T Motor with adjustable timing is a premium RC drift car motor design for precision and power.

Elegantly designed for drift

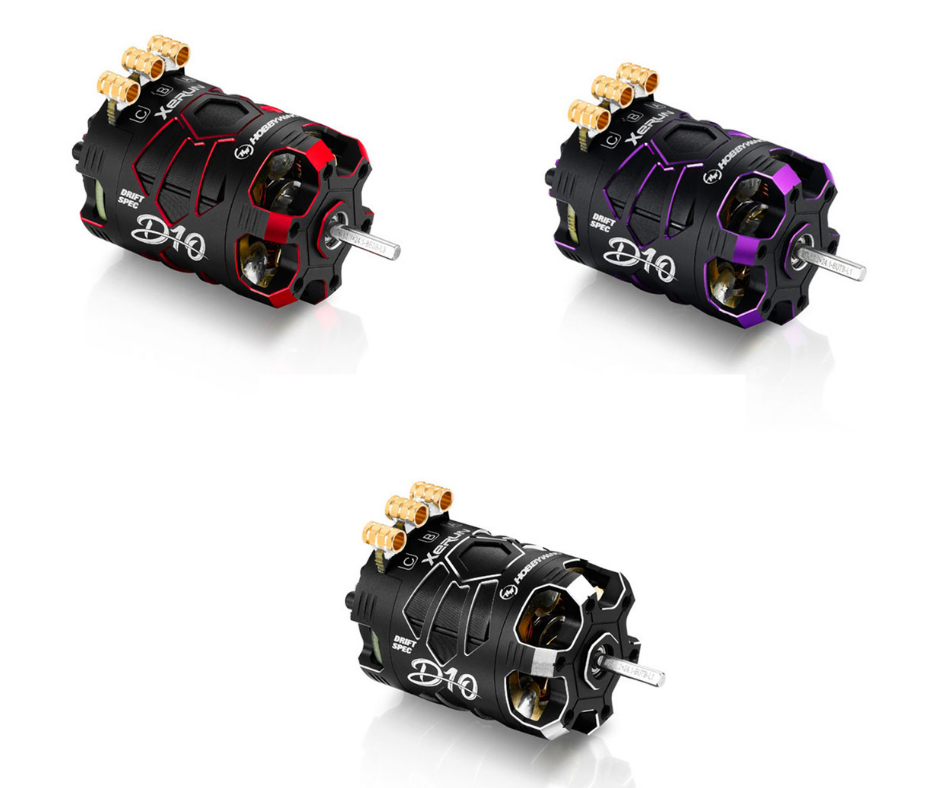

The Xerun D10 motors provides the ideal colours to perfectly match your drift machines.

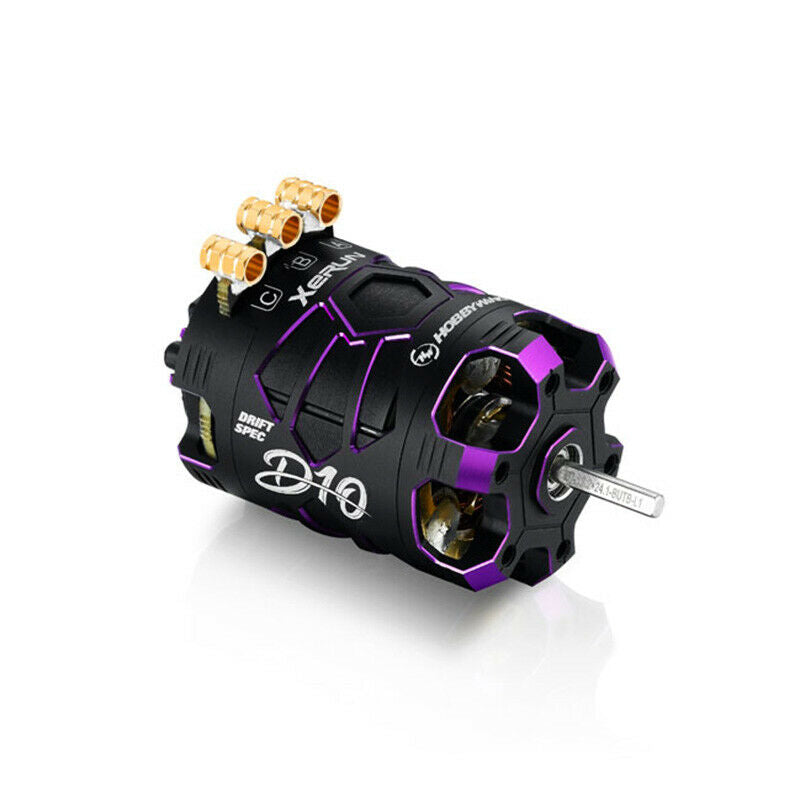

They are available in black, red and purple.

Banana plug-in quick-swap design
The motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors. 3.5mm male head is also included in the XD10 ESC.

New stator designed for drift applications
The new motor stator is optimized for drift and improves motor efficiency in drift applications. Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability while greatly improves motor efficiency.

Light weight
The 10.5T motor weighs approximately at 158g while the 13.5T is at 165g (including 3 gold insert weights). The lightweight motor allows user to easily tweak their weight bias on their car.

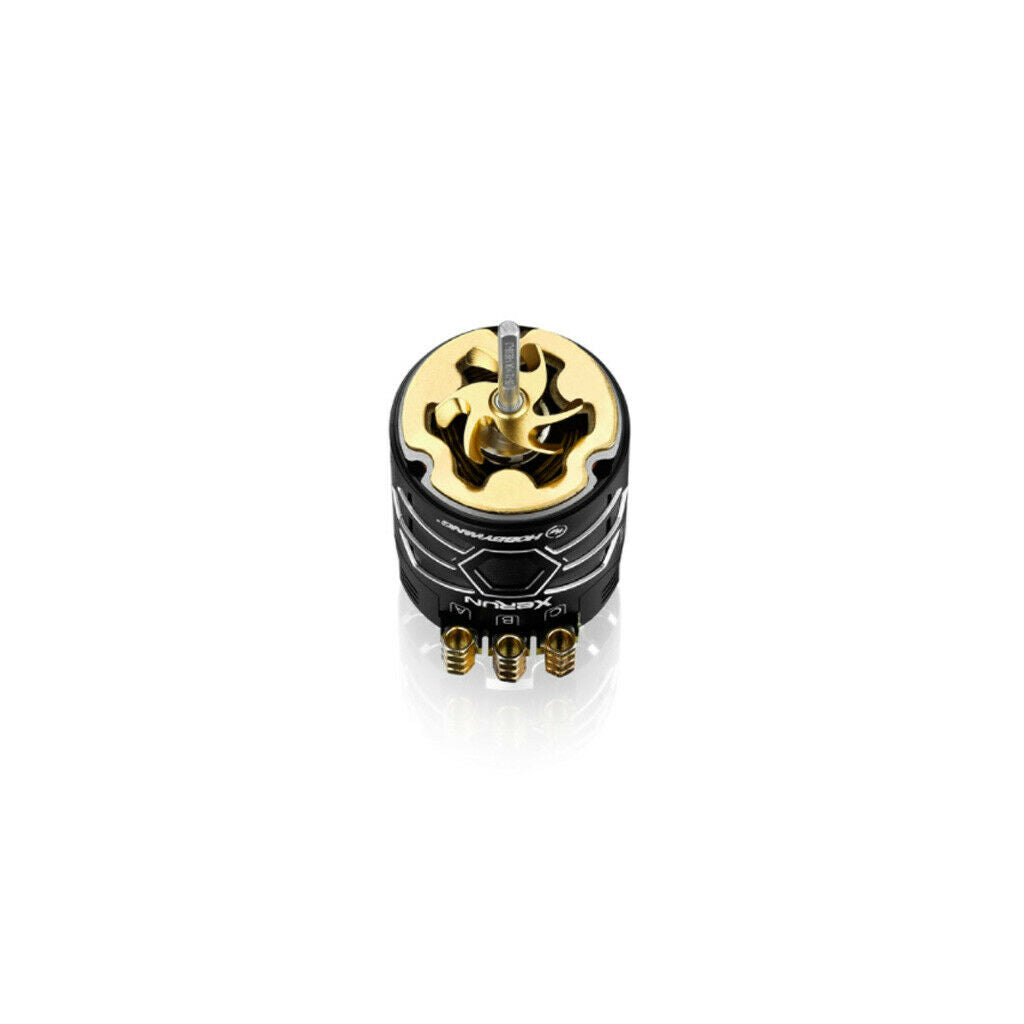

Equipped with fan rotor, providing great heat dissipation, power.
The special-shaped gold fan on the rotor heats the motor while making a pleasant sound, especially when Turbo is turned on.

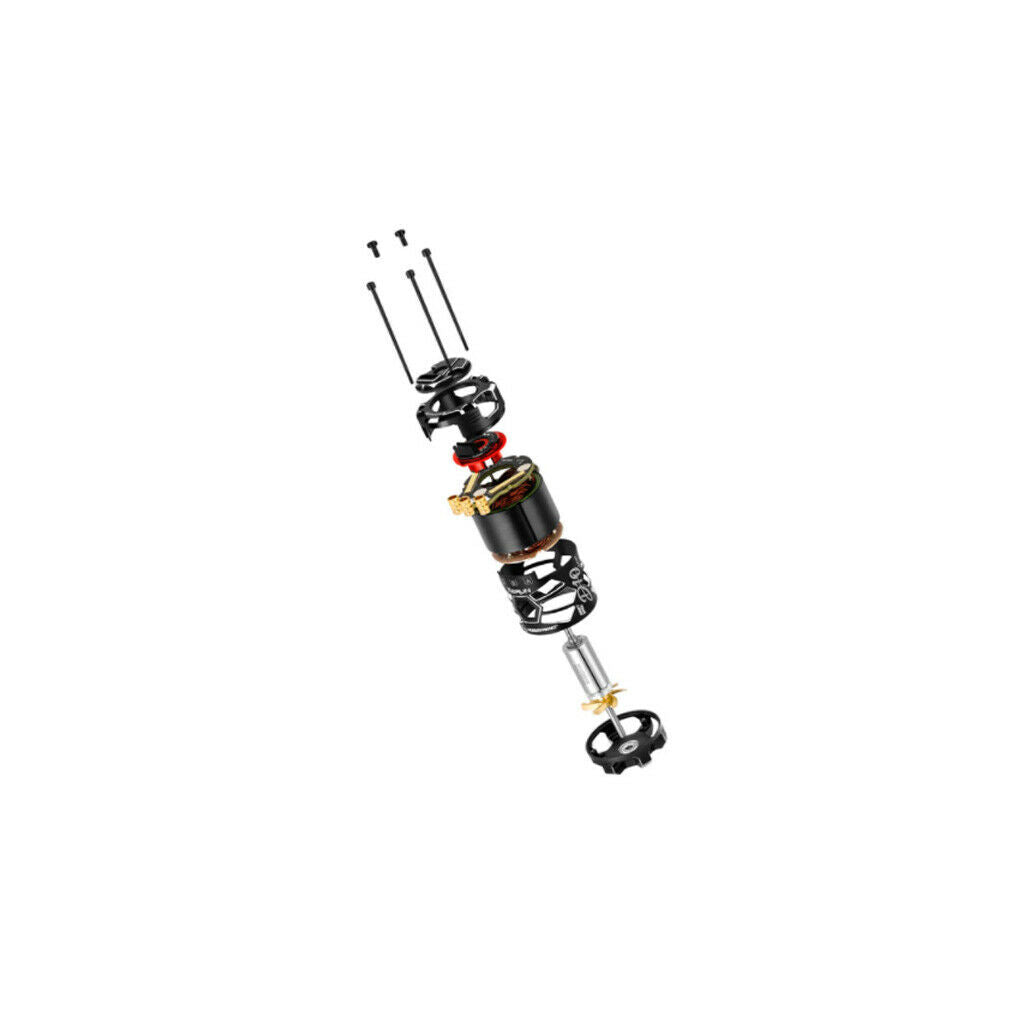

Easy to disassemble, clean and maintain
The motor has a removable structure design for daily cleaning and maintenance, effectively extending motor life and maintaining motor efficiency.

A variety of optional rotors available
4 different magnetic rotors (L1/L2/L3/L4) to choose from, enabling different combinations of ultra-soft linearity to super-powerful instant bursts to meet the needs of drivers or track differences.

High-quality materials
Each and every part of the D10 components are made of high-quality materials to optimize the performance of the motor. We want to assure our customers that we prioritize performance and durability.

Specifications

• Scale - 1/10th
• Brushed/Brushless - BL
• Sensored/Sensorless - SD
• Pole Count - 2
• Relevant Parameters
• KV Rating - 4600
• LiPo Cells - 2S
• Size & Weight
• O.D.(mm) - 25.7
• Length (mm) - 52.6
• Shaft Diameter (mm) - 3.17
• Weight (g) - 157

Applications - 1/10th drift car

Tuning Tip: Start at 25° timing on 2 S LiPo; monitor temps (< 85 °C). Add 2-3° for more RPM on long circuits.
