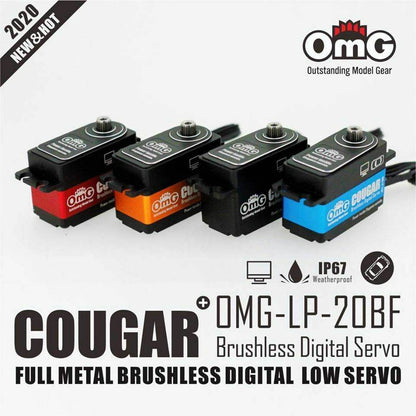

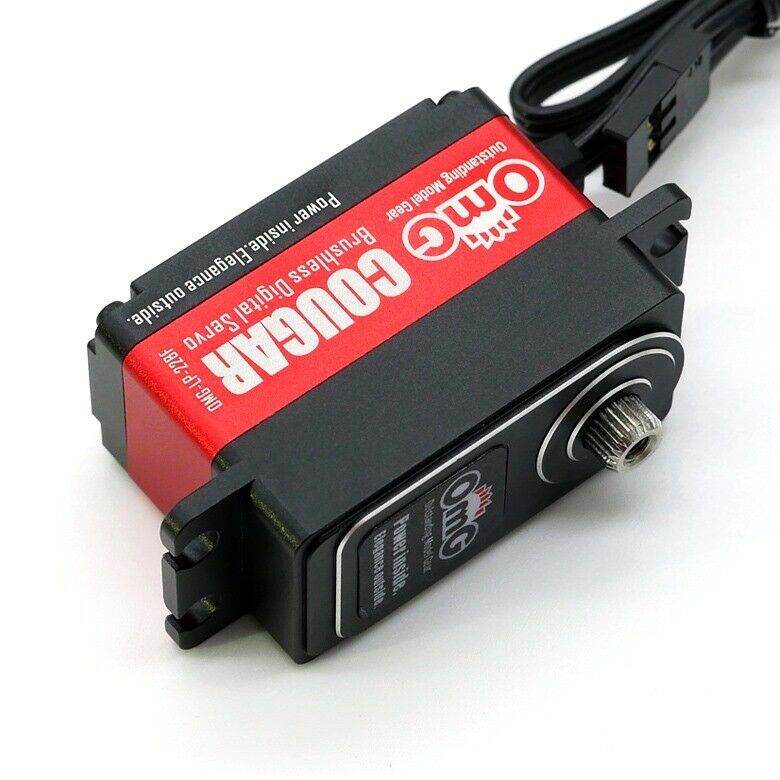

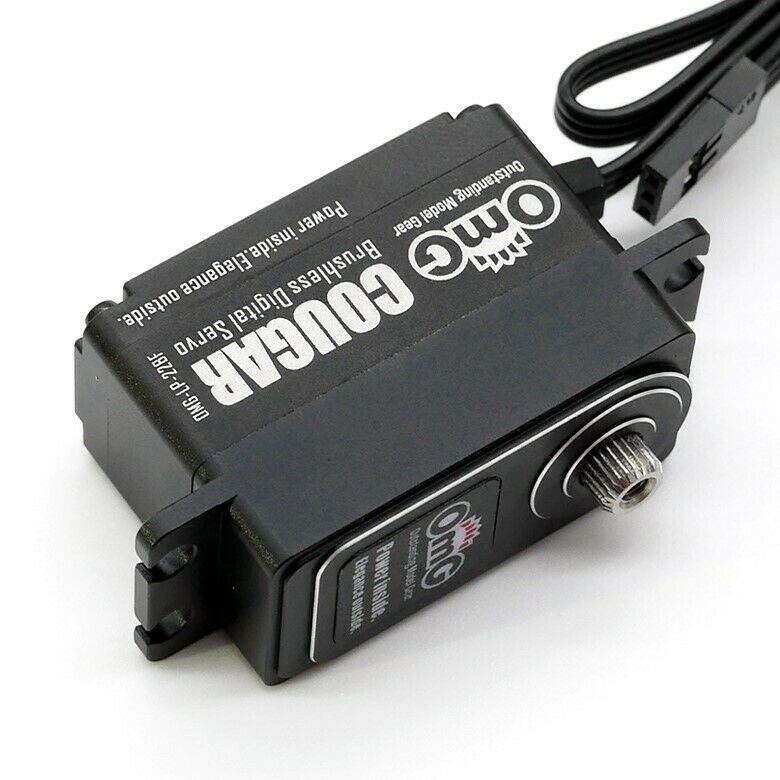

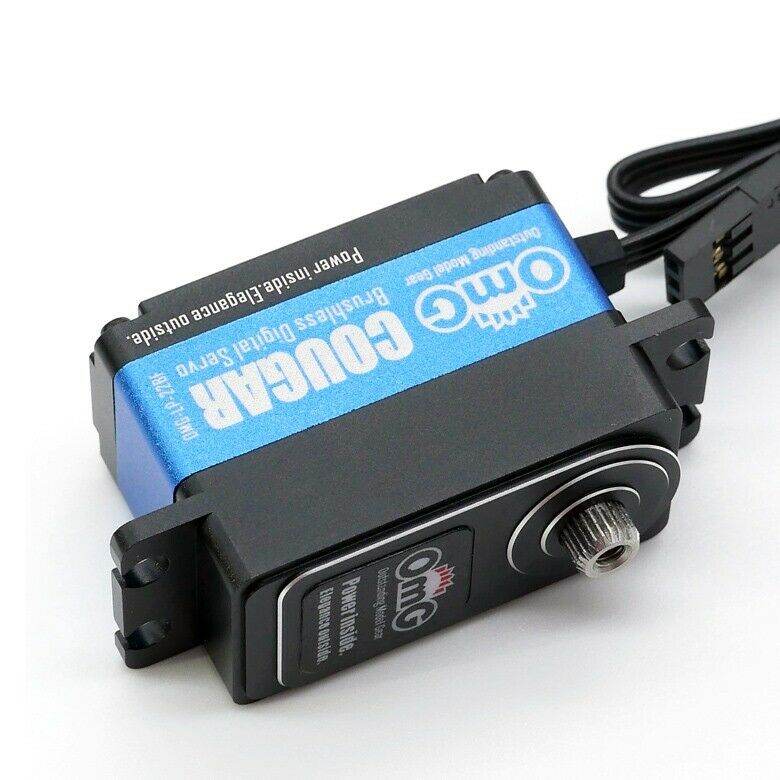

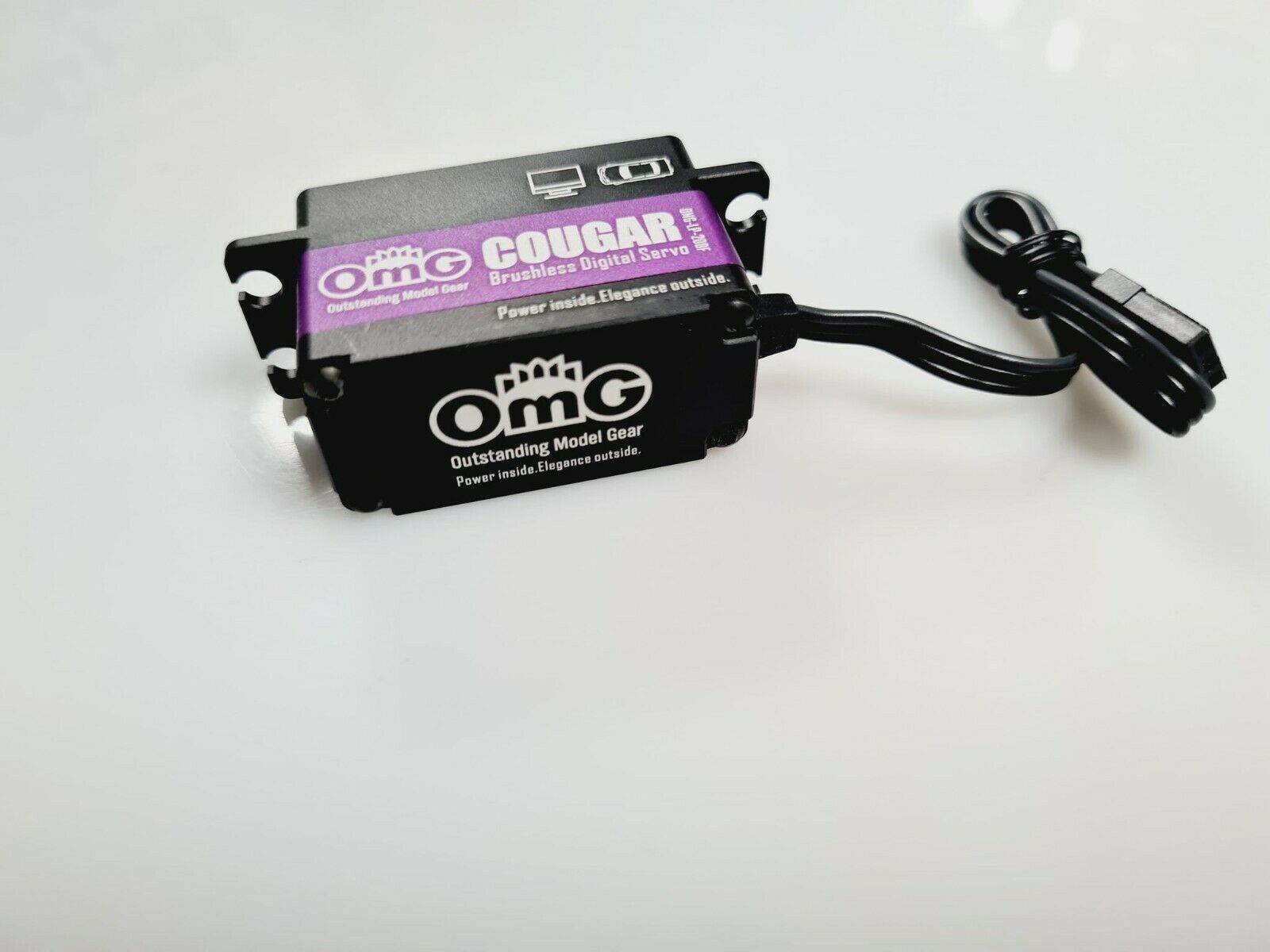

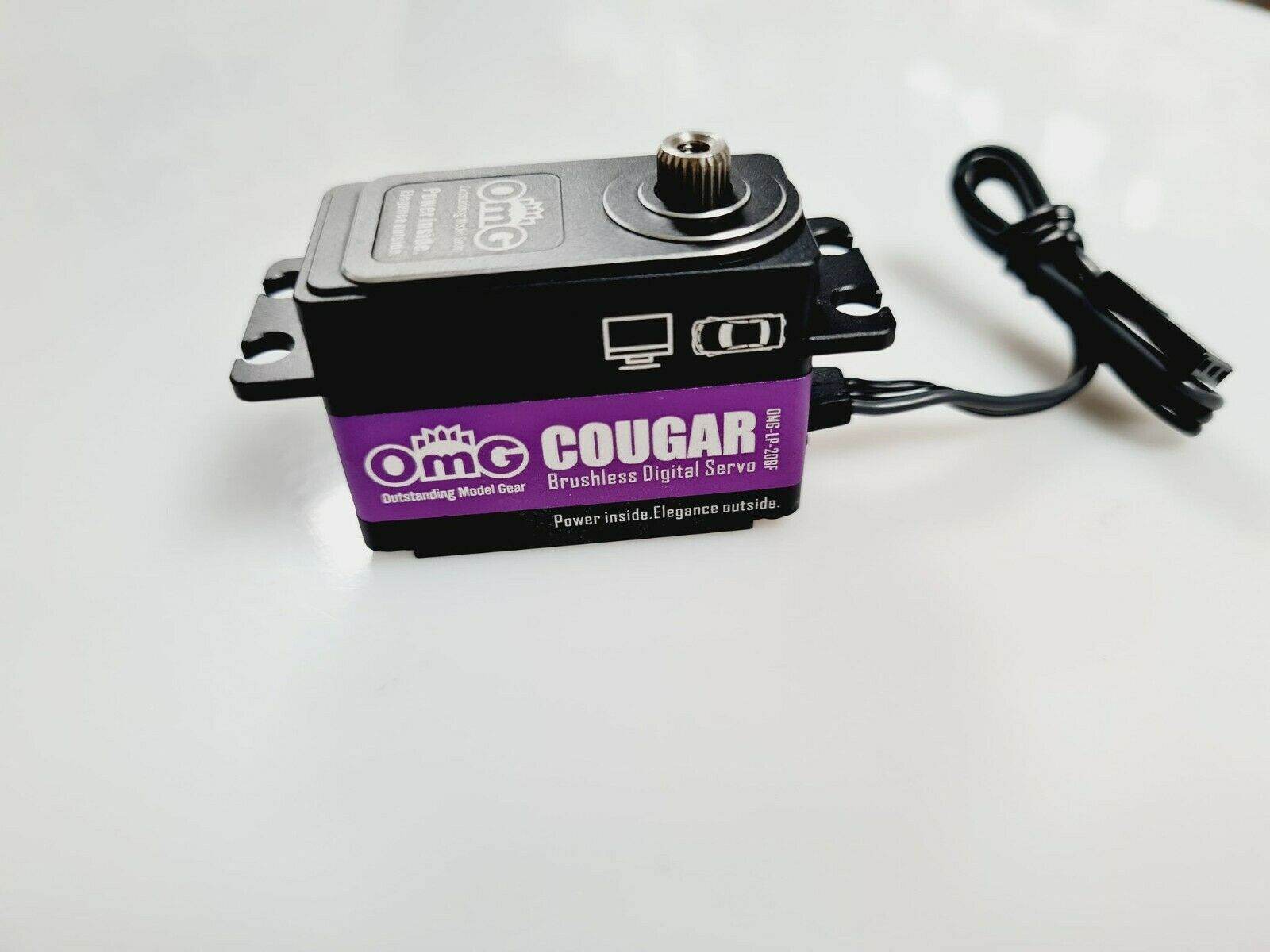

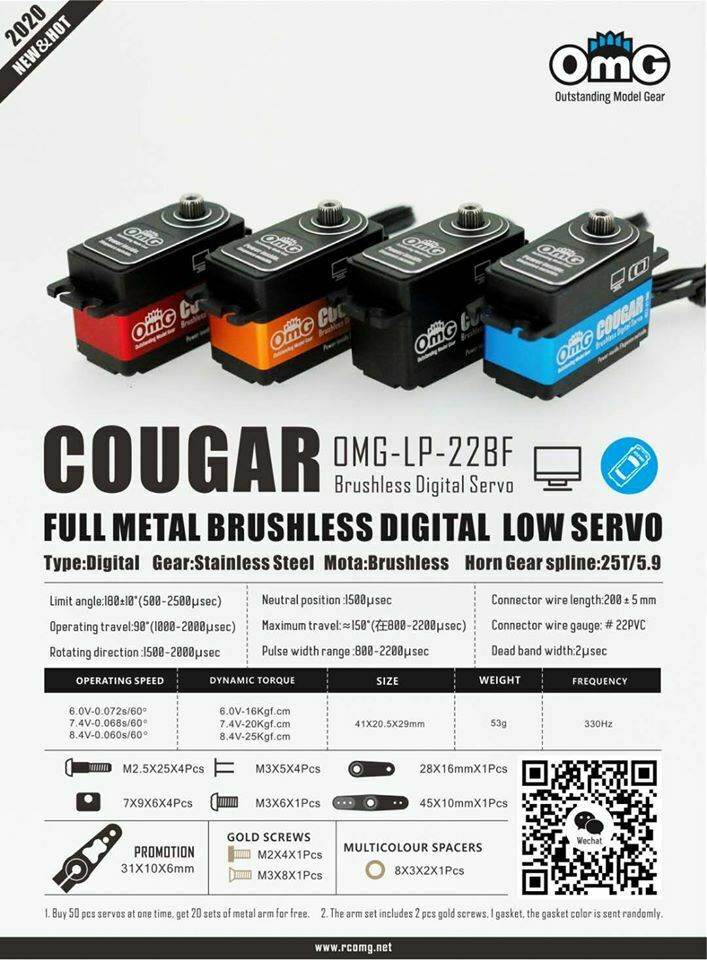

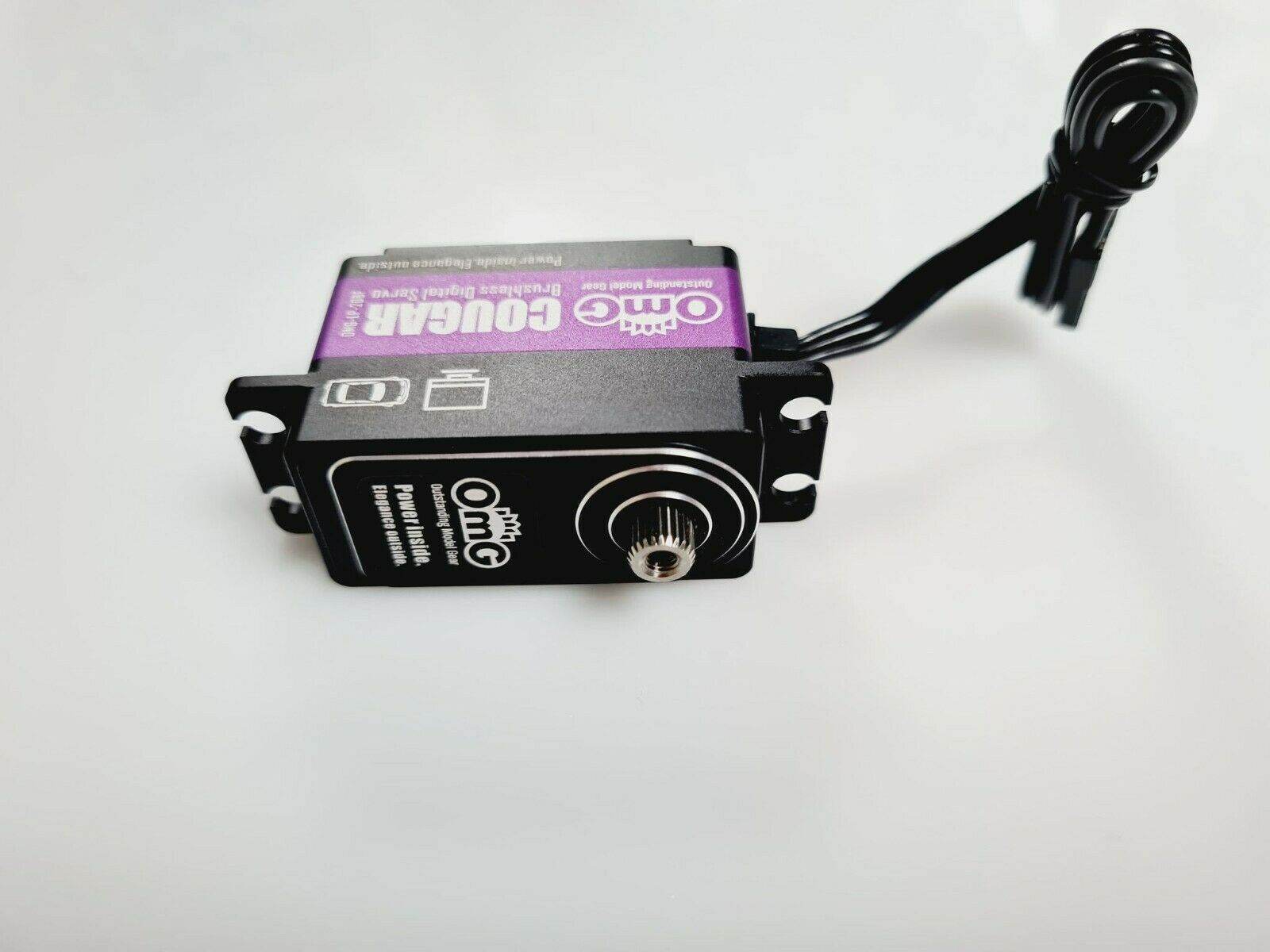

OMG Brushless Steering Servo Low Profile, Metal Gears, Programmable 20Kg
Features:
- Specially designed for 1/10 RC Touring car/Buggy
- Low profile servo
- Brushless motor
- Full aluminium case
- Steel gears

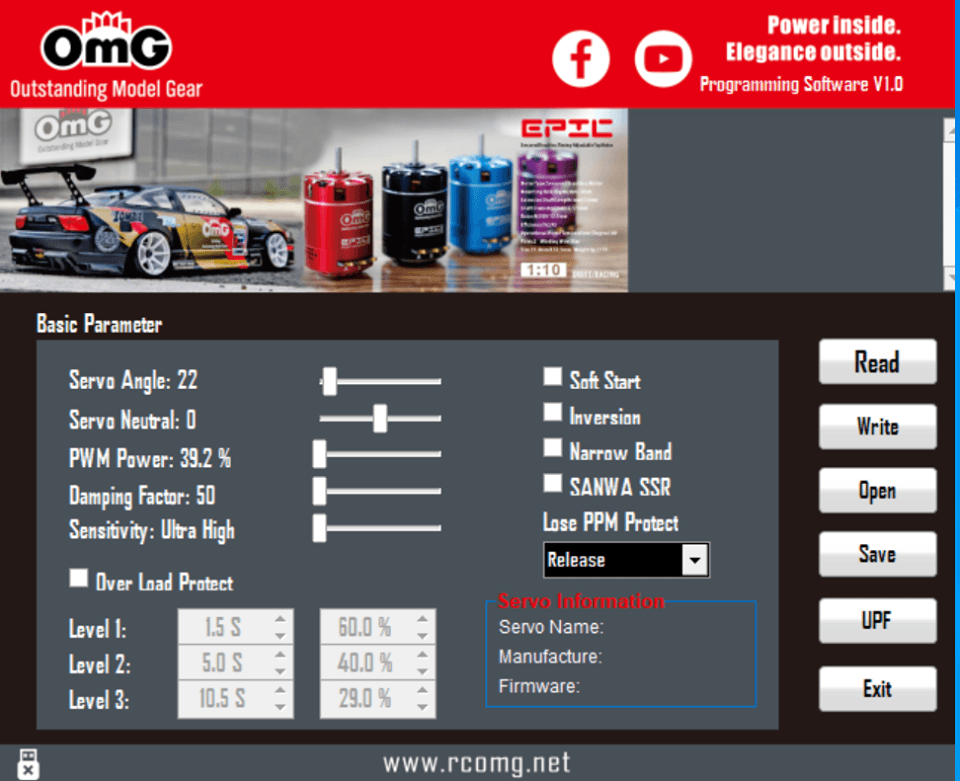

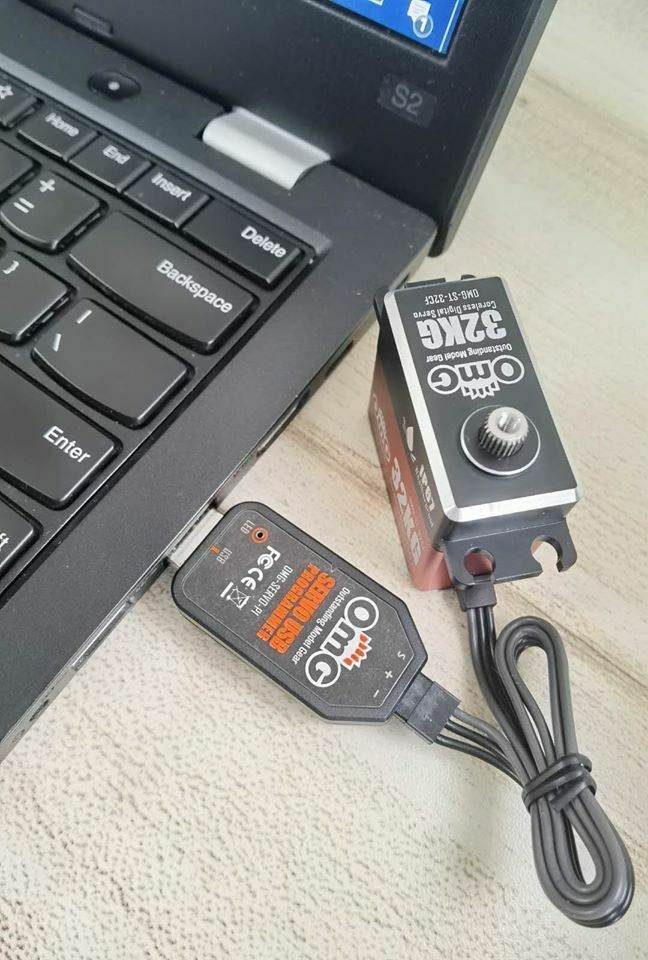

- Programmable
- 20Kg

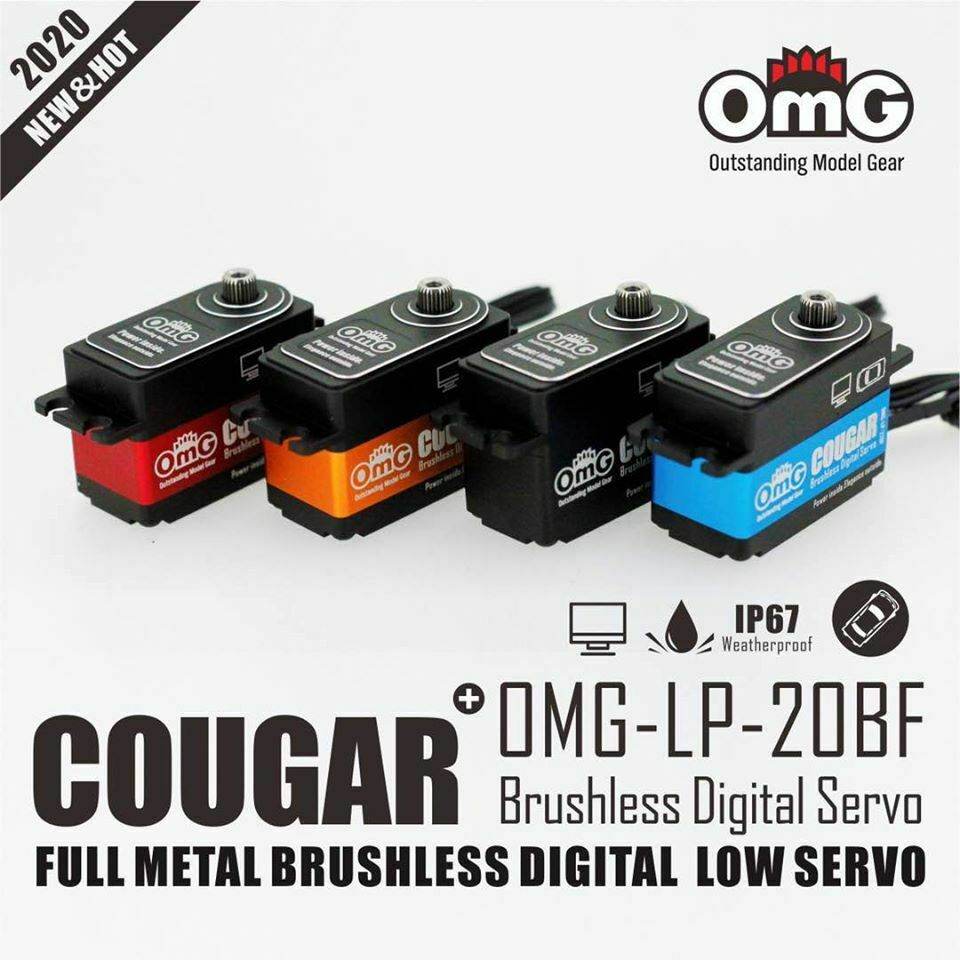

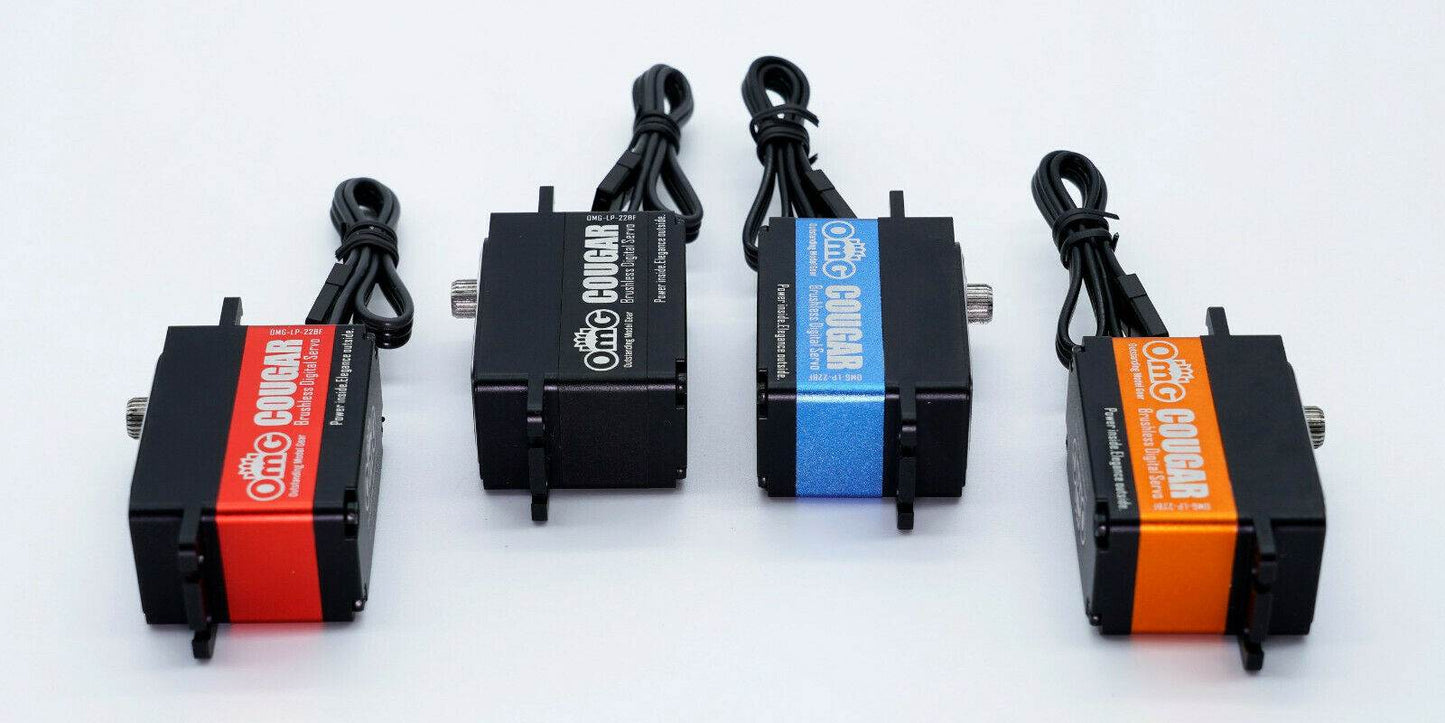

- Available in a range of colours
- Operating voltage:4.8-8.4V
- Fastest: 6.0V-0.095sec/60 degrees 7.4V-0.085sec/60 degrees 8.4V-0.073sec/60 degrees
- Blocking torque: *6.0V-16kg-cm/(222oz-in) *7.4V-20kg-cm/( 278oz-in) 8.4V-25kg-cm/(347oz-in)
- Output Gear: 25T
- Size: 41x20.5x29mm
- Weight: 60g
- Operating travel: 180±10 degrees ( 500-2500 sec)
- rotation direction: 180 degrees (1000-2000 sec)
- Angle limit: 220
- point: 1520 sec maximum travel: ≈ 180 degrees (500-2500
- sec)
- pulse width range: 500-2500 sec
- dead pulse width: 2 sec
- wire length: JR180mm wire model: ＃22PVC
