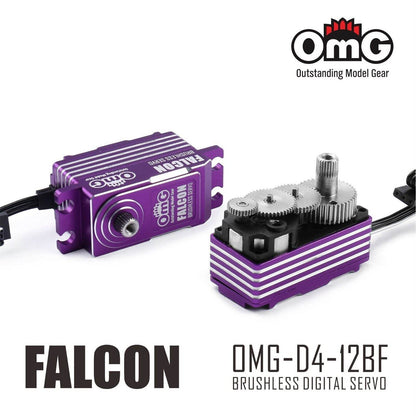

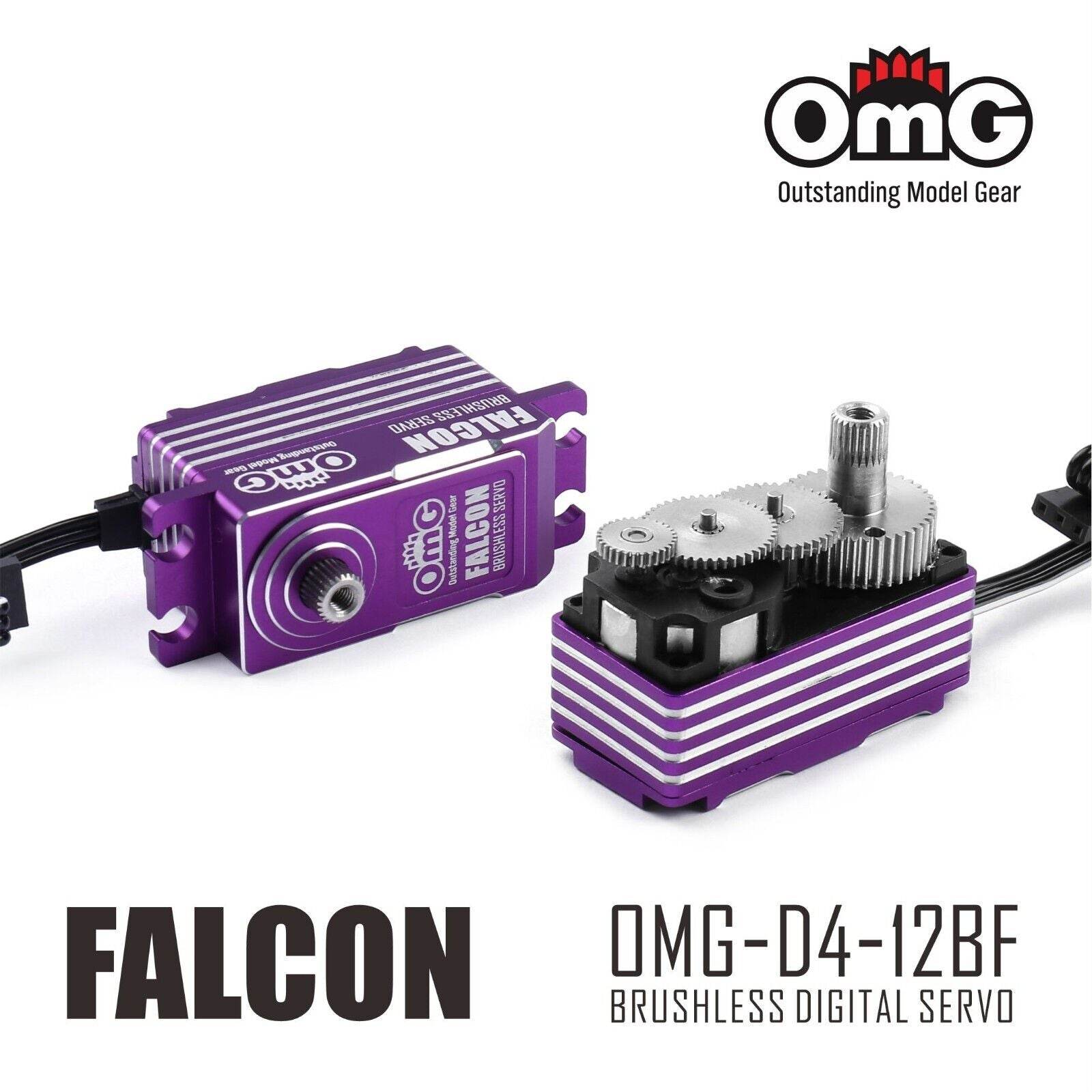

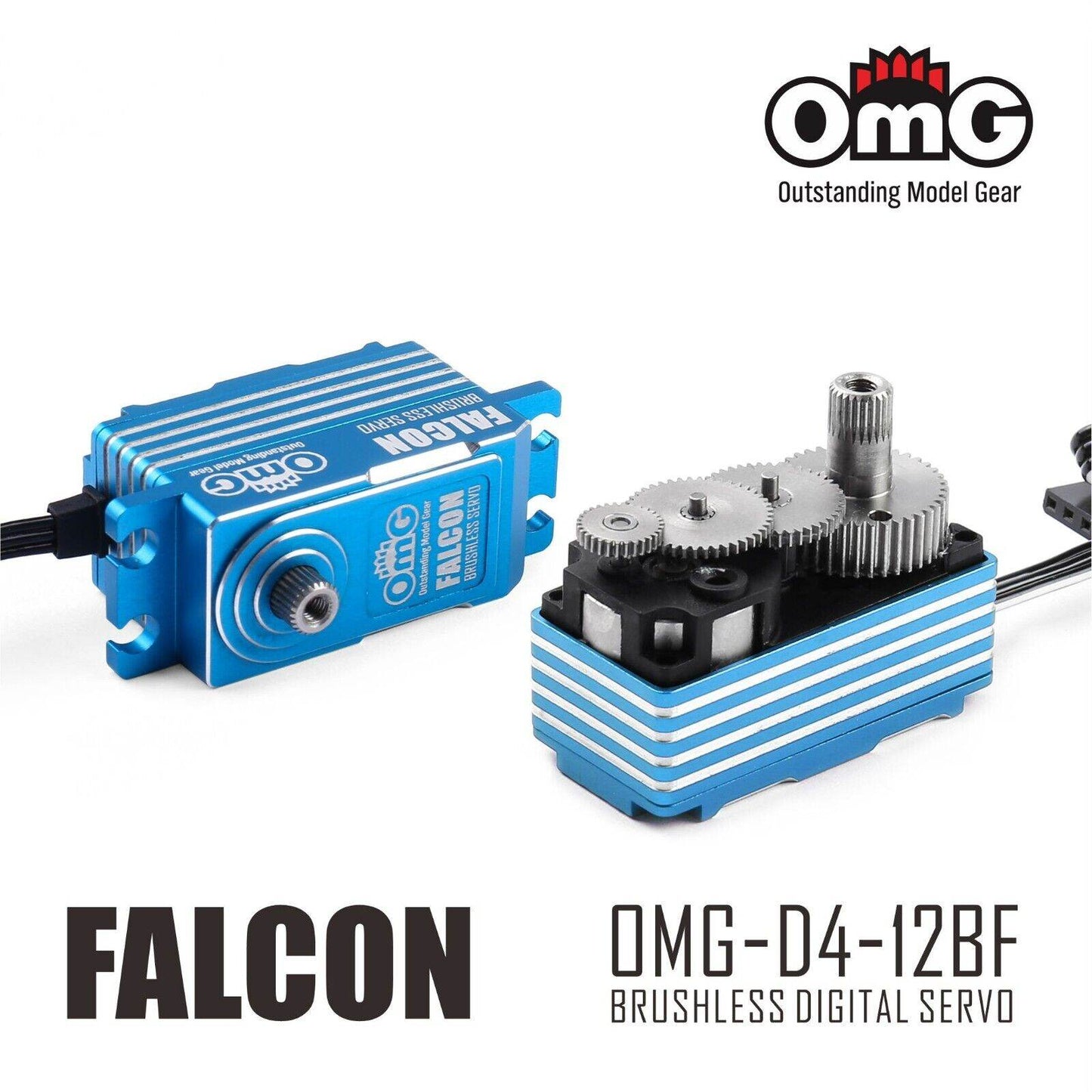

OMG Falcon Brushless Servo, Digital, Low Profile, 0.05sec / 12KG, 25T
The RC OMG Falcon Servo is a high-performance, precision-engineered servo designed for demanding RC applications. Built for speed, torque, and reliability, it features advanced digital technology with a brushless motor, offering smooth and responsive control. The servo is housed in a durable aluminium case for efficient heat dissipation and increased durability, making it suitable for high-stress conditions like RC racing, crawling, or flying. With programmable options and a low-profile design, the Falcon Servo delivers precise positioning and enhanced power, ensuring top-tier performance across a variety of RC platforms. Ideal for serious hobbyists and competitive drivers.
OMG-D4-12BF(FALCON)
- Operating Voltage Range: 4.8 -8.4v
- Bearing Type: Dual Ball Bearings
- Speed: 4.8v (0.065/s) , 6.0v (0.055/s) , 7.4v (0.050/s) 8.4v (0.045/s)
- Torque: 4.8v (8 kgf.cm) , 6.0v (10 kgf.cm) , 7.4v (12 kgf.cm) 8.4v (14 kgf.cm)
- Limit angle: 120°± 10°
- No-load Current (mA): 550max
- Signal control method: PWM analogue digital control
- Connector Wire Gauge: 22 AWG Black Wire
- Connector Type: JR
- Frequency: 1520us/333Hz
- Shaft: 5.9 * 25T
- Tooth: 25T

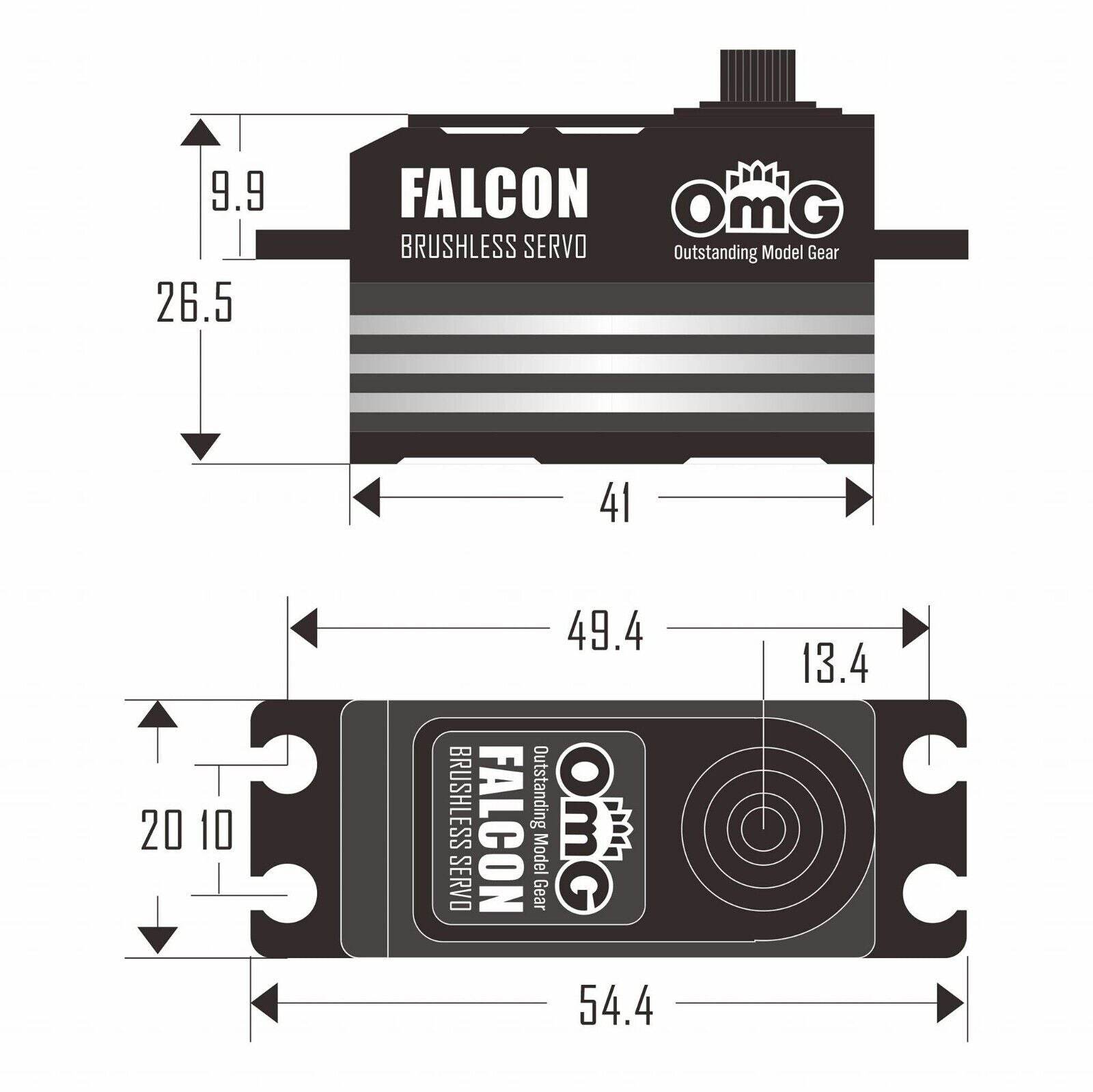

- Size: 41mm x 20.5mm x 26mm
- Weight: 53g
For: 1/10th drifting & touring cars, characterized by fast response speed and moderate torque set up. Parameters can be tuned according to the driver's habits.
- Material: Aluminium Case

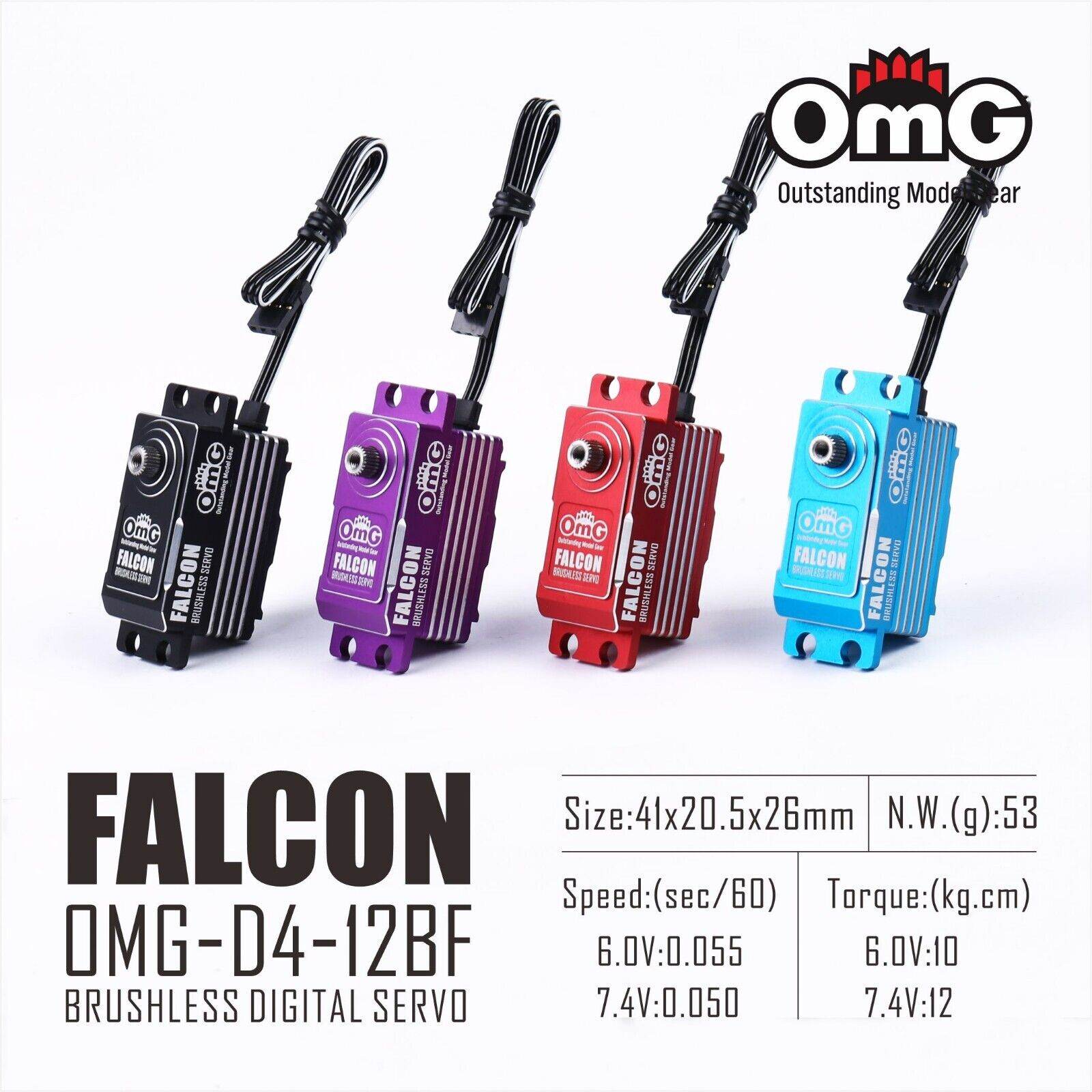

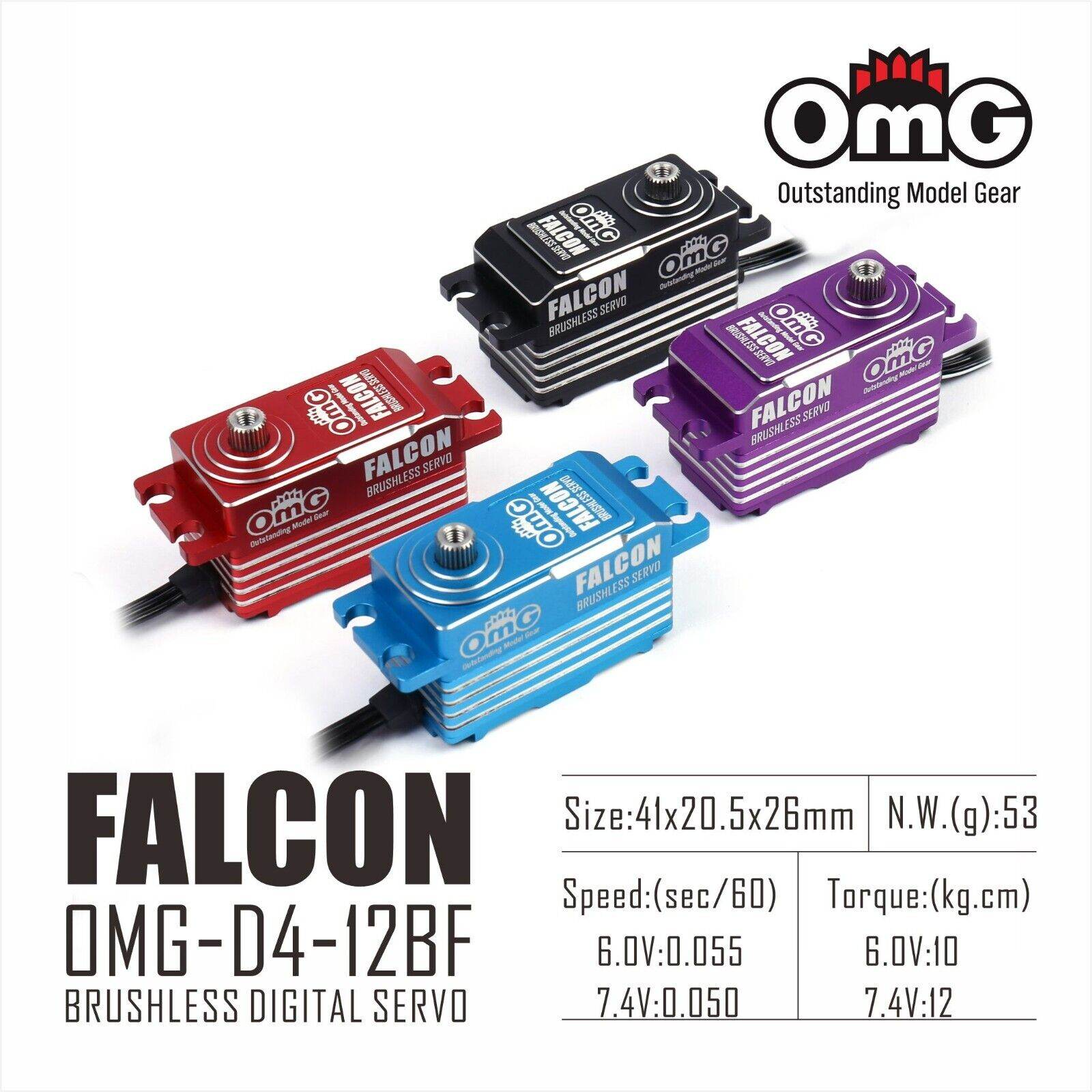

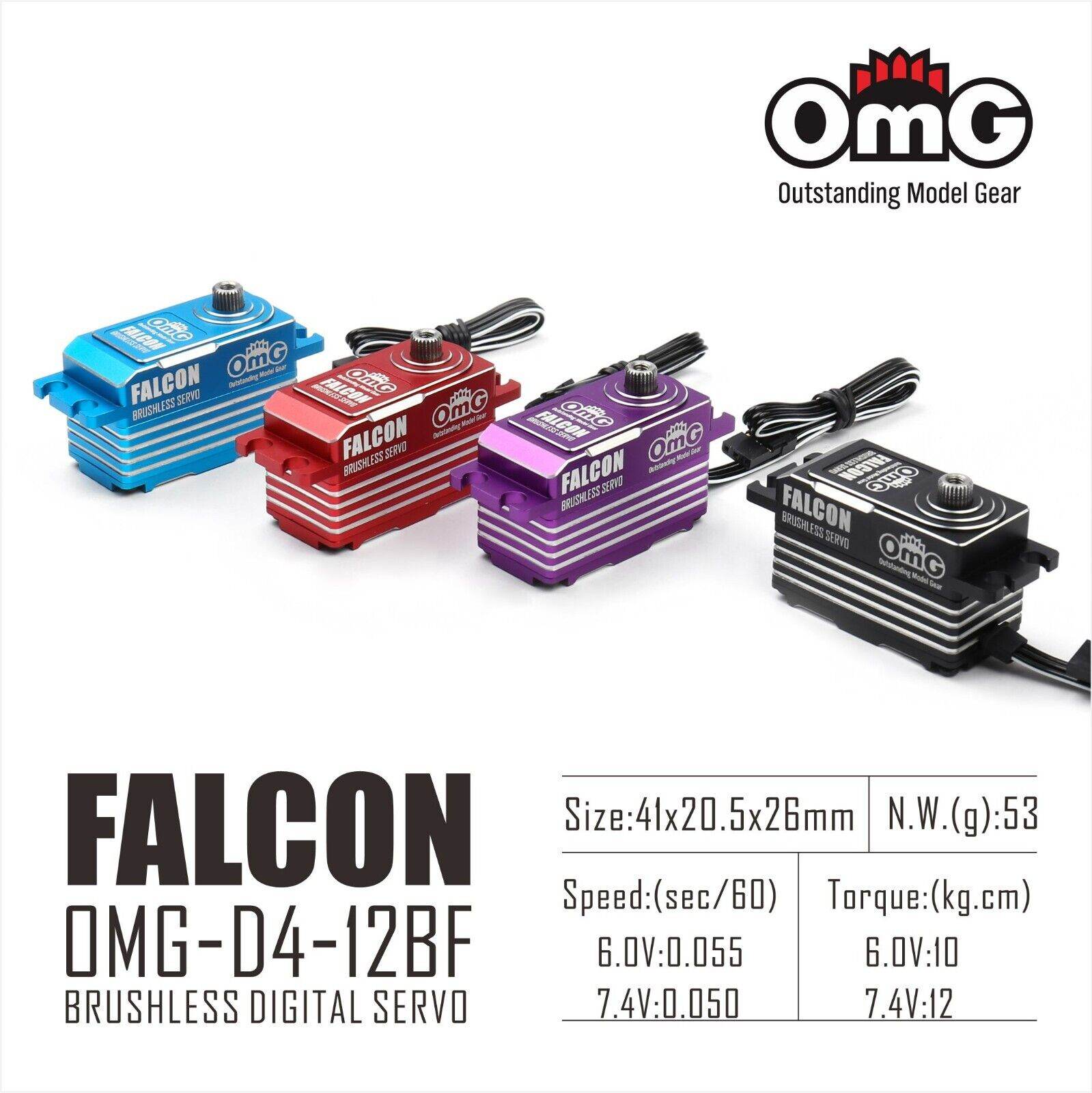

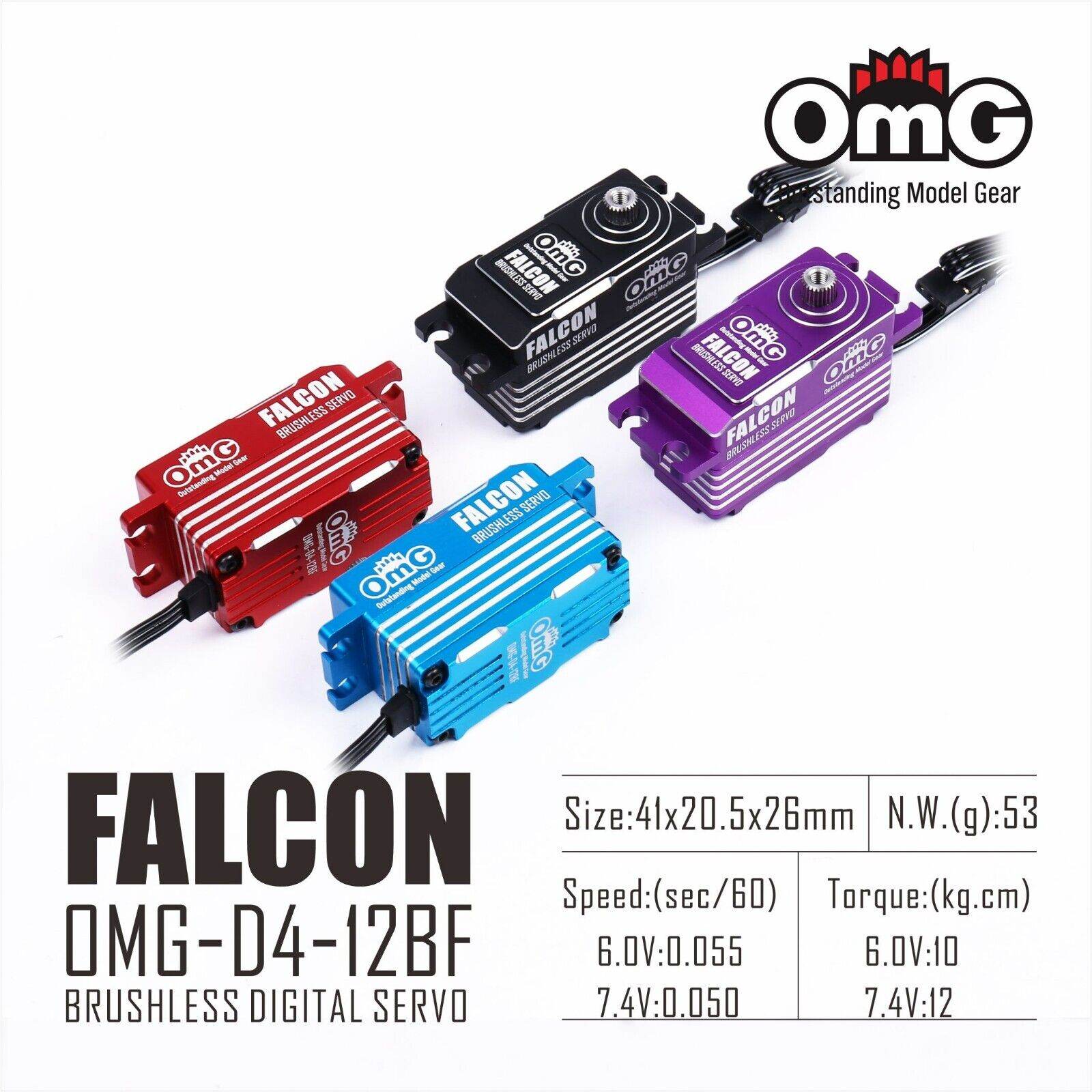

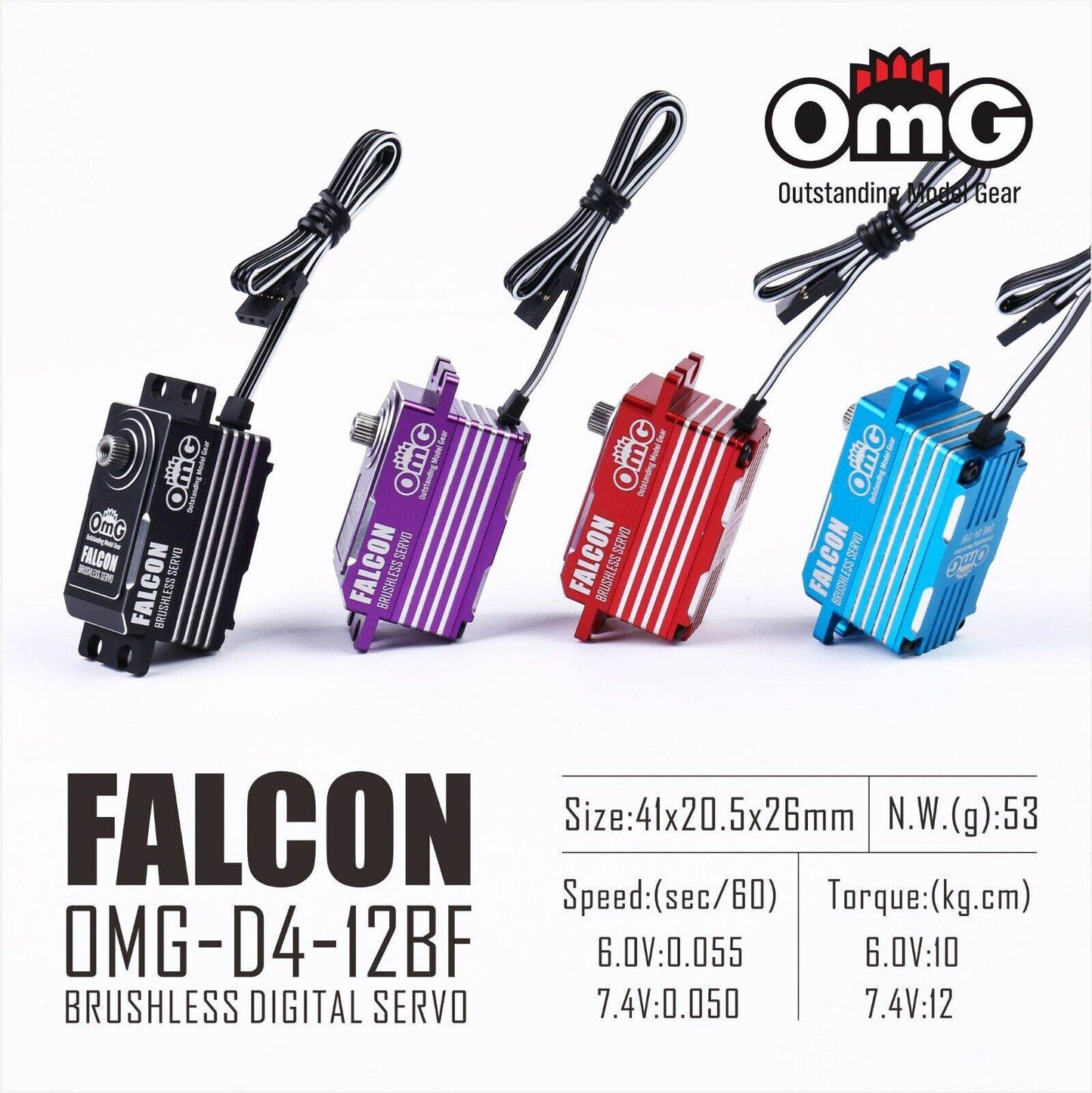

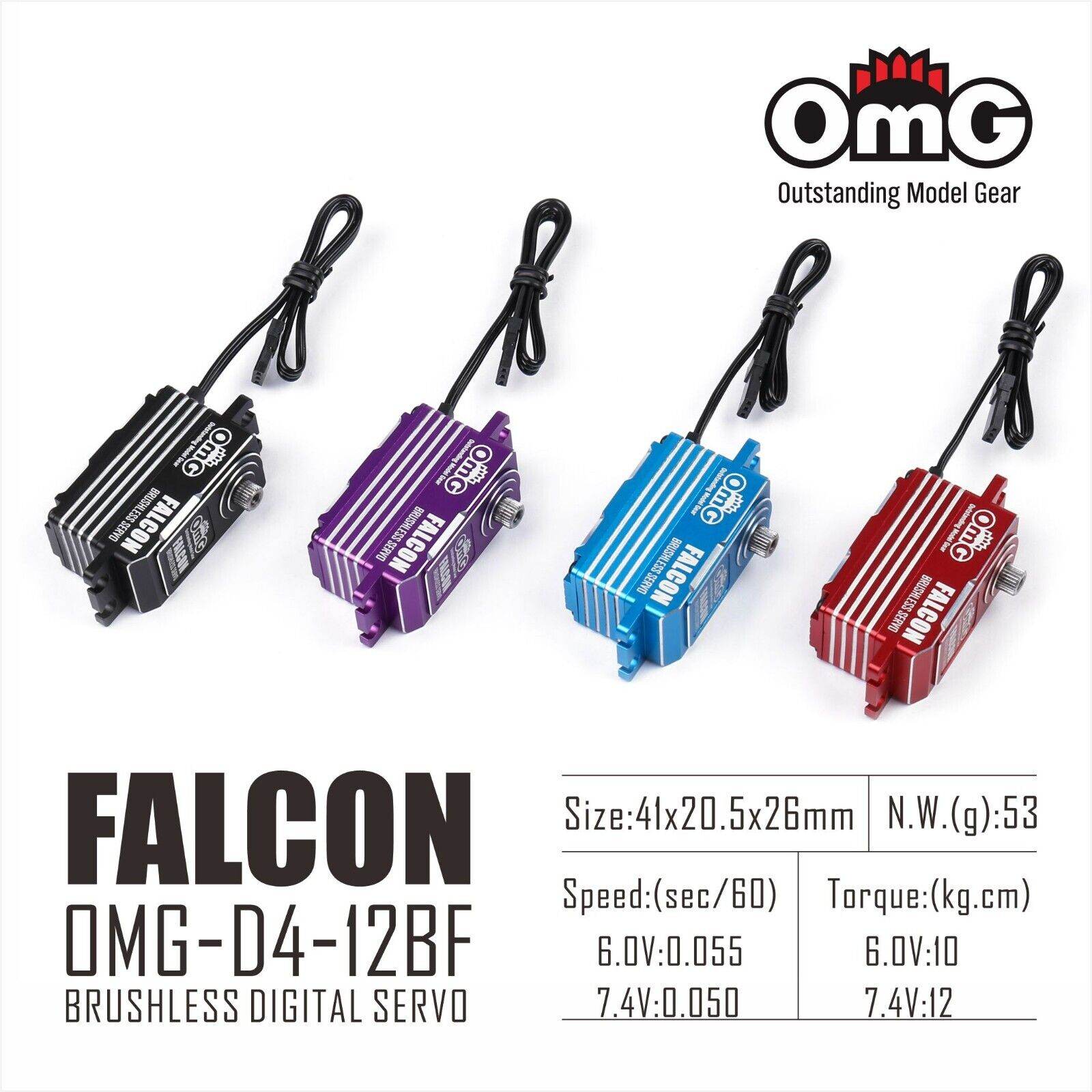

- Colour: Red, Black, Blue Or Purple
- Type: Digital Brushless High Voltage Servo

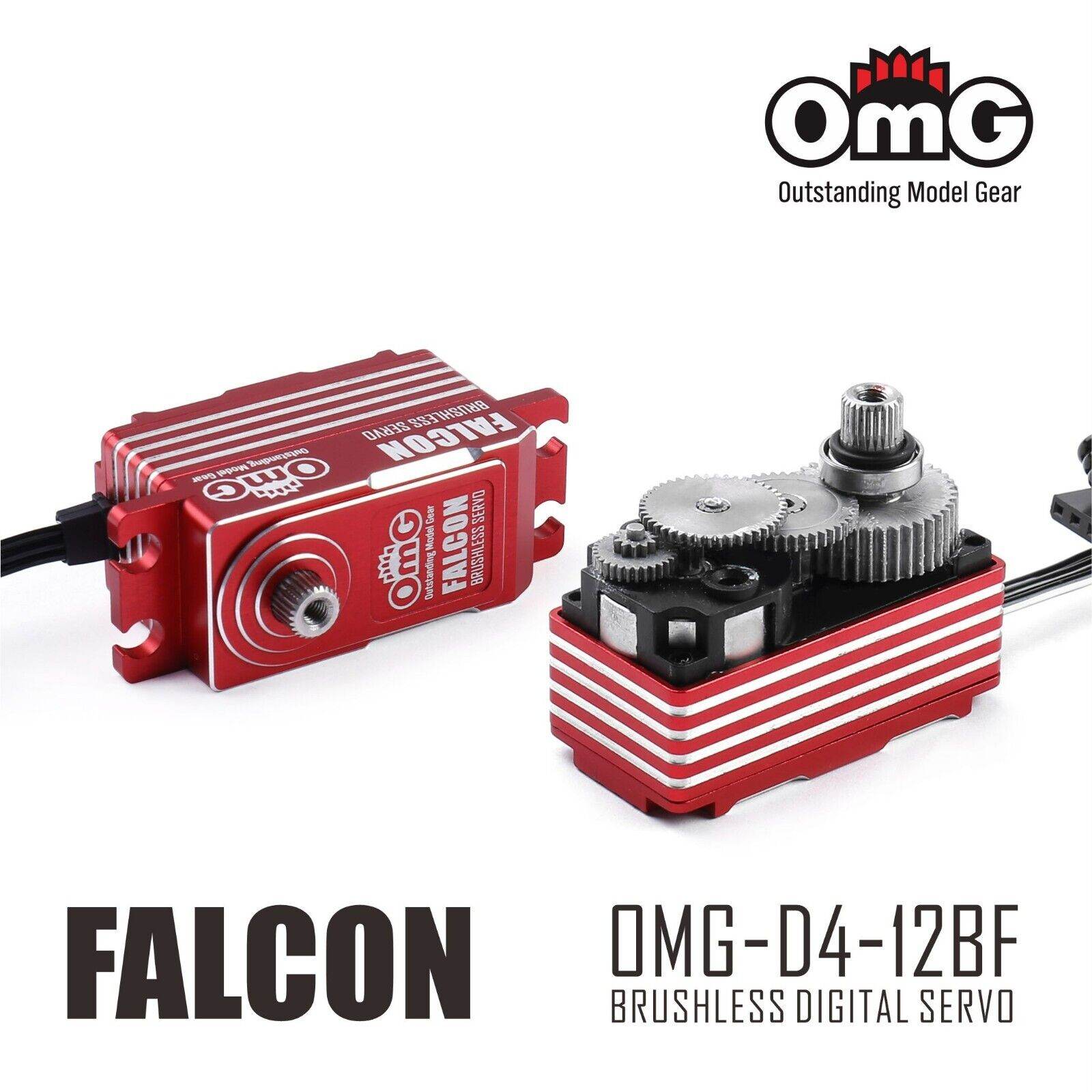

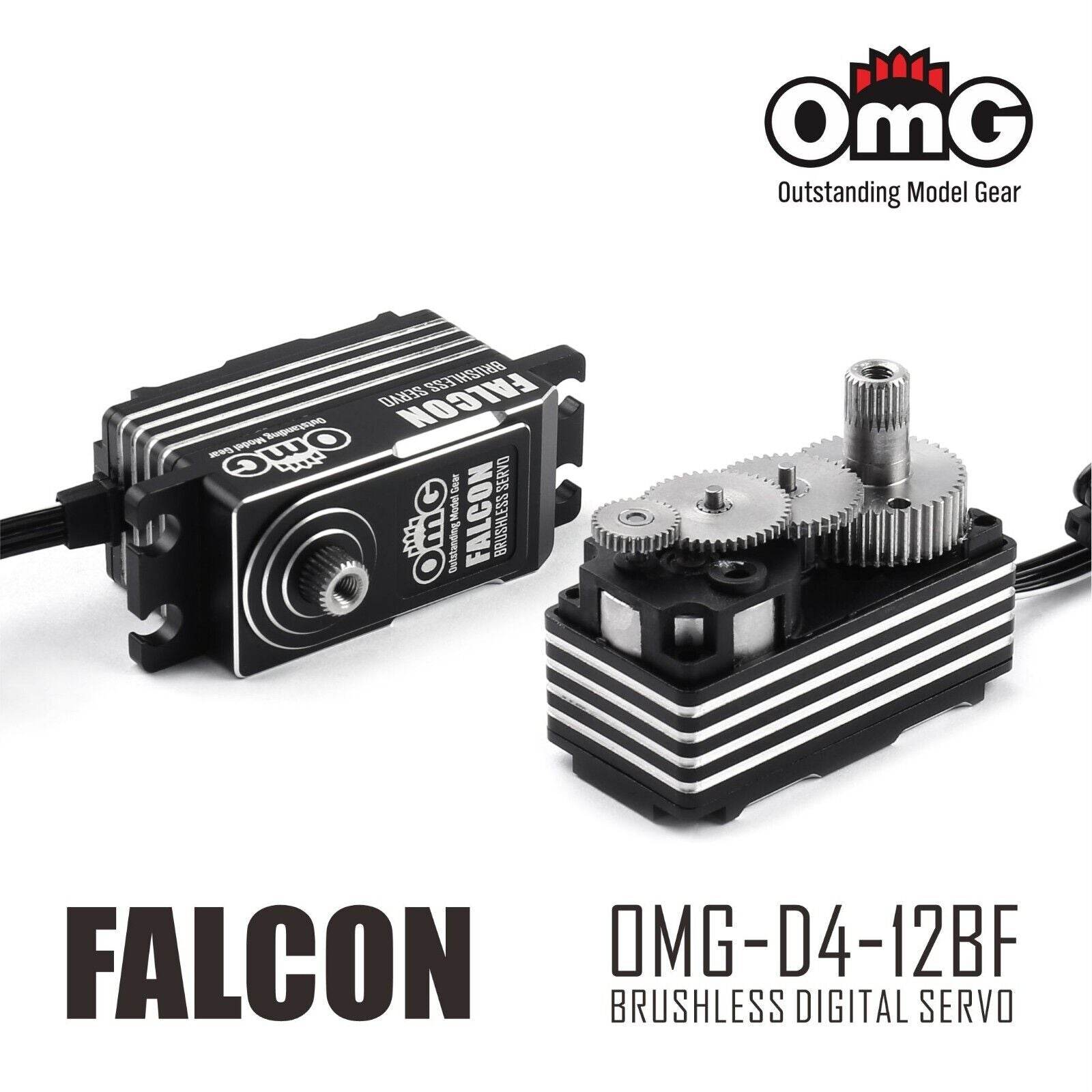

- Gears: Stainless Steel
- Brushless Motor
- Digital precision provides great accuracy and performance
- Compatible with all types of Radio system
- ESC Min BEC Output Recommendation: 5.75@3.2A
OMG-D4-12BF

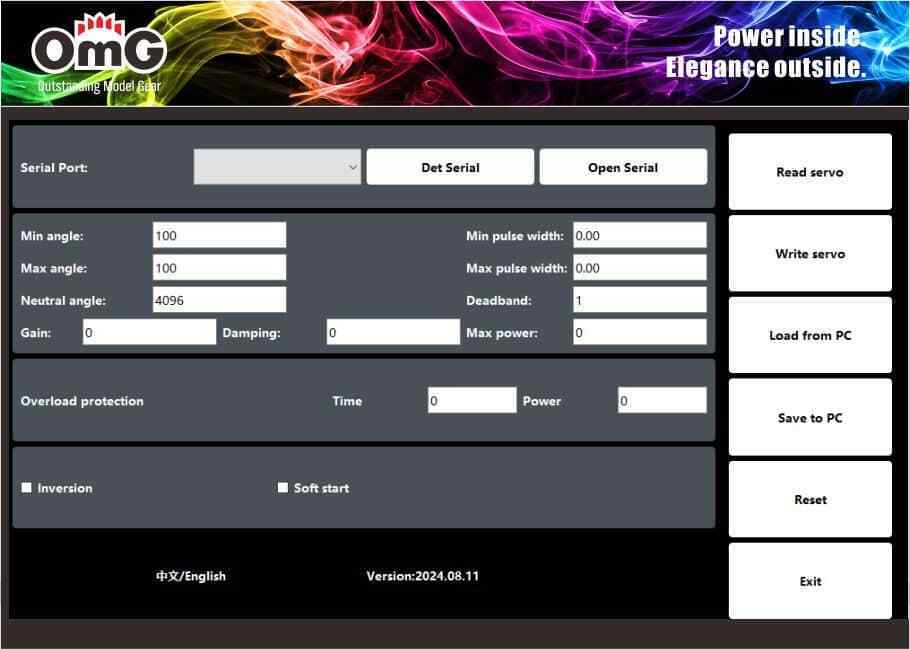

Drift recommendation:
--Gain:12-17
--Damping:180-230
--Power:800-900
Touring car recommendation:
--Gain:25+
--Damping:50-80
--Power:900+
