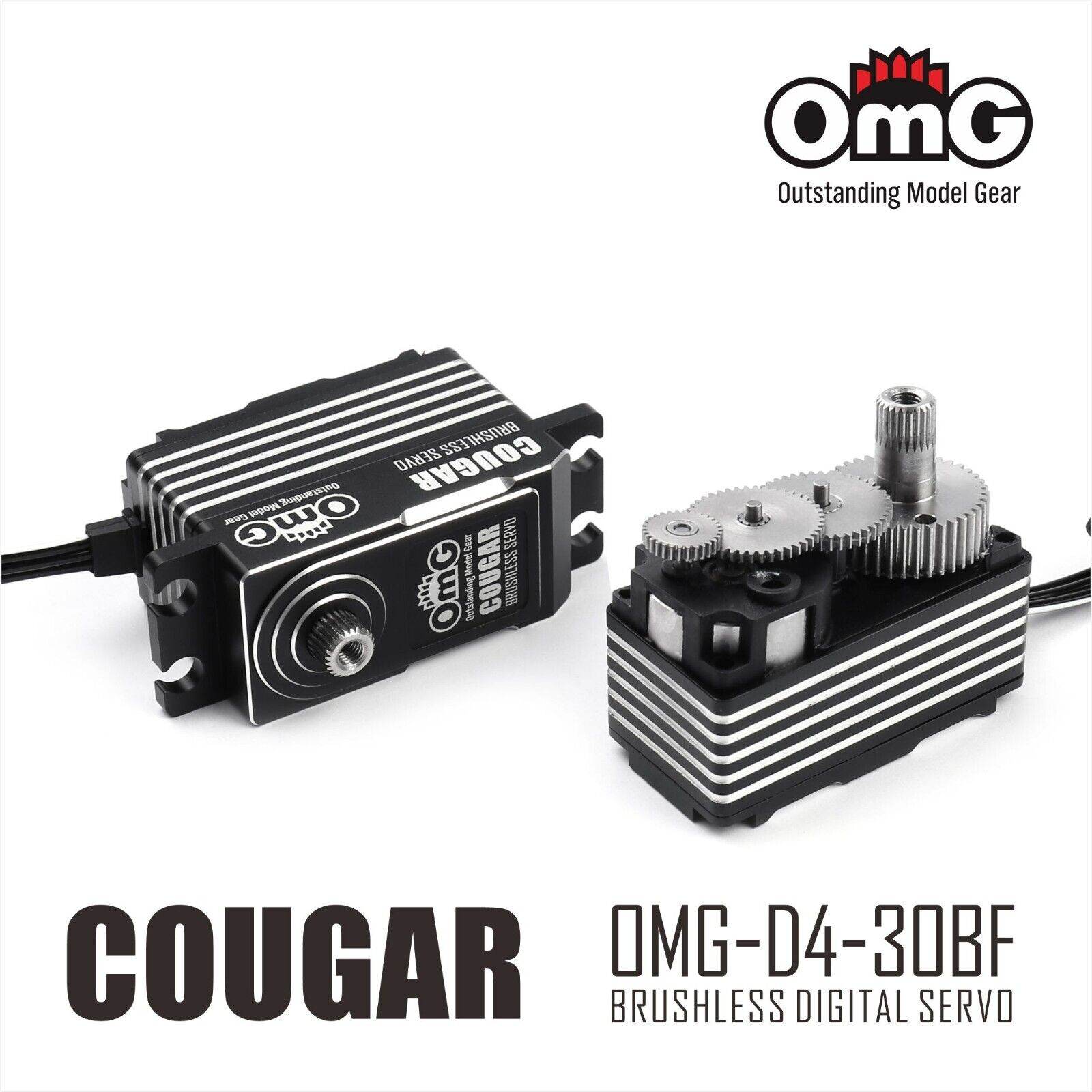

OMG D4 COUGAR Digital Brushless RC Servo 4.8-8.4V (0.06 Sec)

The OMG-D4-30BF(COUGAR) is a premium digital brushless RC servo designed for RC enthusiasts who demand high torque and precision control. Ideal for both 2WD and 4WD RC cars, this servo offers adjustable parameters to match your driving style. With an aluminium case and stainless steel gears, this servo is built for durability and reliable performance on the track.

• Operating Voltage Range: 4.8V - 8.4V
• Bearing Type: Dual Ball Bearings for smooth operation
• Speed:
• 4.8V: 0.075 sec/60°
• 6.0V: 0.070 sec/60°
• 7.4V: 0.065 sec/60°
• 8.4V: 0.060 sec/60°
• Torque:
• 4.8V: 25 kgf.cm
• 6.0V: 27 kgf.cm
• 7.4V: 30 kgf.cm
• 8.4V: 31 kgf.cm
• Limit Angle: 120° ± 10°
• No-load Current: Max 550mA
• Signal Control Method: PWM analog digital control
• Connector Type: JR, with 22 AWG black wire
• Frequency: 1520us/333Hz
• Shaft Size: 5.9mm, 25T spline

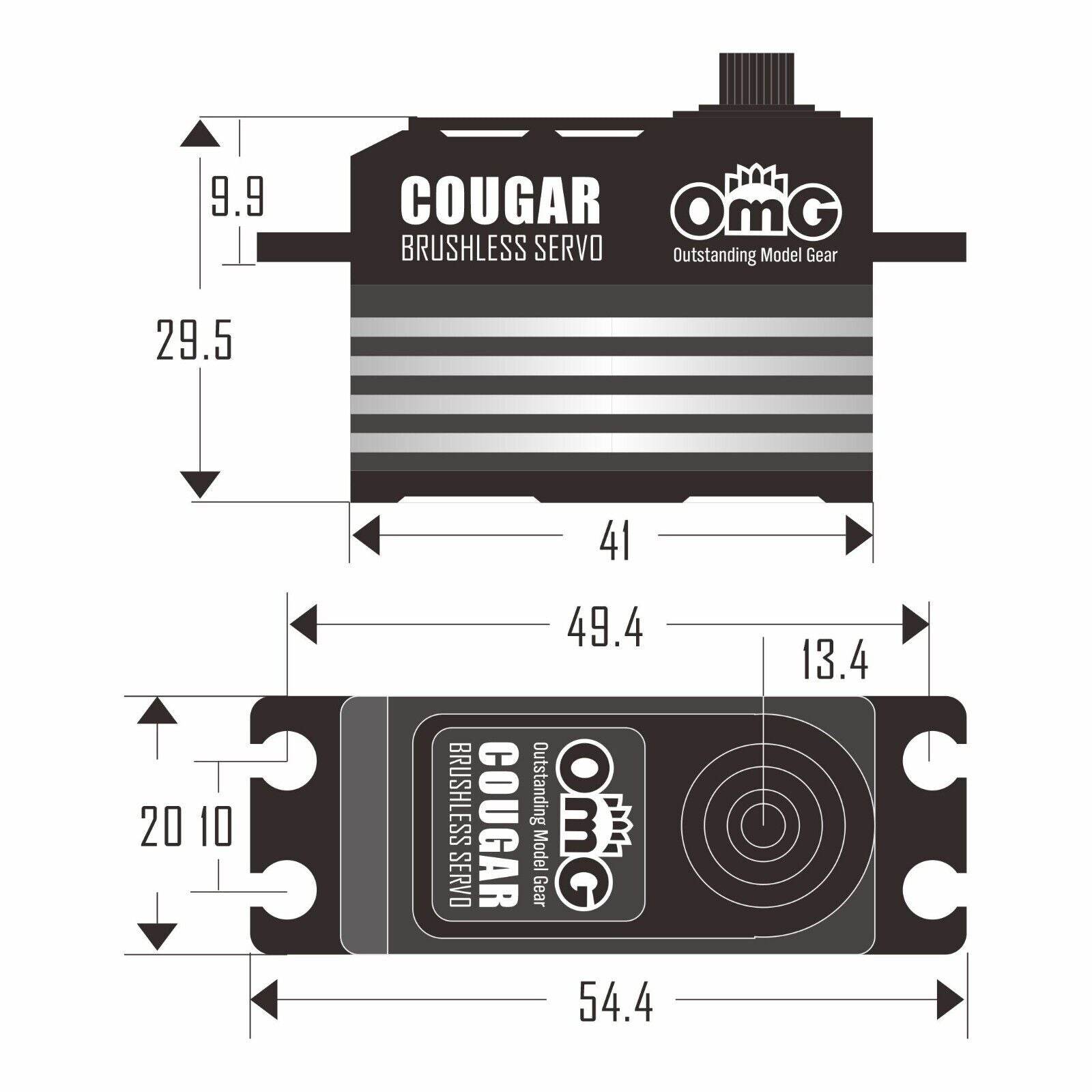

• Size: 41mm x 20.5mm x 29mm
• Weight: 58g
• Material: Aluminium case for heat dissipation and durability
• Type: Digital, Brushless Motor for enhanced precision and performance
• Gears: Stainless Steel for longevity and strength
• Recommended ESC BEC Output: 5.75V @ 3.2A minimum
• Ideal For:
• 2WD and 4WD Cars: Built for high torque with moderate speed, perfect for a variety of RC cars
• Customization: Adjustable parameters to suit your driving preferences
• Compatibility: Works with all types of radio systems
• Colour: Black
• High Precision & Performance: Offers digital precision for exceptional accuracy, ensuring responsive control in demanding conditions.

Upgrade your RC car setup with the OMG-D4-30BF(COUGAR) and experience a powerful combination of high torque, speed, and control. Perfect for drivers seeking both performance and durability on any terrain!
