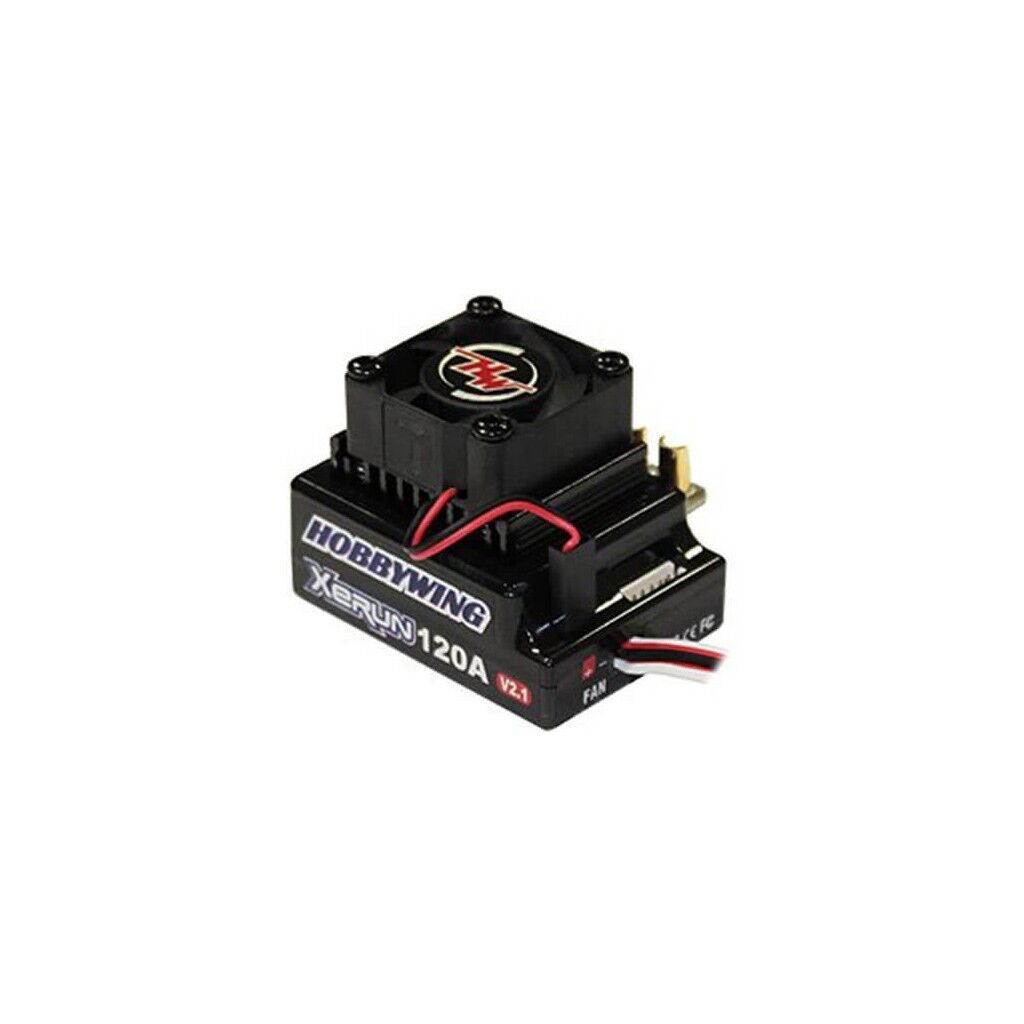

Hobbywing Xerun V2.1 Brushless RC Speed Controller, ESC 120A
The XERUN V2.1 is an excellent brushless speed controller with a wide range of features.
Features:
Compatible with most sensorless and sensored brushless motors.
Large current endurance.
Most effective cooling structure.
Excellent start-up, acceleration and linearity features, best control feeling.
Plenty of programmable items, suitable for various chassis, tyres and racing tracks.
Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
Internal timing can be changed easily to make the ESC suitable for various motors.
Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
ESC firmware can be updated through the USB adapter in the LCD Program Box .
Plenty of firmware available for all kinds of competitions.
Standard firmware for MODIFY competition.
Supercharged firmware(with turbo timing) for SUPER STOCK competition.
Zero timing firmware for ROAR SPORTMAN race and other fair races.
Also suitable for rock crawler pro race when using “Crawler” working mode.
Specification:
Current
Continuous: 120A
Burst: 760A
Input * Note #1
4-9 cells NiMH/NiCd
2-3S LiPo
Built-in BEC
5.75V@3A (linear mode)
Resistance
0.0003 Ohm
Motor Supported
Sensored and sensorless brushless motor
Suitable Motor
With 2 Lipo or 4-6 NiMH
1/10 on-road: >=3.5T
1/10 off-road: >=5.5T
With 3 Lipo or 7-9 NiMH
1/10 on-road: >=5.5T
1/10 off-road: >=8.5T
Suitable Car
1/10, 1/12 all competitions
1/10, 1/8 rock crawler
Cooling Fan
5V - HW30860200010
Size
43mm(L) * 36mm(W) * 33mm(H)
Weight
105g
Please Note:
For 4-6 cells NiMH/NiCd or 2S LiPo, the standard cooling fan needn't be changed.
For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan need be changed to 12V high voltage fan.
