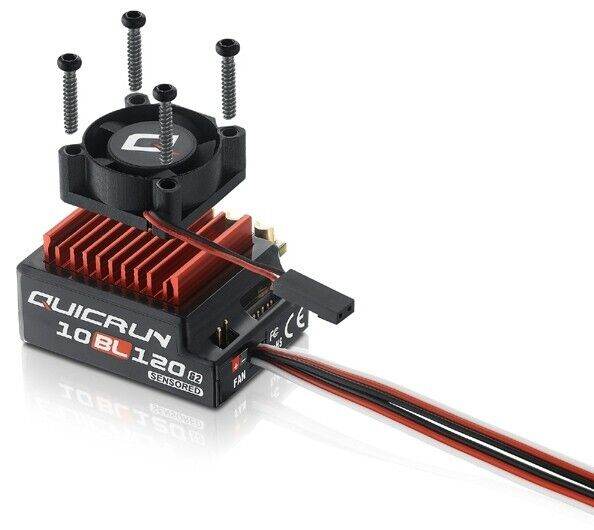

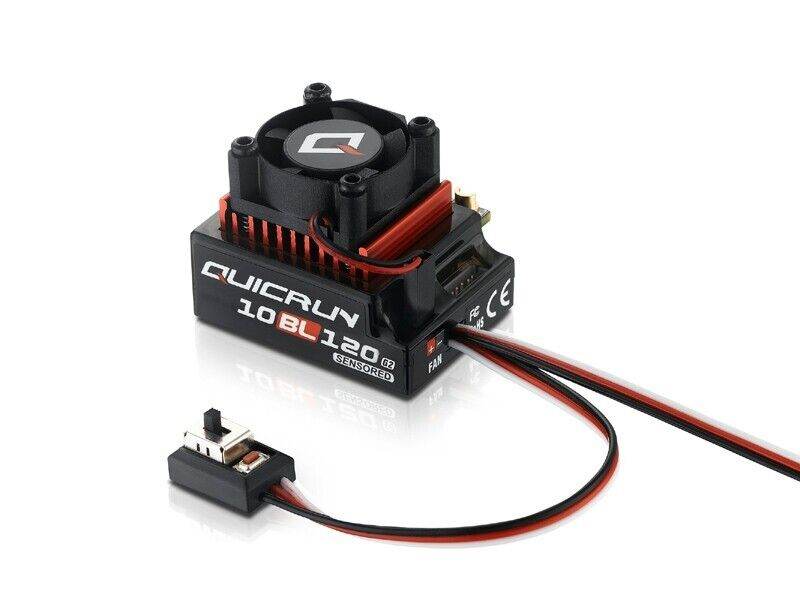

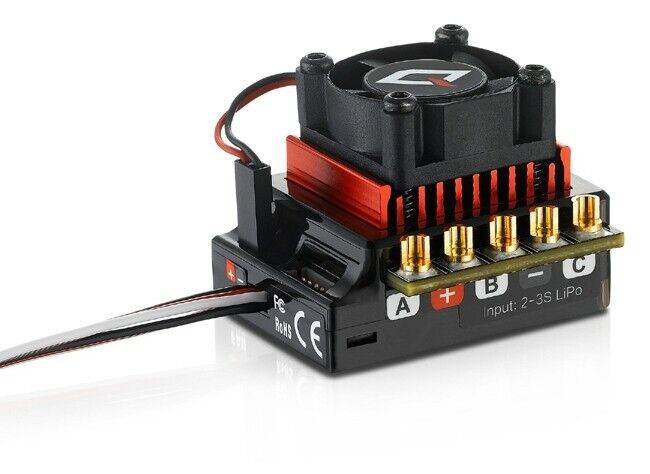

Hobbywing Quicrun Brushless 120A ESC - 10BL120-G2

Introducing the new 10BL120 G2 Brushless ESC Speed Controller from HOBBYWING, combining outstanding quality and durability with user friendly setup. Perfect for 10th scale setups, this ESC delivers performance enhancements and ease of use.

Upgraded BEC and Driver:
Continuous output current increased from 3A to 4A.
Maximum current of 7A.
Adjustable output voltage (6V/7.4V) for high-voltage servos, providing greater control.

Advanced Boost/Turbo Timing Technology:
Adjustable electronic timing.
Turbo and Boost features for fine-tuning power delivery.
Up to 32 degrees of electronic timing.

Important Note:
Boost and Turbo timing features should not be used with a 3S battery to prevent damage.

Robust Protection and Performance:
Built with top-tier hardware and proven software.
Multi-level protection for enhanced performance and durability.

Versatile Programming Options:
Supports multiple programming and tuning methods.
Compatible with the Multifunction LCD Programming Box Pro, Multifunction LCD Programming Box (Non-pro), LED Programming Box, and onboard button/LED tuning.

Adjustable Motor Rotation:
Motor rotation can be set to CW (clockwise) or CCW (counterclockwise) to fit different chassis setups.

Upgrade your RC experience with the 10BL120 G2 — the pinnacle of reliability, innovation, and performance for hobbyists.

Specifications

Product Name:
QUICRUN WP 10BL120 G2

Product Number:
30125002

Type:
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: No

Specifications:
Continuous/Peak Current: 120A/760A
Input Voltage: 2-3S LiPo
BEC Output: Switch Mode 6V/7.4V @ 4A

Wires & Connectors:
Input Wires: Black-12AWG-200mm1, Red-12AWG-200mm1
Output Wires: Blue-12AWG-200mm1, Yellow-12AWG-200mm1, Orange-12AWG-200mm*1
Input Connectors: None
Output Connectors: None

ESC Programming via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD Pro Program Box: Supported
OTA Programmer: Not Supported
Program Port: Separate Program Port

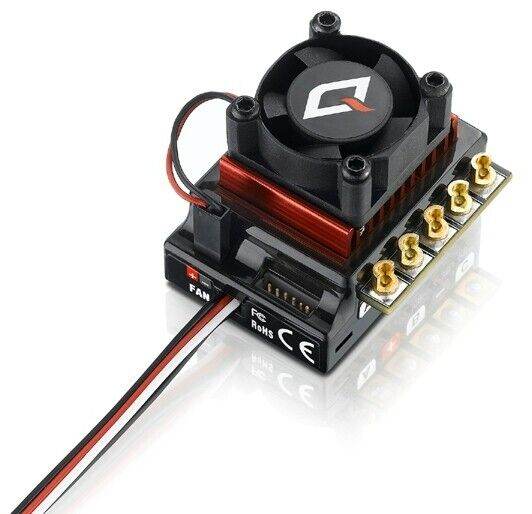

Fan:
Size: 25x25x10mm
Output Voltage: 5-8.4V
Input Connectors: Powered by BEC

Firmware:
Firmware Upgrade: Not Supported

Size & Weight:
Size: 43x36.8x32.3mm
Weight: 101.5g (including wires & connectors)

Applications:
Motors: Sensorless / Sensored Brushless Motor
Vehicles: 1/10th Touring Cars/Buggies/Drift Cars
KV Rating/T Count: 2S LiPo ≥ 4.5T, 3S LiPo ≥ 10.5T, 3650 Size Motor

Setup Tip: Start with 0° boost, 10° turbo, punch level 5. Check temps after 5 laps—add timing in 2-degree steps to find sweet spot.
