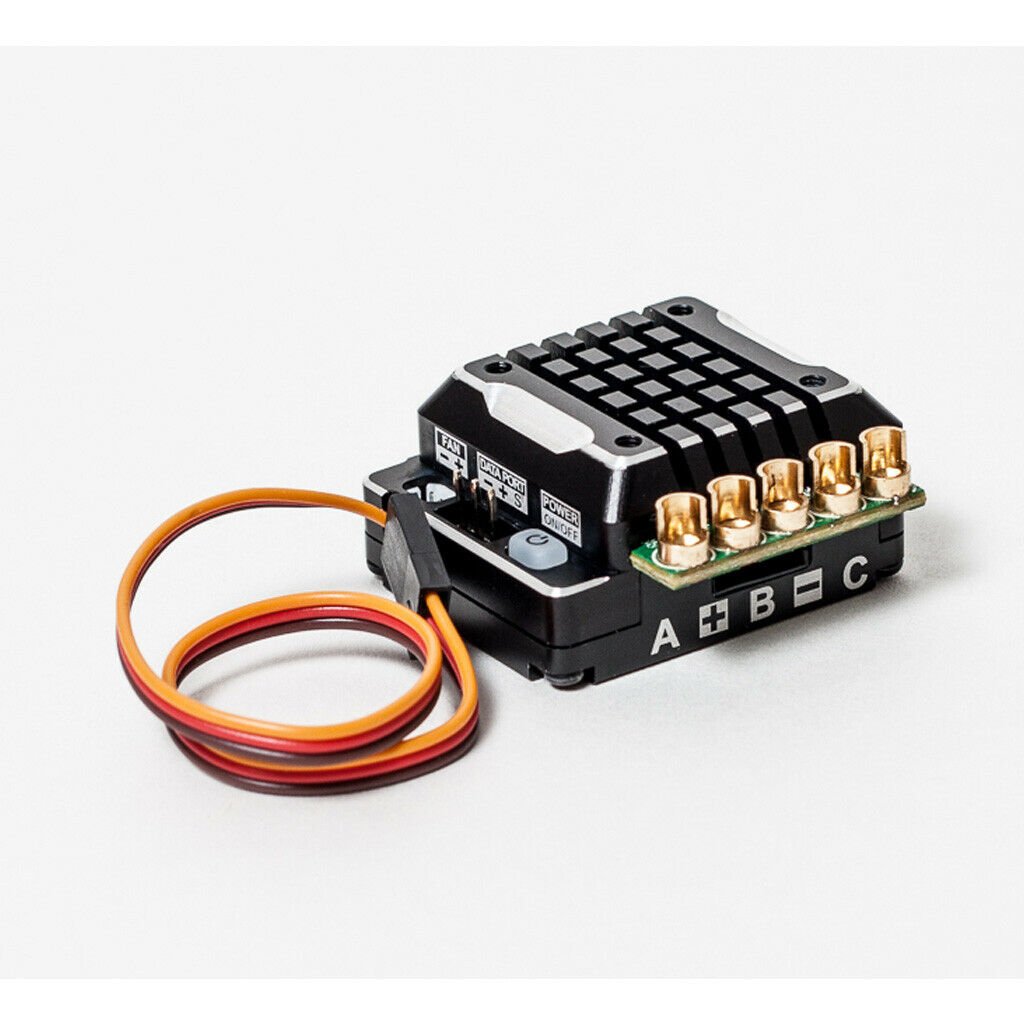

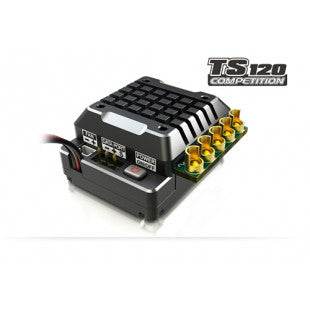

Sky RC Toro TS120, 120A Brushless Speed Controller, ESC
This is Toro TS 120A ESC for 1/10th Scale Car. Designed for the use with 2S to 3S LiPo battery packs, has a 3.5T motor limit and features a 6V/3A BEC system.
Features:
For: 1/10 and 1/12 On Road and Off Road, 1/10 and 1/8 Crawlers.

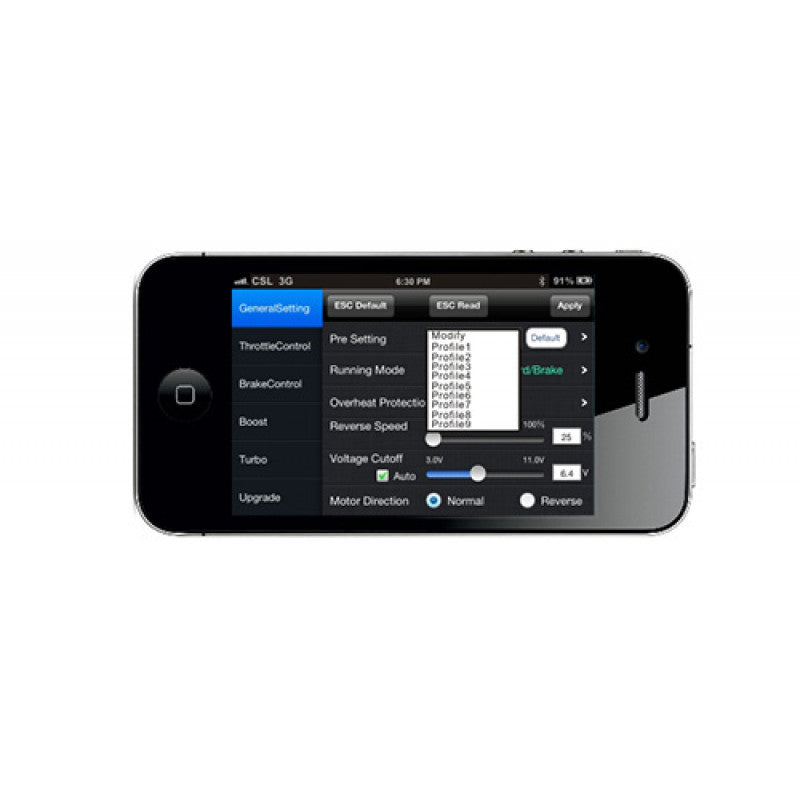

The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Safety Features: Low voltage protection; Motor and ESC overheat protection; Signal lost protection.
Firmware Upgradable: The firmware can be updated by connecting the ESC with PC or smart phone.

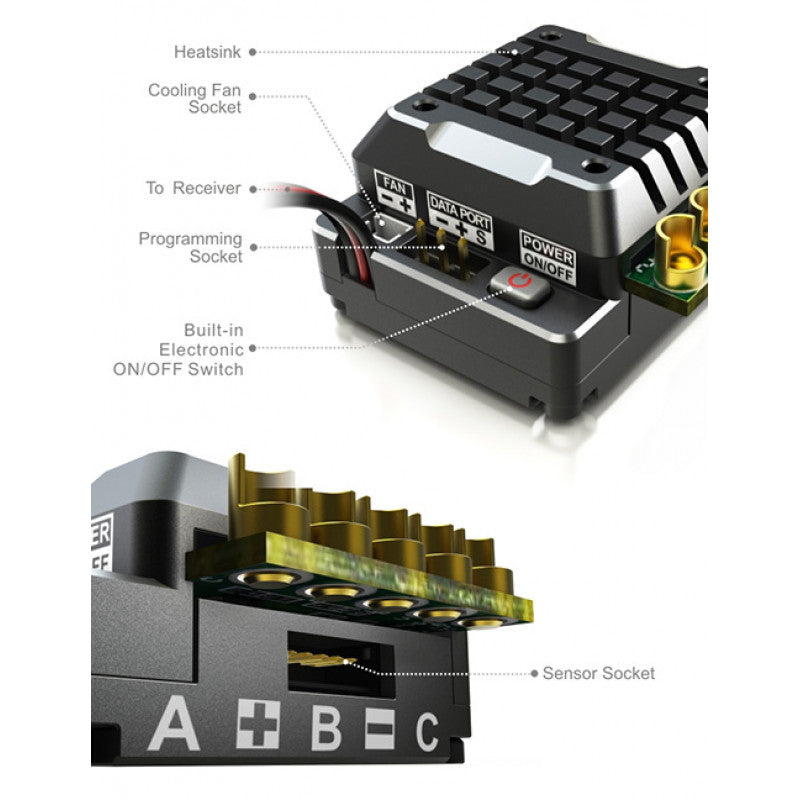

Programming Method: It can be programmed by PC connected with:
1. PROGBOX(SK-300046)
2. Smart phone via Wi-Fi Module(SK-600075)
3. SKYLINK(SK-600013)

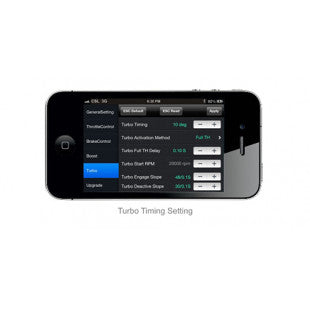

Advanced Timing System: Users could set the turbo and boost timing which can improve the motor RPM to get its best performance.

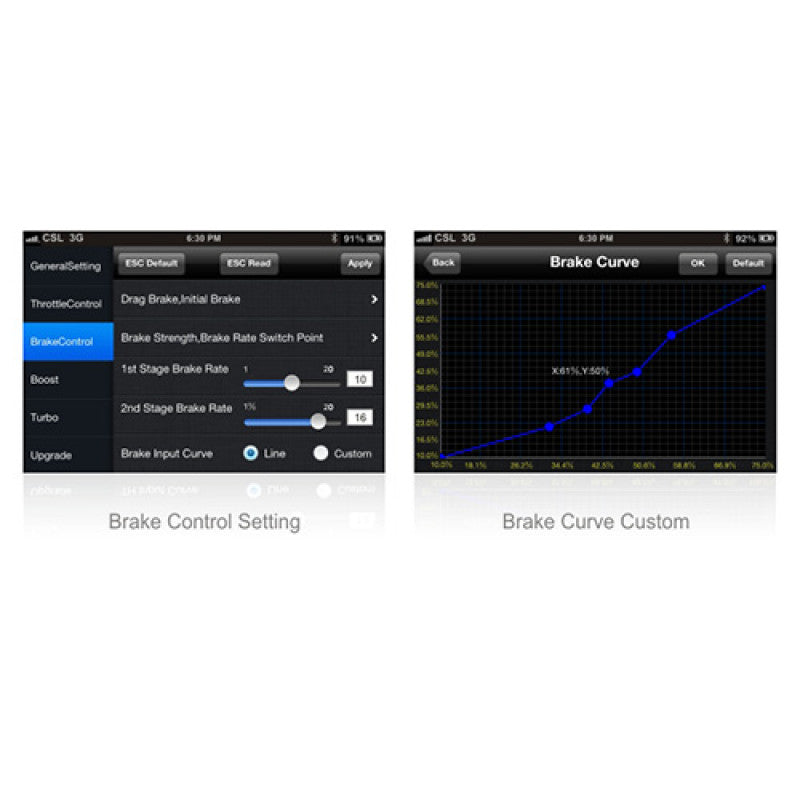

Well-performed Throttle and Brake Control Function: Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves, and different customers' request for Line and power all can be met.
Specification:
- Colour: Black

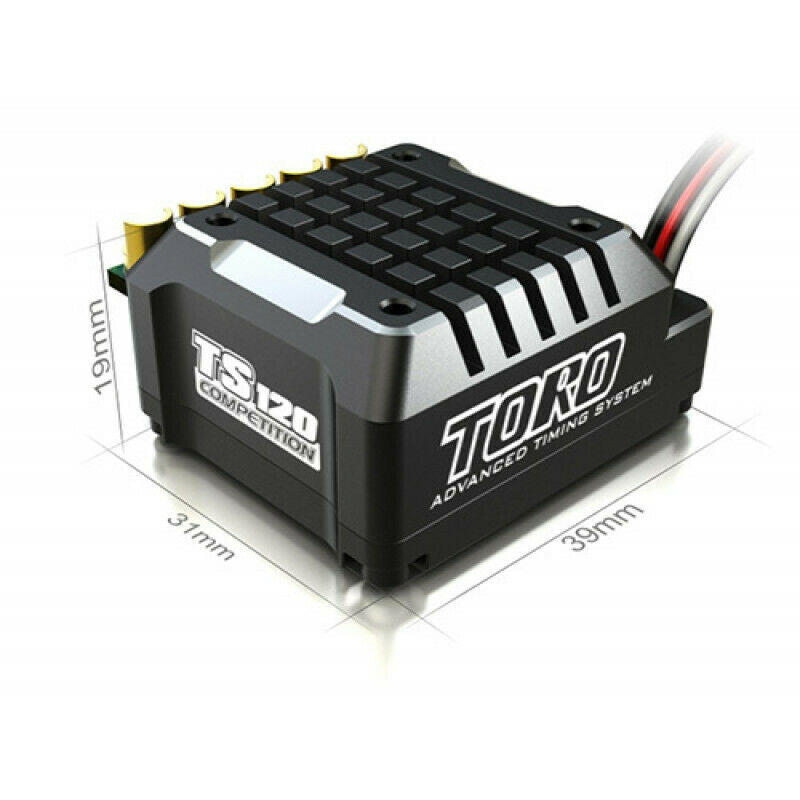

- Size: 39x31x19mm
- Weight: 45g (without wire)
- Constant/Burst Current : 120A/760A
- Motor Compatible: Brushless Sensor & Sensorless ESC
- Car Compatible: 1/10 and 1/12 On Road and Off Road, 1/10 and 1/8 Crawlers
- Motor Limits: 5-6S NiMH or 2S LiPO--≥3.5T(1/10 On Road), ≥5.5T(1/10 Off Road), 8-9S NiMH or 3S LiPO--≥5.5T(1/10 On Road),≥8.5T(1/10 Off Road)
- Resistance: 0.0003ohm
- Battery Cell Count: 4-9S NIMH or 2-3S LiPO
- BEC Output: 6V@3A

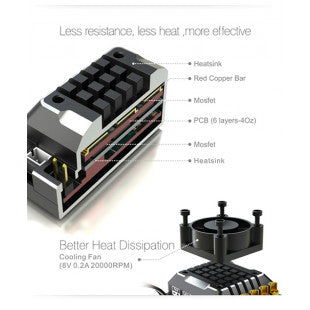

- FAN: 8V@0.2A , MAX 12.6V
Includes:
SKYRC TORO TS120A Pro-Comp Aluminium Brushless ESC Black For 1/10 1/8 RC Car #SK-300062-02 (1 set)
