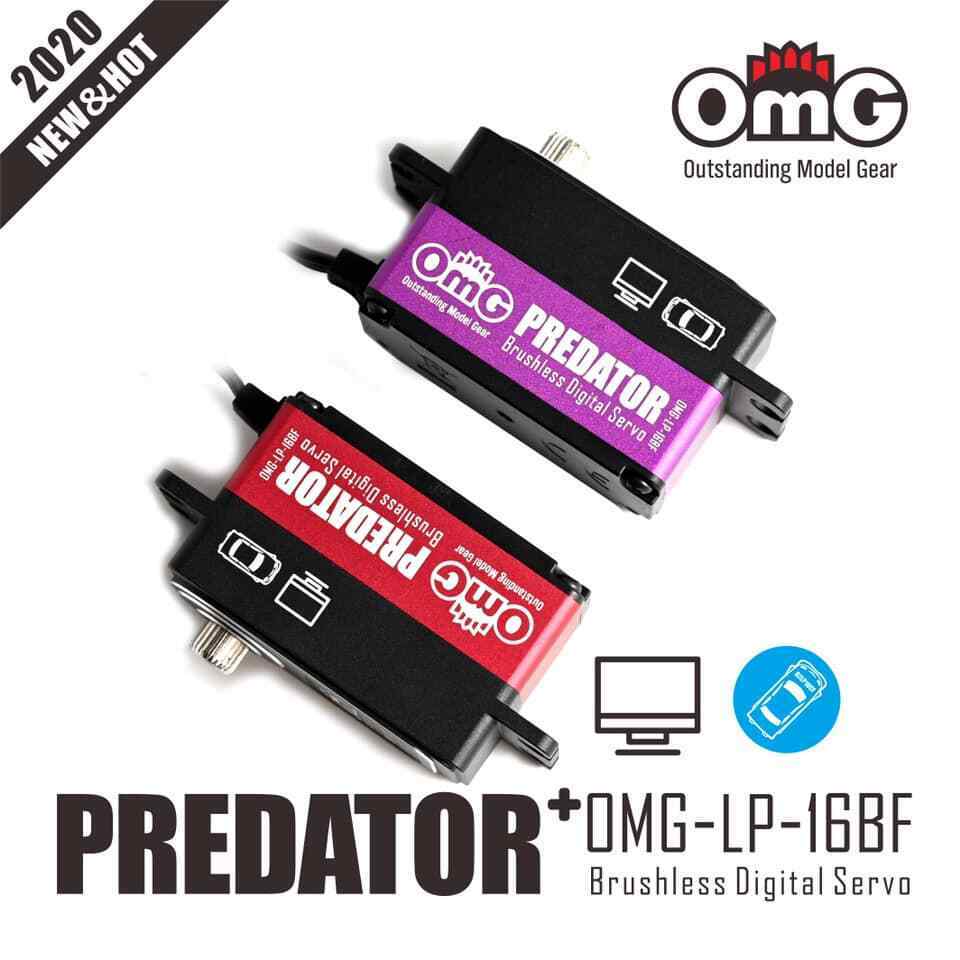

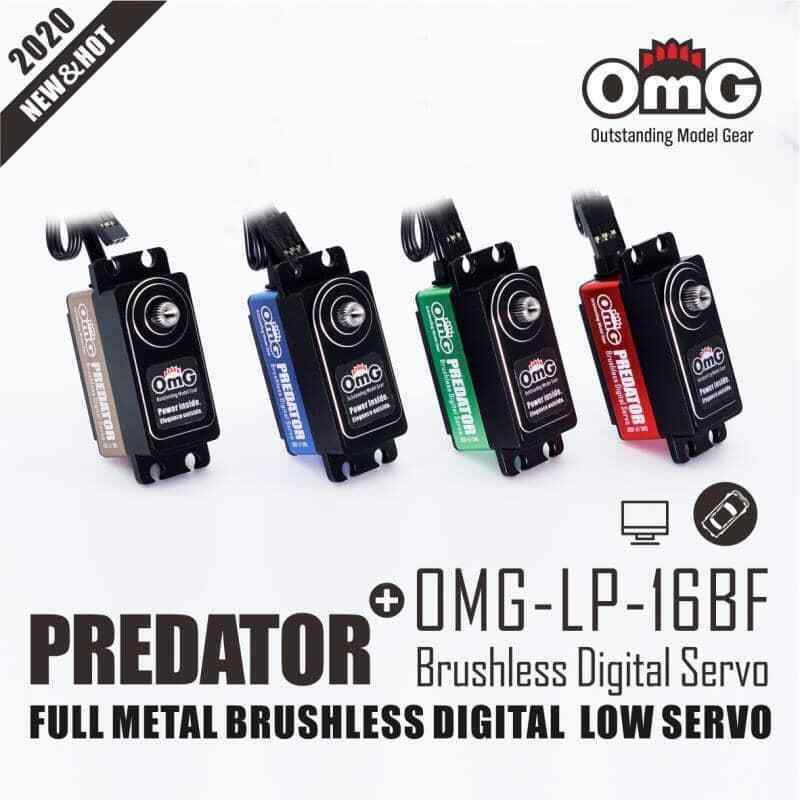

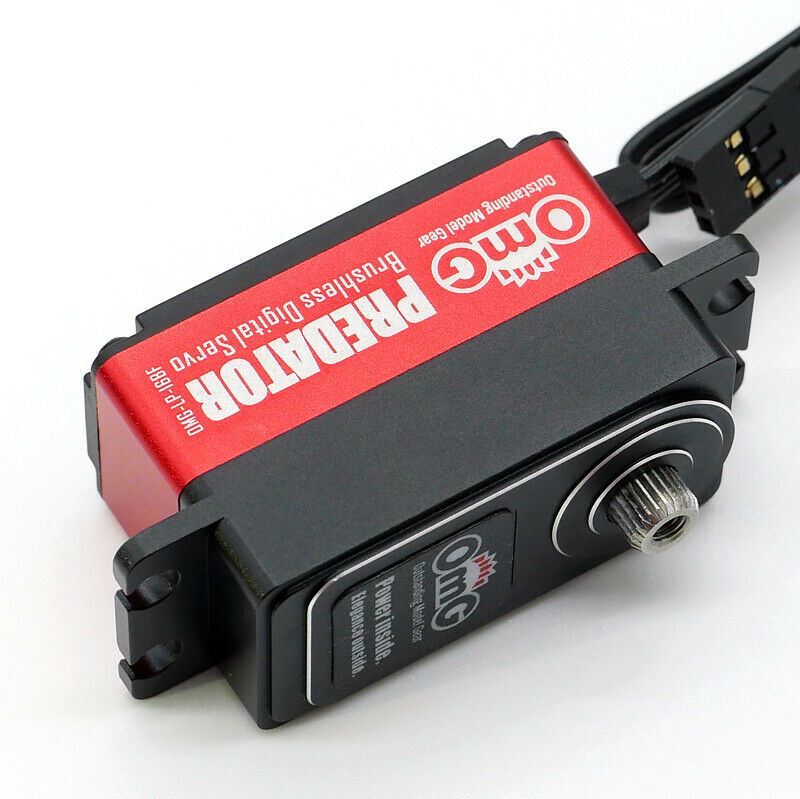

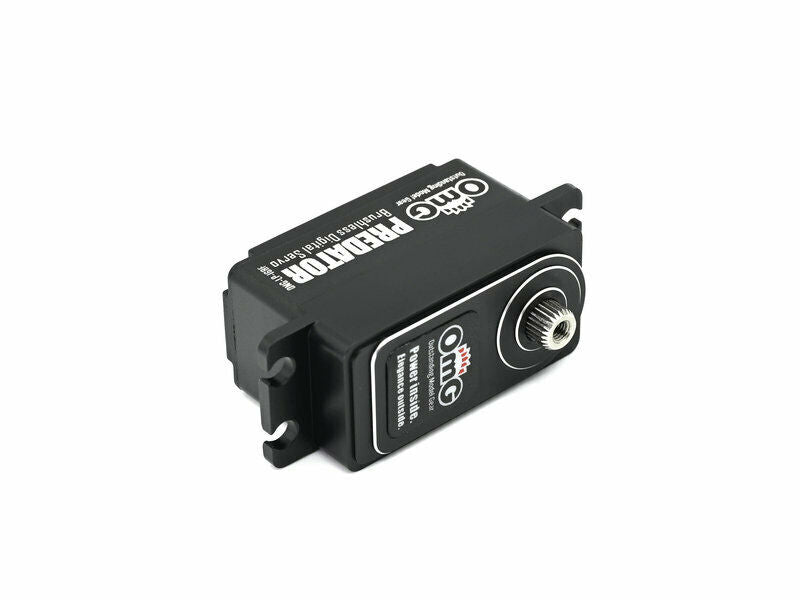

OMG Predator Low Profile Brushless Digital Steering Servo, 25T
OMG are well known for bringing us some of the best & most reliable steering servos on the market.
Check The Specs:
- Housing: CNC cover all-metal, the metal shell, the lower cover of plastic
- Gears: stainless steel, 25T
- Motor: brushless motor
- Scheduling: Scheduling may be the computer through a USB port
- Working voltage: 4.8-8.4V
- Fastest speed: 6.0V-0.075sec/60°
7.4V-0.068sec/60°
8.4V-0.062sec/60°
- Locked-rotor torque: 6.0V-9.7kg-cm/(135oz- in)
7.4V-11kg-cm/(153oz-in)
8.4V-12.2kg-cm/(169oz-in)
- Output gear: 25T

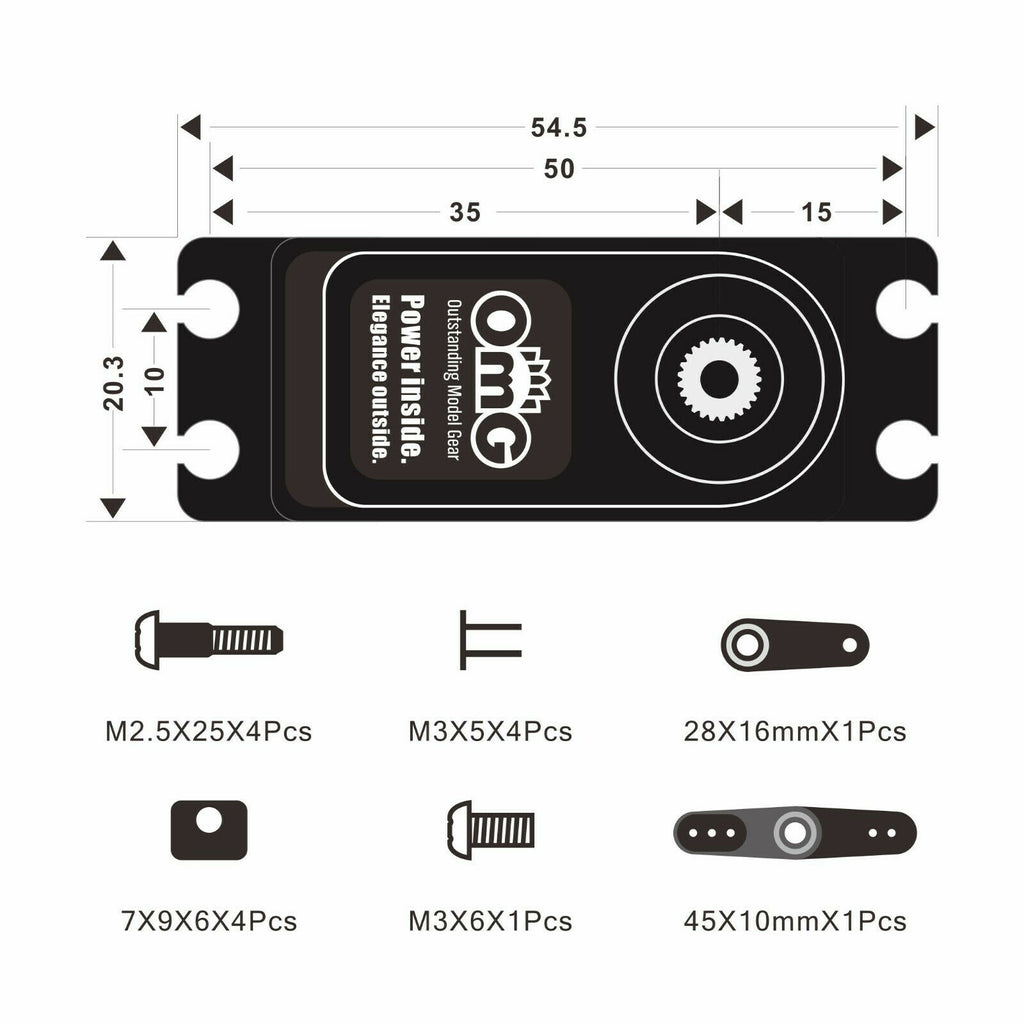

- Product size: 41x20.5x26 mm
- Product weight: 53g
- Operating stroke: 180±10°( 500-2500μsec)
- Rotation direction: 180°(1000-2000μsec)
- Angle limit: 220
- Neutral point: 1520μsec
- Maximum stroke: ≈180°(500-2500μsec)
- Pulse width range: 500-2500μsec
- Dead drive pulse width: 2μsec
- Wire length: JR180 mm
- Wire model: #22PVC
